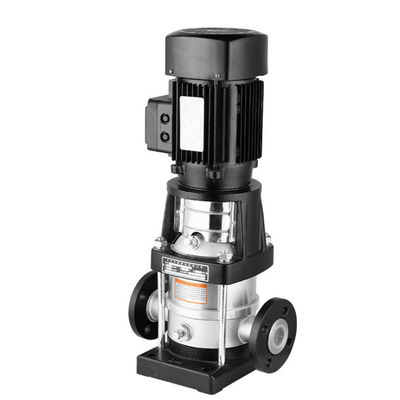

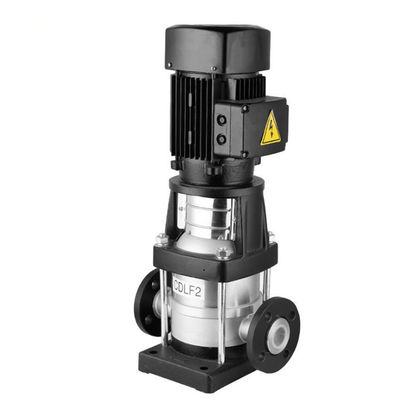

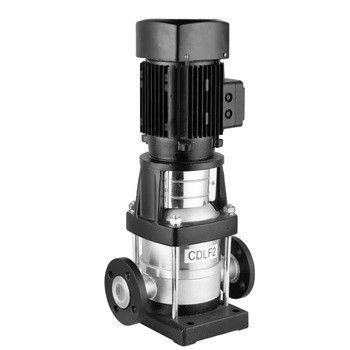

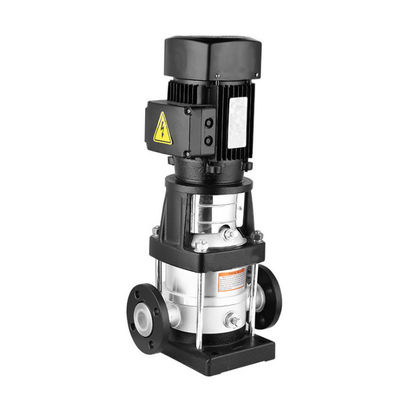

CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump

CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump

    • CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump
    • CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump
    • CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump
    • CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump
  • CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: ZY
    Model Number: CDL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $50-$5000
    Packaging Details: wooden box
    Delivery Time: 7-30WD
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000set/month
    Contact Now
    Detailed Product Description
    Model Number: CDL Structure: Multi-stage Pump
    Usage: Water Pump Application: Water Pump
    Power: Electric Fuel: Electric
    Pressure: Low Pressure Theory: Centrifugal Pump
    Material: Stainless-steel Keywords: Multistage Water Pump
    Impeller: Yes Warranty: 1 Year
    Voltage: 380V

    CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump

    1. Feature:Popular Type Vertical Multistage Centrifugal Pump

    CDL/CDLF sereis vertical multistage centrifugal pump are multi-functional pumps.
    It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.


    2. Applicaton Area:
    Water Supplier: boosting of main pipeline, boosting in high-rise buildings,
    Industrial boosting: Process flow water system, cleaning system, high-pressure washing system,
    fire fighting system.
    Industrial liquid conveying: Cooling and air-conditioning, system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
    Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
    Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.



    3. Advantages
    1).Directly coupled, vibration proof and low noise.
    2).Same diameter of inlet and outlet .
    3).C&U bearing ,which is the most famous brand in China.
    4).Circulating flow cooling ensure mechnical seal long life .
    5).Small foundation required that will saving construction investment by 40-60%.
    6).Excellent seal that is no leakage

    4. Specifications:
    1) Stage: 2-13
    2) Medium temperature: ≤100°C
    3) Pressure: ≤1.6MPa Packing: Carton / wooden case

    5. Working Condition:
    1). GDL pump has capacity to delivery pure water or liquid with same physical and chemical character
    2). Medium temperature: -15°c-+120°c
    3). Working pressure: max pressure<2.5MPa, (System pressure=inlet pressure+pump operating pressure when valve closed<2.5MPa)
    4). Ambient termperature should lower than 40°c, the competitable humidity should less than 95%
    5). When convery corrosion and heat medium, please advise with order, in convenient to adopt special material to meet with usage.

    Model
    CDL/CDLF
    Inlet and Outlet Size
    1", 1.5", 2", 3" , 4", 5", 6"
    Flow
    2~54 m3/h
    Head
    24~180 m
    Max. Temperature
    <120℃
    Rotating Speed
    2900 rpm / 3500rpm



    CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump

    CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water PumpCDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump









    CDL Home Pipeline Booster Pump Stainless Steel Vertical Multistage Water Pump
