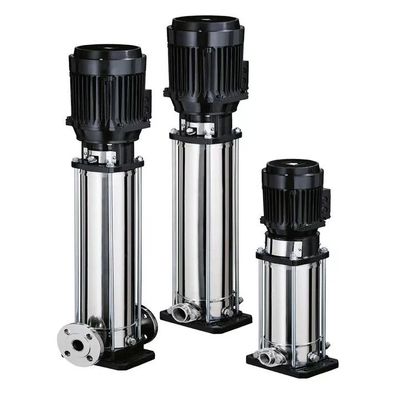

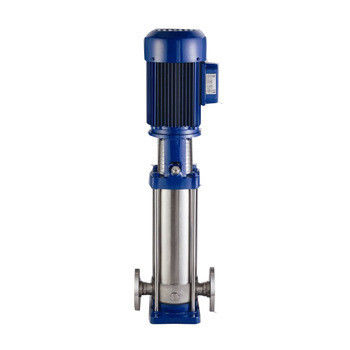

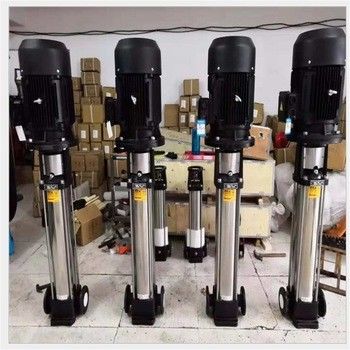

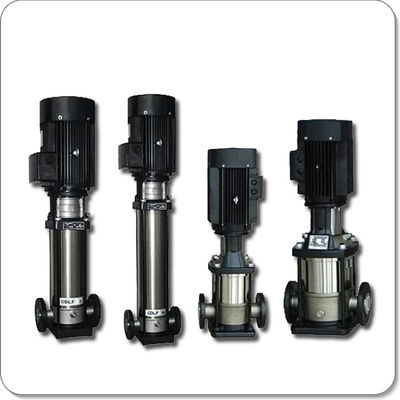

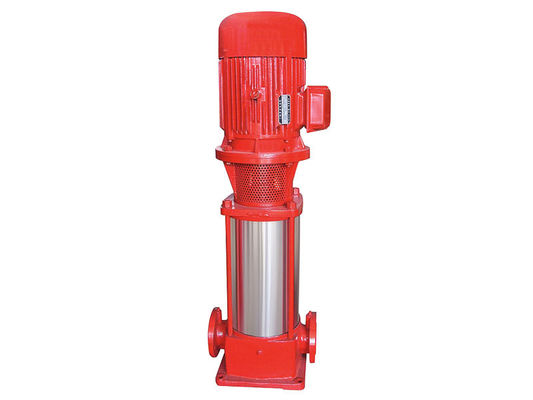

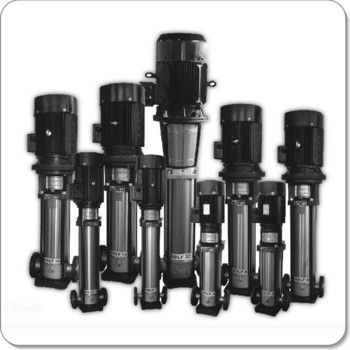

CDL Light Vertical Multistage Centrifugal pump

CDL Light Vertical Multistage Centrifugal pump

    • CDL Light Vertical Multistage Centrifugal pump
    • CDL Light Vertical Multistage Centrifugal pump
    • CDL Light Vertical Multistage Centrifugal pump
    • CDL Light Vertical Multistage Centrifugal pump
    • CDL Light Vertical Multistage Centrifugal pump
    • CDL Light Vertical Multistage Centrifugal pump
  • CDL Light Vertical Multistage Centrifugal pump

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: ZY
    Model Number: CDL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $50-$5000
    Packaging Details: wooden box
    Delivery Time: 7-30WD
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000set/month
    Contact Now
    Detailed Product Description
    Model Number: CDL Structure: Multi-stage Pump
    Usage: Water Pump Application: Water Pump
    Power: Electric Fuel: Electric
    Pressure: Low Pressure Theory: Centrifugal Pump
    Material: Stainless-steel Keywords: Multistage Water Pump
    Impeller: Yes Warranty: 1 Year
    Voltage: 380V

    CDL Light Vertical Multistage Centrifugal pump

    CDL Light Vertical Multistage Centrifugal pump

    APPLICATION
    CDL/CDLF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, While CDLF is suitable for slightly corrosive liquid.
    Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
    Industrial boosting: Process flow water system,cleaning system, high-pressure washing system, fire fighting system Industrial liquid conveying:Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali
    Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, swimming pool, separator Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

    Operation conditions
    Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
    Liquid temperature:
    Normal temperature type:-15℃~+70℃,
    Hot water type:+70℃~+120℃
    Ambient temperature :up to +40℃
    Altitude :up to 1000m

    Pump
    CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump,which is driven by a standard electric motor.The motor output shaft directly connects with the pump shaft through a coupling.The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts.The inlet and outlet are located at the pump bottom at the same plane.This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

    Electric motor
    Full-enclosed air-blast two-pole standed motor
    Protection class:IP55
    Insulation class:F
    Standard voltage, 50HZ:1x220-230/240V
    3x200-220/346-380V
    3x220-240/380-415V
    3x380-415V
    60HZ:3×200-230/346-400V
    3×220-255/380-440V
    3×220-227/380-480V



    Product Power: 0.37-18.5KW



    Model Motor Power Flow Head Speed
    Kw HP m3/h m rpm
    1.1 CDL1
    CDL1-2 0.37 0.5 1 11.5 2900
    CDL1-3 0.37 0.5 1 17 2900
    CDL1-4 0.37 0.5 1 22.5 2900
    CDL1-5 0.37 0.5 1 28 2900
    CDL1-6 0.37 0.5 1 33.5 2900
    CDL1-7 0.37 0.5 1 39 2900
    CDL1-8 0.55 0.75 1 45 2900
    CDL1-9 0.55 0.75 1 51 2900
    CDL1-10 0.55 0.75 1 57 2900
    CDL1-11 0.55 0.75 1 61 2900
    CDL1-12 0.75 1 1 67 2900
    CDL1-13 0.75 1 1 73 2900
    CDL1-14 0.75 1 1 78 2900
    CDL1-15 0.75 1 1 84 2900
    CDL1-17 1.1 1.5 1 95 2900
    CDL1-19 1.1 1.5 1 106 2900
    CDL1-21 1.1 1.5 1 117 2900
    CDL1-23 1.1 1.5 1 128 2900
    CDL1-25 1.5 2 1 139 2900
    CDL1-27 1.5 2 1 150 2900
    CDL1-30 1.5 2 1 166 2900
    CDL1-33 2.2 3 1 183 2900
    CDL1-36 2.2 3 1 200 2900
    1.2 CDL2
    CDL2-2 0.37 0.5 2 15 2900
    CDL2-3 0.37 0.5 2 22 2900
    CDL2-4 0.55 0.75 2 30 2900
    CDL2-5 0.55 0.75 2 37 2900
    CDL2-6 0.75 1 2 45 2900
    CDL2-7 0.75 1 2 52 2900
    CDL2-9 1.1 1.5 2 67 2900
    CDL2-11 1.1 1.5 2 82 2900
    CDL2-13 1.5 2 2 98 2900
    CDL2-15 1.5 2 2 112 2900
    CDL2-16 1.5 2 2 120 2900
    CDL2-17 2.2 3 2 128 2900
    CDL2-18 2.2 3 2 136 2900
    CDL2-19 2.2 3 2 145 2900
    CDL2-20 2.2 3 2 155 2900
    CDL2-22 2.2 3 2 165 2900
    CDL2-23 3 4 2 176 2900
    CDL2-24 3 4 2 188 2900
    CDL2-26 3 4 2 198 2900
    1.3 CDL3
    CDL3-2 0.37 0.5 3 9 2900
    CDL3-3 0.37 0.5 3 14 2900
    CDL3-4 0.37 0.5 3 19 2900
    CDL3-5 0.37 0.5 3 23 2900
    CDL3-6 0.55 0.75 3 28 2900
    CDL3-7 0.55 0.75 3 32 2900
    CDL3-8 0.75 1 3 37 2900
    CDL3-9 0.75 1 3 42 2900
    CDL3-10 0.75 1 3 47 2900
    CDL3-11 1.1 1.5 3 51 2900
    CDL3-12 1.1 1.5 3 55 2900
    CDL3-13 1.1 1.5 3 60 2900
    CDL3-15 1.1 1.5 3 69 2900
    CDL3-17 1.5 2 3 79 2900
    CDL3-19 1.5 2 3 88 2900
    CDL3-21 2.2 3 3 98 2900
    CDL3-23 2.2 3 3 107 2900
    CDL3-25 2.2 3 3 116 2900
    CDL3-27 2.2 3 3 124 2900
    CDL3-29 2.2 3 3 133 2900
    CDL3-31 3 3 3 142 2900
    CDL3-33 3 3 3 151 2900
    CDL3-36 3 3 3 168 2900
    1.4 CDL4
    CDL4-2 0.37 0.5 4 15 2900
    CDL4-3 0.55 0.75 4 24 2900
    CDL4-4 0.75 1 4 32 2900
    CDL4-5 1.1 1.5 4 40 2900
    CDL4-6 1.1 1.5 4 48 2900
    CDL4-7 1.5 2 4 56 2900
    CDL4-8 1.5 2 4 64 2900
    CDL4-10 2.2 3 4 81 2900
    CDL4-12 2.2 3 4 95 2900
    CDL4-13 2.2 3 4 100 2900
    CDL4-14 3 4 4 112 2900
    CDL4-15 3 4 4 120 2900
    CDL4-16 3 4 4 129 2900
    CDL4-17 3 4 4 136 2900
    CDL4-18 4 5.5 4 148 2900
    CDL4-19 4 5.5 4 153 2900
    CDL4-20 4 5.5 4 162 2900
    CDL4-21 4 5.5 4 169 2900
    CDL4-22 4 5.5 4 178 2900
    1.5 CDL8
    CDL8-2 0.75 1 8 18 2900
    CDL8-3 1.1 1.5 8 27 2900
    CDL8-4 1.5 2 8 36 2900
    CDL8-5 2.2 3 8 45 2900
    CDL8-6 2.2 3 8 54 2900
    CDL8-7 3 4 8 65 2900
    CDL8-8 3 4 8 73 2900
    CDL8-9 3 4 8 82 2900
    CDL8-10 4 5.5 8 92 2900
    CDL8-11 4 5.5 8 102 2900
    CDL8-12 4 5.5 8 111 2900
    CDL8-13 5.5 7.5 8 121 2900
    CDL8-14 5.5 7.5 8 130 2900
    CDL8-15 5.5 7.5 8 139 2900
    CDL8-16 5.5 7.5 8 148 2900
    CDL8-17 7.5 10 8 158 2900
    CDL8-18 7.5 10 8 167 2900
    CDL8-19 7.5 10 8 177 2900
    CDL8-20 7.5 10 8 186 2900
    1.6 CDL12
    CDL12-2 1.5 2 12 20 2900
    CDL12-3 2.2 3 12 30 2900
    CDL12-4 3 4 12 40 2900
    CDL12-5 3 4 12 50 2900
    CDL12-6 4 5.5 12 60 2900
    CDL12-7 5.5 7.5 12 70 2900
    CDL12-8 5.5 7.5 12 80 2900
    CDL12-9 5.5 7.5 12 91 2900
    CDL12-10 7.5 10 12 101 2900
    CDL12-12 7.5 10 12 121 2900
    CDL12-14 11 15 12 141 2900
    CDL12-16 11 15 12 162 2900
    CDL12-18 11 15 12 183 2900
    1.7 CDL16
    CDL16-2 2.2 3 16 22 2900
    CDL16-3 3 4 16 34 2900
    CDL16-4 4 5.5 16 46 2900
    CDL16-5 5.5 7.5 16 58 2900
    CDL16-6 5.5 7.5 16 70 2900
    CDL16-7 7.5 10 16 82 2900
    CDL16-8 7.5 10 16 94 2900
    CDL16-9 11 15 16 106 2900
    CDL16-10 11 15 16 118 2900
    CDL16-11 11 15 16 132 2900
    CDL16-12 11 15 16 141 2900
    CDL16-13 15 20 16 155 2900
    CDL16-14 15 20 16 166 2900
    CDL16-15 15 20 16 178 2900
    CDL16-16 15 20 16 189 2900
    1.8 CDL20
    CDL20-1 1.1 1.5 20 10 2900
    CDL20-2 2.2 3 20 23 2900
    CDL20-3 4 5.5 20 35 2900
    CDL20-4 5.5 7.5 20 47 2900
    CDL20-5 5.5 7.5 20 58 2900
    CDL20-6 7.5 10 20 70 2900
    CDL20-7 7.5 10 20 82 2900
    CDL20-8 11 15 20 94 2900
    CDL20-10 11 15 20 118 2900
    CDL20-12 15 20 20 142 2900
    CDL20-14 15 20 20 166 2900
    CDL20-17 18.5 25 20 202 2900
