Fire fighting water pump powered by diesel engine

Fire fighting water pump powered by diesel engine

    • Fire fighting water pump powered by diesel engine
    • Fire fighting water pump powered by diesel engine
    • Fire fighting water pump powered by diesel engine
    • Fire fighting water pump powered by diesel engine
    • Fire fighting water pump powered by diesel engine
  • Fire fighting water pump powered by diesel engine

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: ZY
    Model Number: GDL/CQDLF/D/TSWA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $1000-$20000
    Packaging Details: wooden box
    Delivery Time: 7-30WD
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000set/month
    Contact Now
    Detailed Product Description
    Model Number: PEDJ Structure: Multistage Pump
    Usage: Water Application: Fire Pump
    Power: Electric Fuel: Fire Pump
    Pressure: High Pressure Theory: Centrifugal Pump
    Speed: 1450rpm/2900rpm Shaft Sleeve: Cast Iron
    Motor Voltage:: 220V/380V/440V

    Fire fighting water pump powered by diesel engine

    Fire fighting water pump powered by diesel engine



    Fire Fighting Equipment Model FF200-120 FF350-120 FF500-120
    Color Fire Fighting Red Color
    Chasis Steel Base with 8hours integrated fuel tank for Diesel Engine
    Diesel Engine Model YD480D YD480D YD4100D
    HP 38 38 73
    Working RPM 3000 RPM 3000 RPM 3000 RPM
    Main Water Pump Model XA40/26 XA50/26 XA65/26
    Main Water Pump Inlet 2.5" 2.5" 3"
    Main Water Pump Outlet 1.5" 2" 2.5"
    Main Water Pump Seal Mechanical Seal Mechanical Seal Mechanical Seal
    Main Water Pump Flow 200 GPM 350 GPM 500 GPM
    Main Water Pump Pressure 120 PSI 120 PSI 120 PSI
    Coupling type Flexible (No clutch) Flexible (No clutch) Flexible (No clutch)
    Jockey Pump model Vertical Multistage Pump with electric motor
    Jockey Pump Flow 8 GPM 8 GPM 20 GPM
    Jockey Pump Pressure 120 PSI 120 PSI 120 PSI
    Jockey Pump Seal Mechanical Seal Mechanical Seal Mechanical Seal
    Jockey Pump Frequency 60 HZ 60 HZ 60 HZ
    Jockey Pump Voltage 110/220V 110/220V 440V
    Jockey Pump Phases 1 Phase 1 Phase 3 Phase
    Jockey Pump PSI activation point 90 PSI 90 PSI 90 PSI
    Main Diesel Pump PSI activation point 60 PSI 60 PSI 60 PSI



    Fire fighting water pump powered by diesel engine



    Fire fighting water pump powered by diesel engineFire fighting water pump powered by diesel engine



    Related Products

    SYSTEM TYPE 1----PEJ Fire Pump Set with Electric+Jockey Pump

    PEJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
    Available Flow Capacities 50-1500GPM.
    Availabel Head/Pressure 1-14bar.

    Fire fighting water pump powered by diesel engine

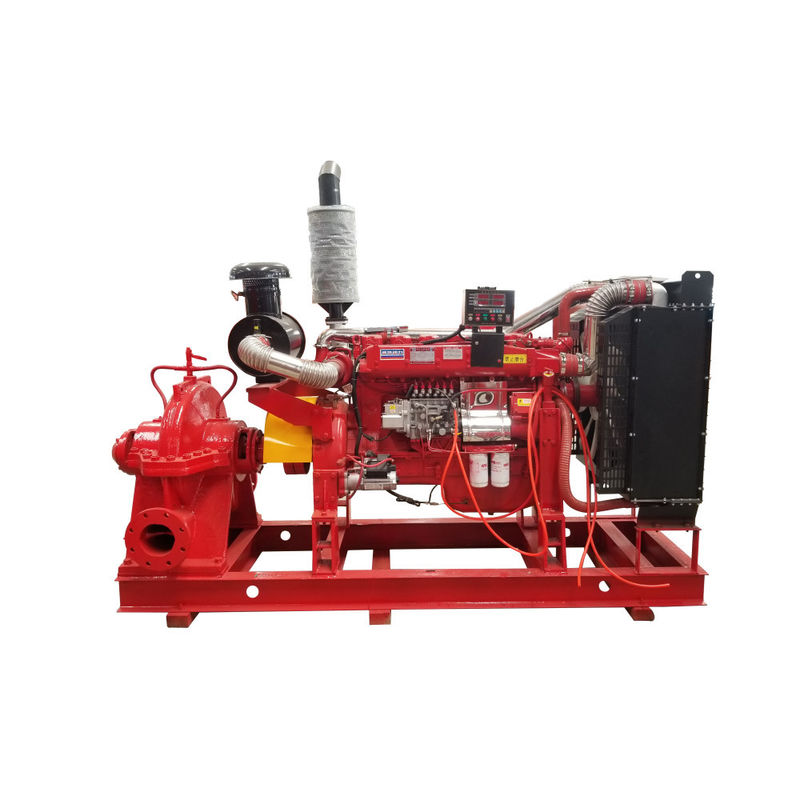

    SYSTEM TYPE 2--PDJ Fire Pump Set with Diesel+Jockey Pump

    PEJ Fire Pump Set consists of End Suction Diesel Pump, and Vertical Jockey Pump. Pumps are assembled with discharge line accessories as well as Control Panel.
    Available Flow Capacities 50-1500GPM.
    Availabel Head/Pressure 1-14bar.

    Fire fighting water pump powered by diesel engine

    SYSTEM TYPE 3-- PEDJV Fire Pump Set with Electric+Diesel+Jockey Pump+Pressure Vessel

    PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, Diesel Engine, and Vertical Jockey Pump. Pumps are assembled with Pressure Vessel, discharge line accessories as well as Control Panel.
    Available Flow Capacities 50-1500GPM.
    Availabel Head/Pressure 1-14bar.
    Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge, Base Frame, etc.
    Fire fighting water pump powered by diesel engine


    Control Panel Box

    Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both Manual & Automatic modes, as well as turns pumps drivers ON/OFF under specific conditions.
    The Fire Pump Package Controller detects signals through set of built in switches that reflect the system Pressure & Flow status enabling fire pump package drivers (Electrical /Diesel /Jockey) to operate in case of pressure in the system is lower than set point, as well as operating the Stand by driver due to power failure and/or substantial drop in pressure.
    Fire Pumps Series Controllers are pre-wired, tested before delivery and made ready for immediate usage.

    Fire fighting water pump powered by diesel engine
    Fire fighting water pump powered by diesel engine

    Fire Pump System Accessories
    Fire fighting water pump powered by diesel engine
    Packaging & Shipping
    Fire fighting water pump powered by diesel engine
