QY stainless steel submersible pump oil immersed submersible pump green color sliver color

QY stainless steel submersible pump oil immersed submersible pump green color sliver color

    • QY stainless steel submersible pump oil immersed submersible pump green color sliver color
    • QY stainless steel submersible pump oil immersed submersible pump green color sliver color
  • QY stainless steel submersible pump oil immersed submersible pump green color sliver color

    Product Details:

    Place of Origin: ZHEJIANG,CHINA
    Brand Name: ZY
    Certification: ISO9001
    Model Number: QY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 100-500usd
    Packaging Details: plywood FOR Fountain pump
    Delivery Time: 7days
    Payment Terms: T/T, Western Union
    Supply Ability: 50UNIT/MONTH
    Contact Now
    Detailed Product Description
    Material: Cast Iron Or SS 304 Voltage: 380v/415v/50hz
    Function: Fountain Color: Green And White

    Introduction

    QY stainless steel submersible pump oil immersed submersible pump 304 acid and alkali resistant irrigation large flow oil immersed pump



    The water pump is composed of impeller, guide vane (guide shell), water inlet node, water outlet and other parts. The impeller is fixed by conical sleeve or key. The submersible motor adopts water filled structure. The stator winding and iron core are directly immersed in water, mainly used for motor cooling and sliding bearing lubrication. The stator winding of the motor adopts water-resistant electromagnetic wire, which has good water resistance performance. The rotor is of squirrel cage structure. The upper end of the motor is provided with a water injection hole and an exhaust hole, and the lower end is provided with a water discharge hole. The lower part of the motor is equipped with a thrust bearing to bear the axial force of the pump and the dead weight of the rotor. The extended end of the rotor shaft is equipped with a rubber sand thrower and a sliding frame oil seal to form a sand prevention mechanism, which can effectively prevent sediment from entering the motor.



    The three-phase motor is divided into rolling bearing and sliding bearing. The sliding bearing adopts high-quality graphite sleeve and stainless steel thrust plate, which respectively bear the radial force and axial force of the electric pump when it works, with stable performance and reliable quality. The sealing ring and sand control cap constitute the sealing device of the motor.



    The main advantages are: reliable operation, durable, easy to use, high power, less faults, low maintenance costs. As long as the motor is filled with water, it can run normally.





    Application

    Due to its special structure and less pollution to water source, this series of electric pump is a kind of water lifting tool which runs in the water with one machine and pump. It can be widely used in farmland drainage and irrigation, sprinkler irrigation, well water lifting, domestic water intake, water supply and drainage system of industrial and civil buildings, water diversion in hilly areas and drainage in low-lying areas.



    3, Service conditions of QSP submersible pump



    The electric pump shall be able to work continuously under the following conditions:



    1. The medium temperature should not exceed + 25 ℃;



    2. The pH value of the medium is between 6.5 and 8.5;



    3. The volume ratio of solid impurities is not more than 0.1%, and the particle size is not more than 0.2mm;



    4. The power frequency is 50 Hz, the voltage is 380 V, and the voltage fluctuation range is 0.9-1.1 times of the rated value;



    5. The diving depth is not less than 0.5m.



    Installation and instructions







    Pictures

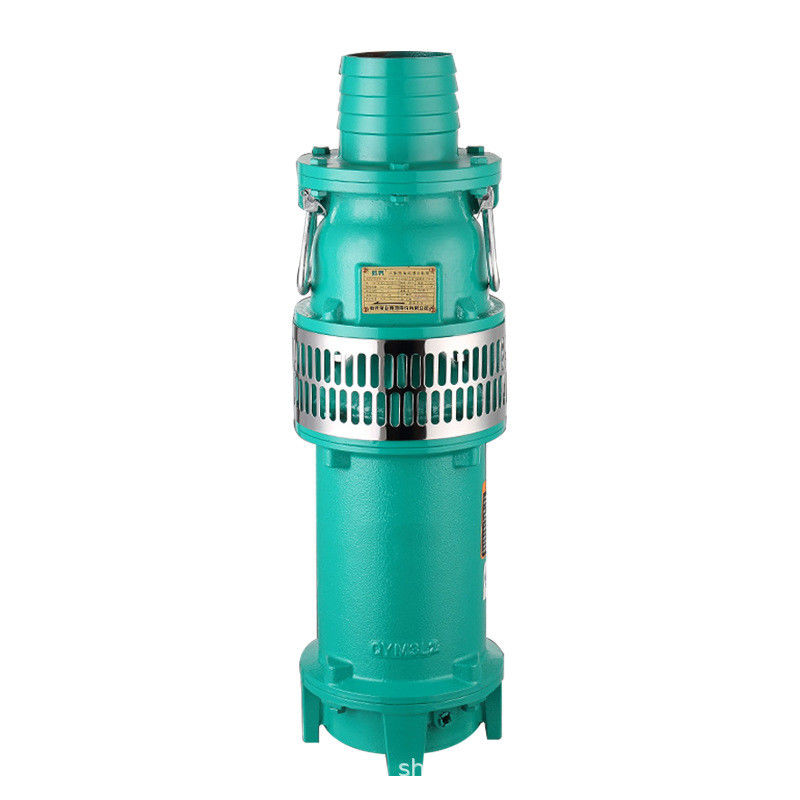

    Material on cast iron/SS304

    QY stainless steel submersible pump oil immersed submersible pump green color sliver color



    QY stainless steel submersible pump oil immersed submersible pump green color sliver color



    QY stainless steel submersible pump oil immersed submersible pump green color sliver color



    QY stainless steel submersible pump oil immersed submersible pump green color sliver color

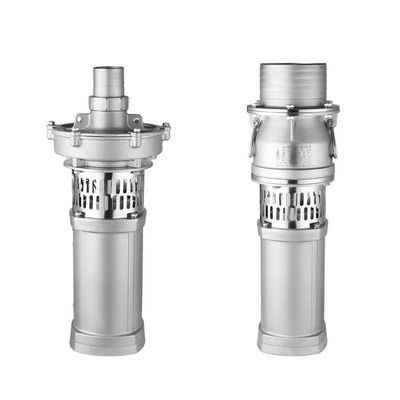

    material on SS 304



    QY stainless steel submersible pump oil immersed submersible pump green color sliver color



    Parameter

    Model

    Flow

    M3/h

    Head

    m

    Power

    Kw

    Current

    A

    Height of the pump

    mm

    Flange outer diameter

    mm

    Flange center distance

    mm

    Outlet diameter

    mm

    QSP15-10-0.75 15 10 0.75 2.6 450 150 130 50
    QSP10-10-0.55 10 10 0.55 2.2 450 150 130 50
    QSP10-14-0.75 10 14 0.75 2.6 450 150 130 50
    QSP15-7-0.55 15 7 0.55 2.2 450 150 130 50
    QSP15-14-1.1 15 14 1.1 3.2 520 156 135 50
    QSP40-6-1.1 40 6 1.1 3.2 520 156 135 80
    QSP25-9-1.1 25 9 1.1 3.2 520 156 135 65
    QSP25-12-1.5 25 12 1.5 4.2 520 156 135 65
    QSP40-9-1.5 40 9 1.5 4.2 520 156 135 80
    QSP15-25-2.2 15 26 2.2 5.7 580 150 130 50
    QSP25-17-2.2 25 17 2.2 5.7 580 150 130 65
    QSP40-12-2.2 40 12 2.2 5.7 580 150 130 65
    QSP65-7-2.2 65 7 2.2 5.7 580 150 130 90
    QSP15-34/2-3 15 34 3 7 650 156 135 50
    QSP10-54/3-3 10 54 3 7 680 150 130 50
    QSP25-25-3 25 25 3 7 580 150 130 65
    QSP20-30/2-3 20 30 3 7 650 156 134 65
    QSP40-16-3 40 16 3 7 580 168 145 65
    QSP50-13-3 50 13 3 7 580 168 145 90
    QSP80-7-3 80 7 3 7 580 168 145 90
    QSP65-10-3 65 10 3 7 580 168 145 90
    QSP100-6-3 100 6 3 7 580 168 145 90
    QSP10-72/4-4 10 72 4 10.2 720 150 130 50
    QSP40-21-4 40 21 4 10.2 630 168 145 65
    QSP20-40/2-4 20 40 4 10.2 730 168 145 65
    QSP30-30/2-4 30 30 4 10.2 730 168 145 65
    QSP65-13-4 65 13 4 10.2 630 168 145 90
    QSP80-12-4 80 12 4 10.2 630 168 145 90
    QSP100-9-4 100 9 4 10.2 630 168 145 90
    QSP40-28-5.5 40 28 5.5 13.4 720 168 145 90
    QSP65-20-5.5 65 20 5.5 13.4 720 168 150 90
    QSP65-18-5.5 65 18 5.5 13.4 720 168 150 90
    QSP100-12-5.5 100 12 5.5 13.4 720 200 172 125
    QSP50-26-5.5 50 26 5.5 13.4 780 168 145 90
    QSP80-15-5.5 80 15 5.5 13.4 720 168 150 90
    QSP120-10-5.5 120 10 5.5 13.4 720 200 172 125
    QSP220-5-5.5 220 5 5.5 13.4 720 200 180 150
    QSP20-54/3-5.5 20 54 5.5 13.4 870 168 145 65
    QSP30-40/3-5.5 30 40 5.5 13.4 780 168 145 90
    QSP40-30/2-5.5 40 30 5.5 13.4 780 168 145 90
    QSP65-25-7.5 65 25 7.5 18.6 740 168 150 90
    QSP100-15-7.5 100 15 7.5 18.6 740 200 172 125
    QSP100-17-7.5 100 17 7.5 18.6 740 200 172 125
    QSP250-8-7.5 250 8 7.5 18.6 740 200 180 150
