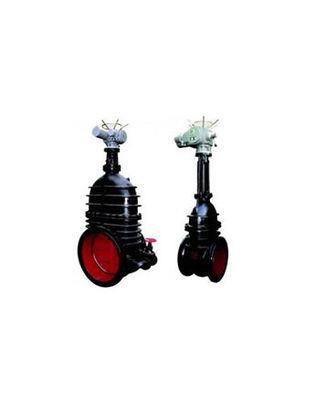

Z945T/W Electric Cast Iron Gate Valve

Z945T/W Electric Cast Iron Gate Valve

    • Z945T/W Electric Cast Iron Gate Valve
    • Z945T/W Electric Cast Iron Gate Valve
  • Z945T/W Electric Cast Iron Gate Valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: RTK
    Model Number: Z945T/Z945W

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: 200USD
    Packaging Details: plywood
    Delivery Time: 7
    Payment Terms: L/C, T/T
    Supply Ability: 10pcs/week
    Contact Now
    Detailed Product Description
    Media: Water Material: Castiron
    Structure: Globe

    Z945T/W Electric Cast Iron Nonrising Stem Wedge Gate Valve

    Product Performance Specification:

    Model PN Work Pressure/MPa Applicable Temperature/℃ Applicabel Medium
    Z945T-16 6 0.6 ≤100 Water
    Z945T-10 10 1.0 ≤100 Water, Steam
    Z945W-10 10 1.0 ≤100 Oil



    Main Parts for Material:

    Model Material
    Body, Bonnet, Disc Stem Seal Face Packing
    Z945T-16 Grey Cast Iron Chrome Stainless Steel Copper Alloy Asbestos
    Z945T-10 Grey Cast Iron Carbon Steel Brass Oil-immersed asbestos packing
    Z945W-10 Grey Cast Iron Carbon Steel Grey Cast Iron Oil-immersed asbestos packing



    Product Connection and Construction Size:

    DN L D D1 D2 z×Φd H Weight/kg
    1400 1080 1630 1560 1510 36×Φ37 3440 44



    DN L D D1 D2 b H L1 L2 z×Φd D0 Weight/kg
    100 230 215 180 155 22 680 170 291 8×Φ18 200 102
    125 255 245 210 185 24 720 170 291 8×Φ18 200 110
    150 280 280 240 210 24 775 170 308 8×Φ23 200 123
    200 330 335 295 265 26 897 325 425 8×Φ23 200 210
    250 380 390 350 320 28 992 325 425 12×Φ23 250 252
    300 420 440 400 368 28 1080 325 460 12×Φ23 250 310
    350 450 500 460 428 30 1161 325 460 16×Φ23 250 380
    400 480 565 515 482 32 1357 408 530 16×Φ25 250 585
    450 510 615 565 532 32 1430 408 530 20×Φ25 360 720
    500 540 670 620 585 34 1557 408 530 20×Φ25 360 815
    600 600 780 725 685 36 1840 408 545 20×Φ30 360 1090
