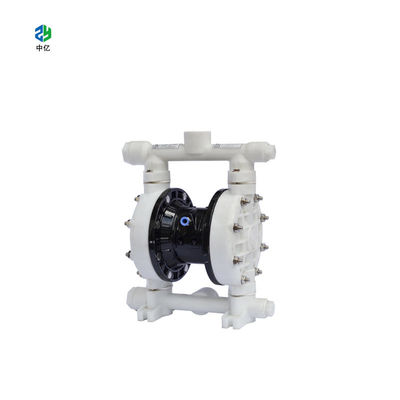

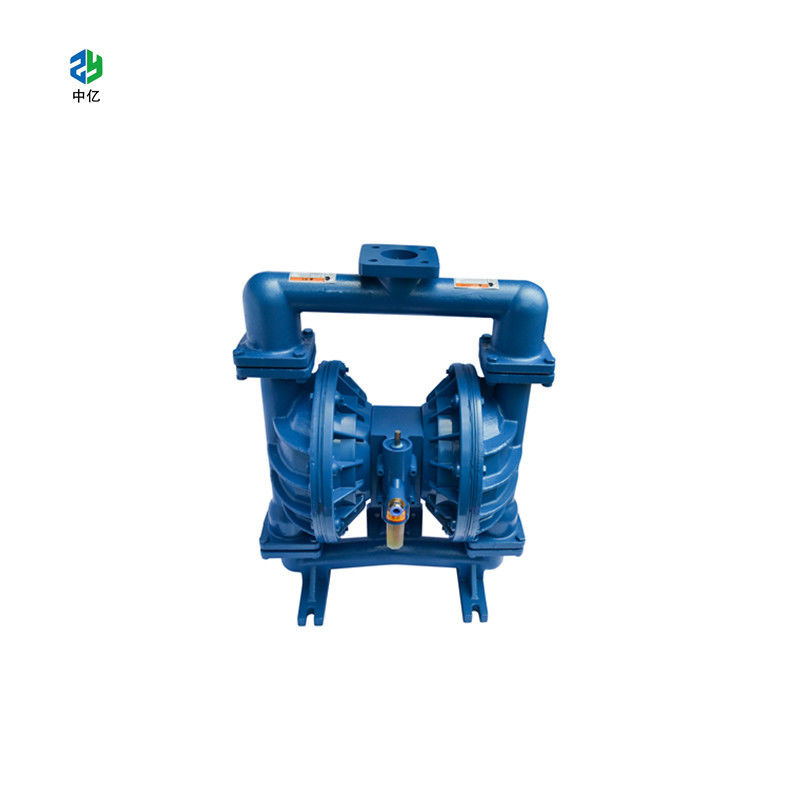

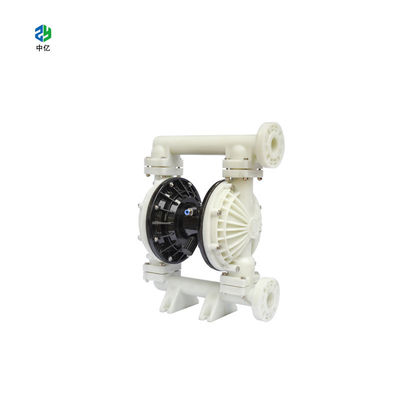

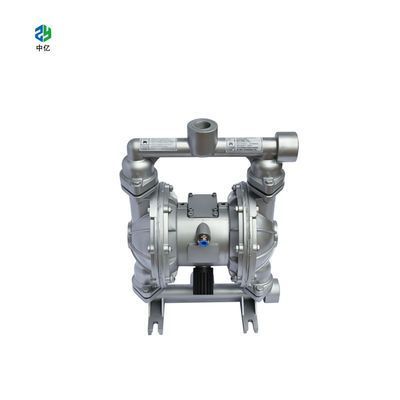

Pneumatic Driven diaphragm pump/Double Diaphragm Pump(QBY) High Suction Head

Pneumatic Driven diaphragm pump/Double Diaphragm Pump(QBY) High Suction Head

Brand Name:	ZY
Model Number:	QBY
MOQ:	2
Price:	150-1000USD
Payment Terms:	T/T, , Western Union
Supply Ability:	10pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Model Number:

QBK/QBY

Usage:

Air Pump

Structure:

Diaphragm Pump

Power:

Pneumatic

Material:

Aluminum, Stainless Steel, Polypropylene, PVDF

Pressure:

High Pressure

Applications:

Chemical, Industrial, Pharmaceutical, Food Processing

Connection Type:

Flanged, Threaded, Tri-Clamp

Controls:

Manual, Automatic

Drive Type:

Air, Electric

Flow Rate:

0.5-400 GPM

Max Pressure:

250 PSI

Max Temperature:

200°F

Port Size:

1/2”-4”

Power Source:

Electric

Product Name:

AODD Pump

Seals:

Viton, Buna-N, EPDM, PTFE

Valve Type:

Ball, Diaphragm

Warranty:

1 Year

Packaging Details:

plywood

Supply Ability:

10pcs

Highlight:

QBY Pneumatic Driven Diaphragm Pump

QBK Pneumatic Driven Diaphragm Pump

Cast Iron Pneumatic Diaphragm Pump

Product Description

Pneumatic Driven diaphragm pump/Double Diaphragm Pump(QBY)

Product Description

Diaphragm Pump can pump paint,adhesive,glue,various corrosive liquid,strong acid,alkali,flammable or volatility liquid.

Diaphragm Pump has the features as follows:

1. Newest transportation machine
2. Needless draw water
3. Adjustable lift & flameproofing
4. High suction head
5. Good exterior
6. It can exhaust all the medium
7. It can transport uneasy flowable medium

Pneumatic Driven diaphragm pump/Double Diaphragm Pump(QBY) High Suction Head 0

Pneumatic Driven diaphragm pump/Double Diaphragm Pump(QBY) High Suction Head 1

Specifications

mobel	Discharge(m3/h)	Distance(m)	Distance(m)	The admission ascends the vacuum degree(mm)	Extreme limit pressure(kg/cm2)	Eject the pressure(m3/min)
QBY-10	0-0.8	0-50	5	1	7	0.3
QBY-15	0-1		5	1		0.3
QBY-20	0-1.5		6	1.5		0.5
QBY-25	0-2.4		7	2.5		0.6
QBY-32	0-5		7	3.5		0.7
QBY-40	0-8		7	4.5		0.6
QBY-50	0-12		7	8		0.9
QBY-65	0-16		7	8		0.9
QBY-80	0-24		7	10		1.5
QBY- 100	0-30		7	10		1.5

Packaging & Delivery

Packaging Details:export standard wooden caseDelivery Detail:in 1 week after receipt of payment

Specifications

1. Newest transportation machine
2. Needless draw water
3. Adjustable lift & flameproofing
4. High suction head
