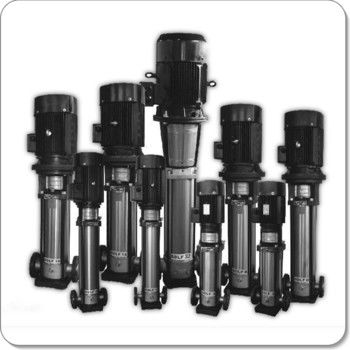

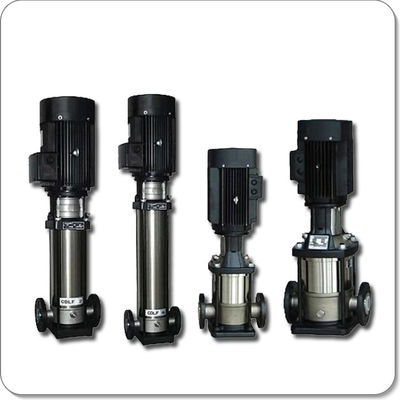

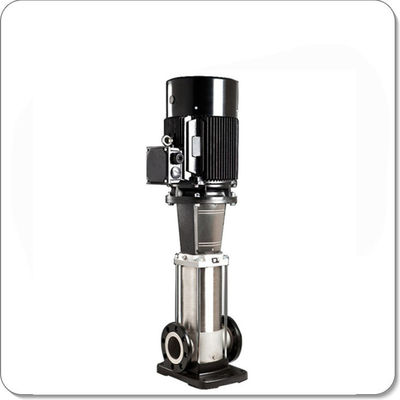

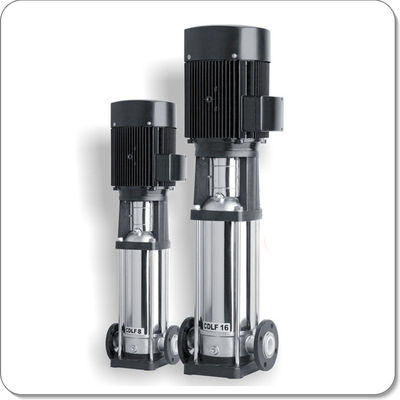

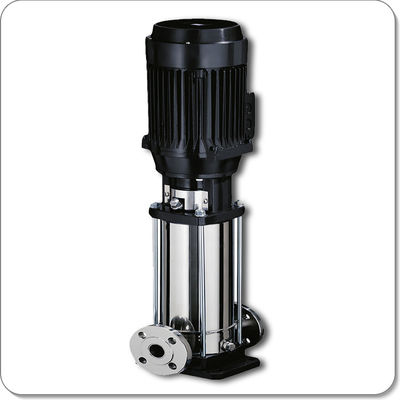

2m3/H CDL High Pressure Multistage Centrifugal Pumps 1.5Kw 380V 415V 220V

Brand Name:	ZY
Model Number:	CDL
MOQ:	1 set
Price:	$100-$5000
Payment Terms:	, T/T, Western Union, MoneyGram
Supply Ability:	1000set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Model Number:

CDL

Structure:

Multi-stage Pump

Application:

Water Pump

Power:

Electric

Pressure:

Low Pressure

Theory:

Centrifugal Pump

Material:

Stainless-steel

Keywords:

Multistage Water Pump

Impeller:

Yes

Warranty:

1 Year

Packaging Details:

wooden box

Supply Ability:

1000set/month

Highlight:

CDL High Pressure Multistage Centrifugal Pump

2m3/H High Pressure Multistage Centrifugal Pump

1.5Kw high pressure multistage pump

Product Description

CDL High Pressure Stainless Steel Multistage Water pump

CDL High Pressure Stainless Steel Multistage Water Pump 2m³/h 60m 1.5Kw 380V/415V/220V

Description

CDL / CDLF is a kind of vertical multi-functional centrifugal pumps.It can be used to convey various medium at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.

Application

1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.

2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.

3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.

4) Water Treatment: ultra filtration system.

5) Reverse Osmosis System.

6) Distillation System, separator, swimming pool.

7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

Operation Conditions

1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃

3) Ambient temperature: up to +40℃

4) Altitude:up to 1000m

5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.

6) PH 5-8

2m3/H CDL High Pressure Multistage Centrifugal Pumps 1.5Kw 380V 415V 220V 0

Type	Flow (m³/h)	Lift head (m)	Motor Power (kw)
25CDL2-12×3	2	36	1.1
25CDL2-12×4	2	48	1.1
25CDL2-12×5	2	60	1.5
25CDL2-12×6	2	72	1.5
25CDL2-12×7	2	84	2.2
25CDL2-12×8	2	96	2.2
25CDL2-12×9	2	108	2.2
25CDL2-12×10	2	120	3
25CDL2-12×11	2	132	3
25CDL2-12×12	2	144	3
25CDL4-11×3	4	33	1.1
......

2m3/H CDL High Pressure Multistage Centrifugal Pumps 1.5Kw 380V 415V 220V 1

2m3/H CDL High Pressure Multistage Centrifugal Pumps 1.5Kw 380V 415V 220V 4
