CDL vertical booster pump

CDL vertical booster pump

    • CDL vertical booster pump
    • CDL vertical booster pump
    • CDL vertical booster pump
    • CDL vertical booster pump
    • CDL vertical booster pump
  • CDL vertical booster pump

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: ZY
    Model Number: CDL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $50-$5000
    Packaging Details: wooden box
    Delivery Time: 7-30WD
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000set/month
    Contact Now
    Detailed Product Description
    Model Number: CDL Structure: Multi-stage Pump
    Usage: Water Pump Application: Water Pump
    Power: Electric Fuel: Electric
    Pressure: Low Pressure Theory: Centrifugal Pump
    Material: Stainless-steel Keywords: Multistage Water Pump
    Impeller: Yes Warranty: 1 Year
    Voltage: 380V

    CDL vertical booster pump

    CDL vertical booster pump

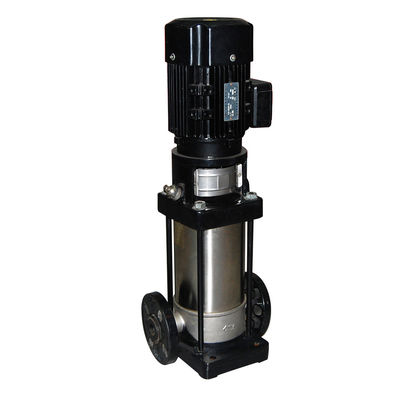

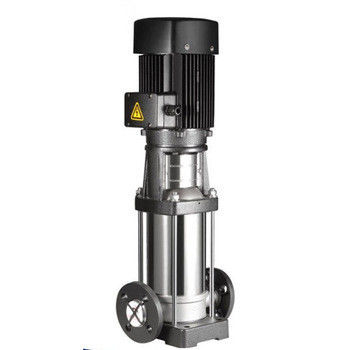

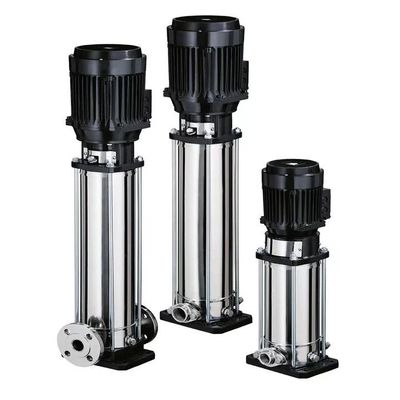

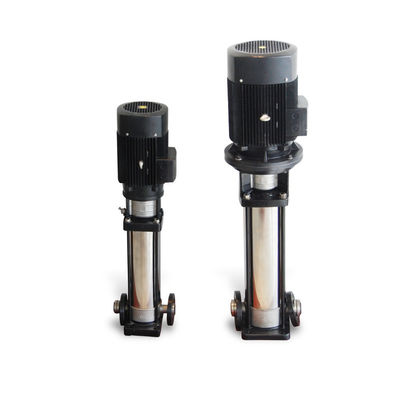

    CDL Stainless Steel Centrifugal Pump

    CDL is a kind of multifunctional products. It can be used to convey various medium from tap water to
    industrial liquid at different temperature and with different flow rate and pressure .CDL type is app-
    licable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.
    Water supply: Water filter and transport in Waterworks ,boosting of main pipeline, boosting
    in high-rise buildings.
    Industrial boosting: Process flow water system ,cleaning system, high pressure washing system,
    fire fighting system.
    Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and conden-
    sing system, machine-associated purpose, acids and alkali.
    Water treatment: Ultra filtration system, reverse osmosis system, distillation system ,separator,
    swimming pool.
    Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.
    Operation conditions:
    Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
    Liquid temperature:
    Normal temperature type:-15°C~+70°C
    Hot water type:+70°C~+120°C
    Ambient temperature: up to +40°C
    Altitude :up to 1000m
    CDL is a king of vertical non-self priming multistage centrifugal pump, which is driven by a standard
    electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The
    pressure-resistant cylinder and flow passage components are fixed between pump head and in-and
    outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom at the same plane.
    This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running,
    out-of-phase and overload.




    Product details:

    Flowrate: 1~150m3/h
    Head: 6~259m
    Caliber: DN25~DN125
    Material Stainless steel
    Max.permissible fluid temperature: 120°C(248°F)







    CDL vertical booster pump
