QBY Hand Air Operated Diaphragm Pump for Corrosive/Volatile/Flammable/Poisonous Liquid

Brand Name:	ZY
Model Number:	QBY
MOQ:	1set
Price:	$50-$200
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Structure:

Pump

Application:

Acid Liquid

Pressure:

Up To 250 PSI

Size:

Standard Size

Applications:

Chemical Transfer, Metering, Dosing, Sampling

Controls:

Manual, Electric, Pneumatic

Drive Types:

Air, Electric, Pneumatic

Flow Rate:

0.1 To 400 GPM

Fluid Compatibility:

Water, Oil, Chemicals

Materials Of Construction:

Aluminum, Stainless Steel, Polypropylene, PVDF

Mounting Options:

Base, Wall, Flange

Port Size:

1/4” To 3”

Product Name:

AODD Pump

Seals:

Viton, EPDM, Teflon, Buna-N

Temperature:

-20°F To 300°F

Viscosity:

Up To 2,000,000 CP

Warranty:

1 Year

Packaging Details:

wooden box

Supply Ability:

1000set/month

Highlight:

Air Operated Double Diaphragm AODD Pump

2KW AODD Pump

55KW Air Operated Double Diaphragm

Product Description

QBY hand air operated diaphragm pump

QBY hydrochloric acid pump using compressed air as the power source. It can convey corrosive, volatile, flammable, poisonous liquid or fluid with particles and high viscosity liquid etc.

Specification:
Inlet/outlet	10-100mm	3/8-4 inches
Capacity	0-30m3/h	16-480 L/Min
Head	0-50m
Suction Lift	5-7m
Exit Pressure	6 kgf/cm2
Max Grain Dia	10mm
Max Air Pressure	7 kgf/cm2
Max Air Consumption	1.5 m3/min
Certification	ISO9001:2008, CE
Pump body	Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined;
Diaphragm	NBR,Viton,Neoprene,Teflon,EPDM,Santoprene,Hytrel,PVDE etc.
Material of non-wetted parts	Cast Iron, Aluminum Alloy, Plastic, PP etc.
Material of wetted parts	Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined;

Parameter Table:

Model	Discharge	Head	Exit Pressure	Sucked Lift	Grain Dia	Air Pressure	Air consumption
Model	(m3/h)	(m)	(kgf/cm2)	(m)	(mm)	(kgf/cm2)	(m3/min)
QBY-10	0-0.8	0-50	6	5	1	7	0.3
QBY-15	0-1	0-50	6	5	1	7	0.3
QBY-25	0-2.4	0-50	6	7	2.5	7	0.6
QBY-40	0-8	0-50	6	7	4.5	7	0.6
QBY-50	0-12	0-50	6	7	8	7	0.9
QBY-65	0-16	0-50	6	7	8	7	0.9
QBY-80	0-24	0-50	6	7	10	7	1.5
QBY-100	0-30	0-50	6	7	10	7	1.5

Application:

1. the pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

2. the pump can suck the paint, pigment, glue, and adhesive etc.

3. the pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

4. the pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.

5. the pump can suck various toxin and flammable or volatility liquid etc.

6. the pump can suck various wedge water, cement slurry and mortar etc.

7. the pump can suck various strong acid, alkali and corrosive liquid etc.

8. It can be used as a front-step transmission device of the solid and liquid separation equipment.

Picture show:

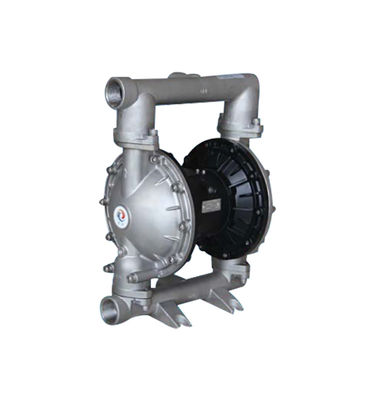

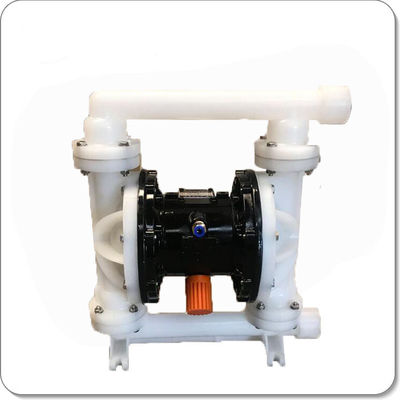

QBY Hand Air Operated Diaphragm Pump for Corrosive/Volatile/Flammable/Poisonous Liquid 1

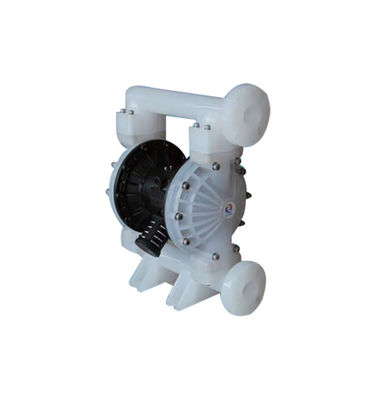

QBY Hand Air Operated Diaphragm Pump for Corrosive/Volatile/Flammable/Poisonous Liquid 3
