|Place of Origin:||Zhejiang, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden box|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Model Number:||CDL||Structure:||Multi-stage Pump|
|Usage:||Water Pump||Application:||Water Pump|
|Pressure:||Low Pressure||Theory:||Centrifugal Pump|
|Material:||Stainless-steel||Keywords:||Multistage Water Pump|

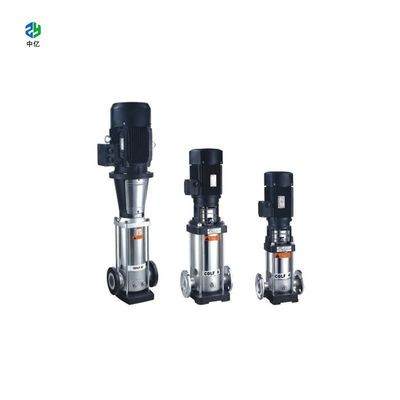

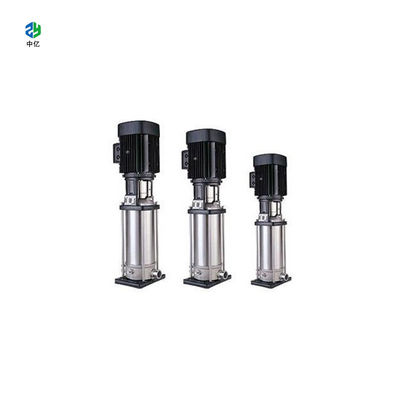

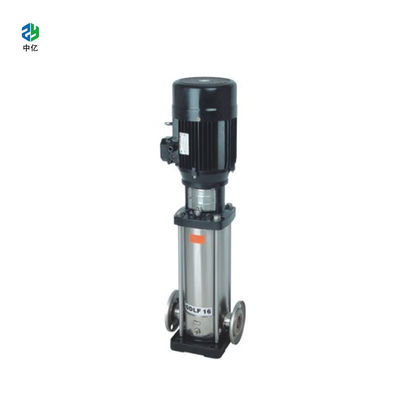

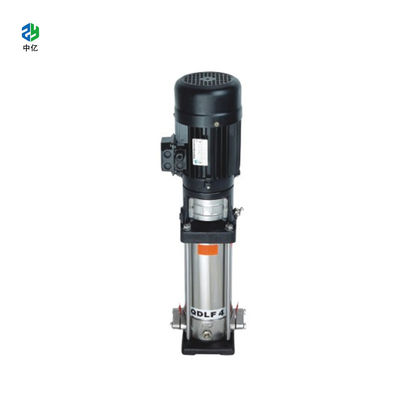

CDL / CDLF is a kind of vertical multi-functional centrifugal pumps.It can be used to convey various medium at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.
1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
4) Water Treatment: ultra filtration system.
5) Reverse Osmosis System.
6) Distillation System, separator, swimming pool.
7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation
1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃
3) Ambient temperature: up to +40℃
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
6) PH 5-8
Note:Special demands can be negotiated.
1. Full-enclosed air cooled type two-pole standard motor
2. Protection Class: IP55
3. Insulation Class: F
4. Standard Voltage: 50Hz: 1 x 220-230 / 240V
3 x 200-220 / 346-380V
3 x 220-240 / 380-415 V
3 x 3 80-415 V
