1HP-100HP Constant Pressure Water Pump Systems 220V 415V 380V

1 nos
MOQ
1000-2000usd
Price
1HP-100HP Constant Pressure Water Pump Systems 220V 415V 380V
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Cast Iron /SS304
Key Words: Constant Pressure System
Color: Blue
Voltage: 220v 415v 380v
Pressure: Low
Power: 1-100hp
High Light:

100HP Constant Pressure Water Pump Systems

,

1HP Constant Pressure Water Pump Systems

,

220V constant pressure pump system

Basic Infomation
Place of Origin: CHINA
Brand Name: ZY
Model Number: CDLF
Payment & Shipping Terms
Packaging Details: plywood
Delivery Time: 7-15days
Payment Terms: T/T, Western Union
Supply Ability: 30pcs one month
Product Description

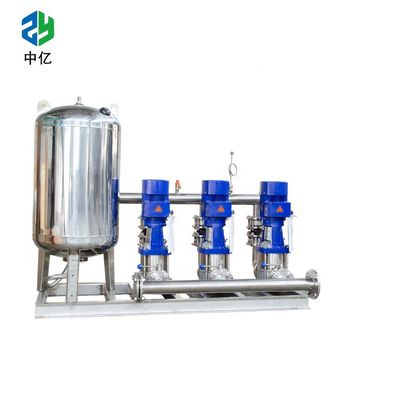

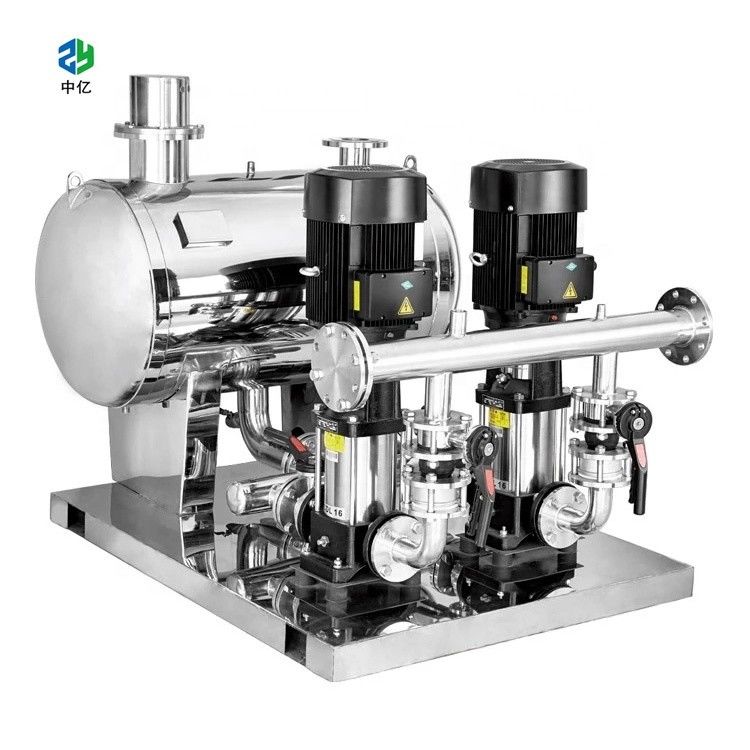

constant pressure system water pump supply equipment



Equipment Overview:



The pipe network pressure inverter constant pressure water supply equipment is composed of a microcomputer controlled variable frequency constant pressure control cabinet with PID regulation function or a digital integrated full frequency constant pressure control cabinet, two or more stainless steel vertical multistage water pumps, air pressure tank, stainless steel pipe valve, stable flow tank, vacuum suppressor, etc. The stable flow tank with vacuum suppressor is directly connected with municipal pipeline and water intake. Water supply equipment can automatically adjust the speed of single or multiple pumps by taking water from the stable flow tank, and automatically adjust the start / stop operation of multiple pumps. By adjusting the operation state of the water pump set to meet the requirements of constant pressure variable water supply of users, the pressure of water supply network is constant, and the whole water supply system will always maintain an efficient and energy-saving state. Hzw pipe network pressure inverter constant pressure water supply equipment fully utilizes the pressure of municipal pipe network, and avoids secondary pollution. It is a high-quality and energy-saving water supply equipment in modern life.



Functional features:



■ constant water supply pressure



Keep the pressure of the water supply system constant.



■ energy saving



The equipment is operated on the basis of the pressure of municipal water network, which reduces the operation power of the water pump and reduces the energy consumption.



■ environmental protection



The water supply mode of the equipment makes the water avoid contact with the air all the time and eliminate the secondary pollution.



■ small footprint and simple maintenance



Compared with the traditional water storage and water intake, the water supply mode of the equipment cancels the water storage link of the water tank, so it can save a lot of space and save the cost of regular cleaning and maintenance.



■ high automation



The system can be fully automatic control, with the functions of manual / automatic switching, multi pump timing rotation, water shortage protection, leakage protection, etc., without special personnel.



Scope of application:



■ domestic water for residents: such as high-rise buildings, residential quarters, villas, etc;



■ water for commercial buildings: such as hotels, office buildings, department stores, etc;



■ water for public places: such as hospitals, schools, gymnasiums, airports, etc;



■ the existing building water supply system (air pressure water supply, water tower and high water tank water supply) transformation;



■ irrigation water: such as park, amusement park, orchard, farm and other irrigation water;



■ industrial buildings: such as production and manufacturing, washing equipment, food industry, factory area, etc.



1HP-100HP Constant Pressure Water Pump Systems 220V 415V 380V 01HP-100HP Constant Pressure Water Pump Systems 220V 415V 380V 11HP-100HP Constant Pressure Water Pump Systems 220V 415V 380V 2

Model Power Head Model Power Head
  (KW) (M)   (KW) (M)
25CDL(F)2-20 0.55 15 32CDL(F)4-20 0.55 16
25CDL(F)2-30 0.55 22 32CDL(F)4-30 0.55 24
25CDL(F)2-40 0.55 30 32CDL(F)4-40 0.75 32
25CDL(F)2-50 0.55 37 32CDL(F)4-50 1.1 40
25CDL(F)2-60 0.75 45 32CDL(F)4-60 1.1 48
25CDL(F)2-70 0.75 52 32CDL(F)4-70 1.5 56
25CDL(F)2-80 1.1 60 32CDL(F)4-80 1.5 64
25CDL(F)2-90 1.1 67 32CDL(F)4-90 2.2 72
25CDL(F)2-100 1.1 75 32CDL(F)4-100 2.2 80
25CDL(F)2-110 1.1 82 32CDL(F)4-110 2.2 88
25CDL(F)2-120 1.5 90 32CDL(F)4-120 2.2 96
25CDL(F)2-130 1.5 97 32CDL(F)4-130 3 104
25CDL(F)2-140 1.5 105 32CDL(F)4-140 3 113
25CDL(F)2-150 1.5 112 32CDL(F)4-150 3 120
25CDL(F)2-160 1.5 120 32CDL(F)4-160 3 128
25CDL(F)2-170 2.2 127 32CDL(F)4-170 4 136
25CDL(F)2-180 2.2 135 32CDL(F)4-180 4 144
25CDL(F)2-190 2.2 142 32CDL(F)4-190 4 152
25CDL(F)2-200 2.2 150 32CDL(F)4-200 4 160
25CDL(F)2-210 2.2 157 32CDL(F)4-210 4 168
25CDL(F)2-220 2.2 165 32CDL(F)4-220 4 176
25CDL(F)2-230 3 172
25CDL(F)2-240 3 180
25CDL(F)2-250 3 187
25CDL(F)2-260 3 195
40CDL(F)8-20 0.75 18 50CDL(F)12-20 1.5 20
40CDL(F)8-30 1.1 27 50CDL(F)12-30 2.2 30
40CDL(F)8-40 1.5 36 50CDL(F)12-40 3 40
40CDL(F)8-50 2.2 45 50CDL(F)12-50 3 50
40CDL(F)8-60 2.2 54 50CDL(F)12-60 4 60
40CDL(F)8-70 3 63 50CDL(F)12-70 5.5 70
40CDL(F)8-80 3 72 50CDL(F)12-80 5.5 80
40CDL(F)8-90 4 81 50CDL(F)12-90 5.5 91
40CDL(F)8-100 4 90 50CDL(F)12-100 7.5 101
40CDL(F)8-110 4 99 50CDL(F)12-110 7.5 111
40CDL(F)8-120 4 108 50CDL(F)12-120 7.5 121
40CDL(F)8-130 5.5 117 50CDL(F)12-130 7.5 131
40CDL(F)8-140 5.5 126 50CDL(F)12-140 11 141
40CDL(F)8-150 5.5 135 50CDL(F)12-150 11 151
40CDL(F)8-160 5.5 144 50CDL(F)12-160 11 162
40CDL(F)8-170 7.5 153 50CDL(F)12-170 11 171
40CDL(F)8-180 7.5 162 50CDL(F)12-180 11 183
40CDL(F)8-190 7.5 171
40CDL(F)8-200 7.5 180
