G25-1 Progressive Cavity Single Screw Pump Cast Iron Sludge Transfer 5.5kW 380V

Detail Information

Product Description

Detail Information

Highlight:

Single Screw Progressive Cavity

Cast Iron Wear Resistant Body

High Viscosity Sludge Transfer

Product Description

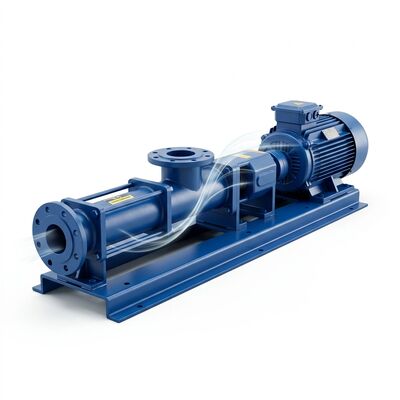

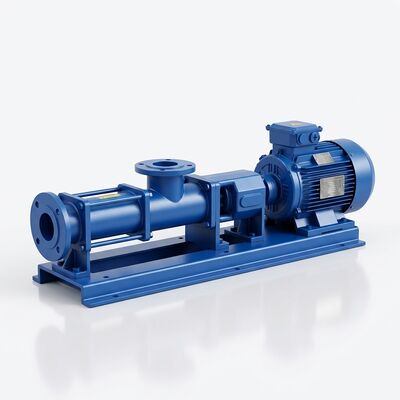

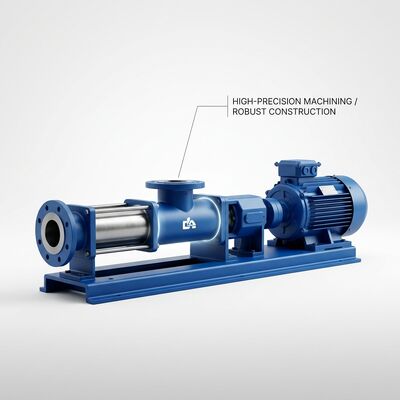

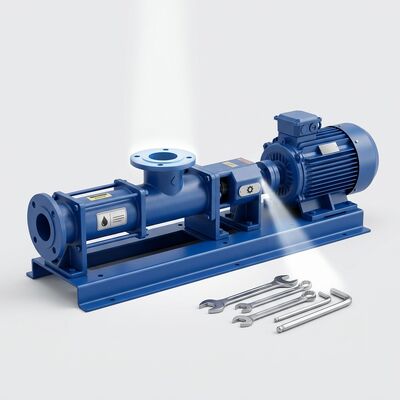

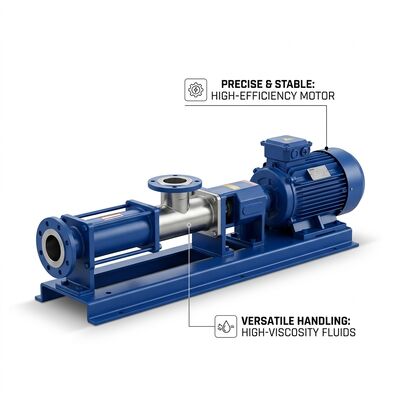

G25-1 Progressive Cavity Single Screw Pump

The G25-1 is a positive displacement progressive cavity single screw pump engineered for continuous, pulse-free transfer of high viscosity, abrasive and shear sensitive media. With a cast iron body and a 316L stainless steel rotor running inside a moulded rubber stator, it delivers stable flow even with high solid content sewage sludge.

Key Features

Pulse-free, reversible flow with minimal shear to the medium
Cast iron housing with wear resistant 316L stainless steel rotor
NBR / EPDM stator, replaceable in minutes without disturbing the pipeline
Self-priming and able to run dry for short periods
Direct coupled 5.5kW motor, 380V 50Hz three phase
Single or double mechanical seal options

Applications

Municipal sewage and sludge dewatering
Industrial wastewater and grit transfer
Chemical slurry and viscous fluid dosing
Food processing residues and paper pulp

Specifications

Model	G25-1
Flow Rate	2 m3/h
Max Head	60 m
Power	5.5 kW
Voltage	380V / 50Hz
Body Material	Cast Iron
Rotor Material	316L Stainless Steel

We are a professional screw pump manufacturer in China. MOQ 1 set, OEM and ODM are welcome. Please contact us for the latest price and technical selection.
