Hot Water Vertical Multistage Pump CDL CDLF Vertical Multi Stage Centrifugal Pump

Brand Name:	ZY
Model Number:	CDL
MOQ:	1 set
Price:	$50-$5000
Payment Terms:	,T/T, Western Union, MoneyGra
Supply Ability:	1000set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Model Number:

CDL

Structure:

Multi-stage Pump

Usage:

Water Pump

Application:

Water Pump

Power:

Electric

Fuel:

Electric

Pressure:

Low Pressure

Theory:

Centrifugal Pump

Material:

Stainless-steel

Keywords:

Multistage Water Pump

Impeller:

Yes

Warranty:

1 Year

Voltage:

380V

Packaging Details:

wooden box

Supply Ability:

1000set/month

Highlight:

Hot Water Vertical Multistage Pump

CDLF Vertical Multi Stage Centrifugal Pump

CDL Vertical Multi Stage Centrifugal Pump

Product Description

Hot Water Available CDL/CDLF Vertical Multistage Pump Manufacturer

Product Description

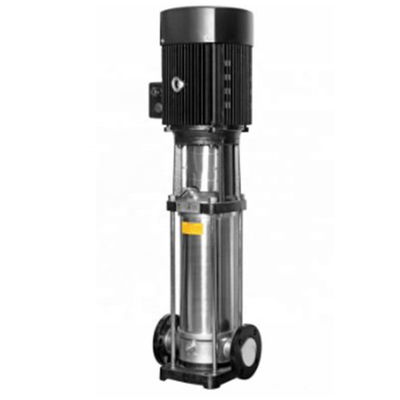

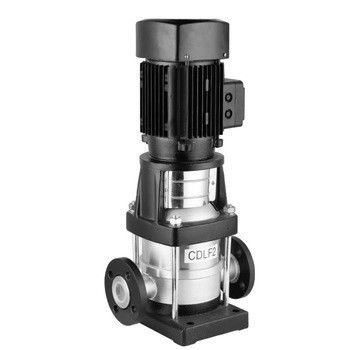

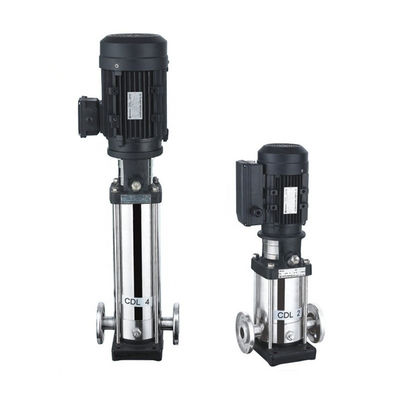

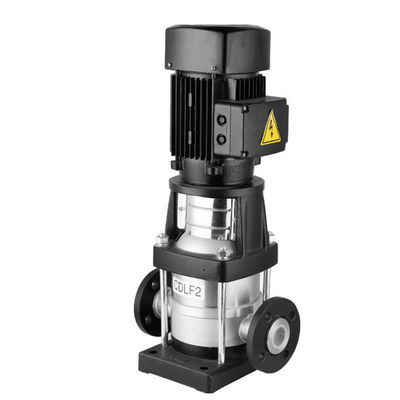

Vertical Multistage Pump CDL/CDLF is a kind of vertical non-self priming Vertical Multistage Pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet&outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Specification of Vertical Multistage Pump as below,

Flow Range of Vertical Multistage Pump	0.4-240m3/h
Lift Range of Vertical Multistage Pump	4-162.5m
Ambient Temperature of Vertical Multistage Pump	up to +40 °C
Temperature Range of Vertical Multistage Pump	0—70°C

Model	Flow Range	Head Range	Rated Power Of Motor	Weight
Model	m3/h	m	kw	kg
CDL1-2	0.4 0.6 0.8	13 12.5 12	0.37	20
CDL2-4	1 1.2 1.6	36 35 33	0.55	22
CDL3-8	1.2 1.6 2.0	49 47 45	0.75	27
CDL4-10	1.5 2.0 3.0	96 90 87	2.2	37
CDL8-12	5 6 7	124 120 116	4	66
CDL12-16	7 8 9	192.5 189 183.5	11	161
