submersible aerator treatment/fish pond oxygen/ waste water purification
Product Name
Jet Aerator
Product Overview
QXB submersible centrifugal aerator aeration products for the self-priming, direct-coupled structure. Centrifugal force generated by rotation of the impeller, the impeller inlet in the formation of negative pressure suction of air and water, use the function in impeller chamber to a certain percentage of hybrid gas-water mixture, in a strong centrifugal force, the air-water two-phase flow along the impeller tangent direction of the rectified by the flow to the circumferential direction of the spread, crushing the tiny bubbles full blending with water, so as to achieve the effect of aeration and oxygenation.
Work
QXB aeration-type self-priming, direct-coupled structure. Centrifugal force generated by rotation of the impeller, the impeller inlet in the formation of negative pressure suction of air and water, the kinetic energy in the mixed use of the impeller in a certain proportion of gas-water mixture, in a strong centrifugal force, the air-water two-phase flow along the impeller tangent rectified by the flow direction to the circumferential direction of the spread, crushing the tiny bubbles full integration with the water table, so as to achieve the effect of aeration and oxygenation.
Features
Weight location, easy to install, without interrupting processes running state free layout
Compact design, the use of self-priming function without external gas source;
Host diving reduce the area, noise;
Can be used directly in the oxidation pond, save infrastructure costs;
Independent movement of the aeration equipment, aeration feature both Zi stir;
Chassis can be specially designed according to user requirements.
|
Model |
Oxygen transfer in clean water (kgO2/h) |
Single servicing area |
||
| Max area(m2) | Max depth(m) | Air input(m3/h) | ||
| QXB0.75-32 | 1.0 | 2.8 | 2.0 | 10 |
| QXB1.5-32 | 1.8 | 3.5 | 3.0 | 22 |
| QXB2.2-50 | 2.0 | 4.8 | 3.5 | 35 |
| QXB3-50 | 2.5 | 5.5 | 3.5 | 50 |
| QXB4-50 | 4.0 | 6.5 | 4.0 | 75 |
| QXB5.5-65 | 10 | 8 | 4.0 | 90 |
| QXB7.5-80 | 15 | 10 | 4.5 | 100 |
| QXB11-80 | 18 | 11 | 4.6 | 160 |
| QXB15-100 | 20 | 12 | 4.8 | 200 |

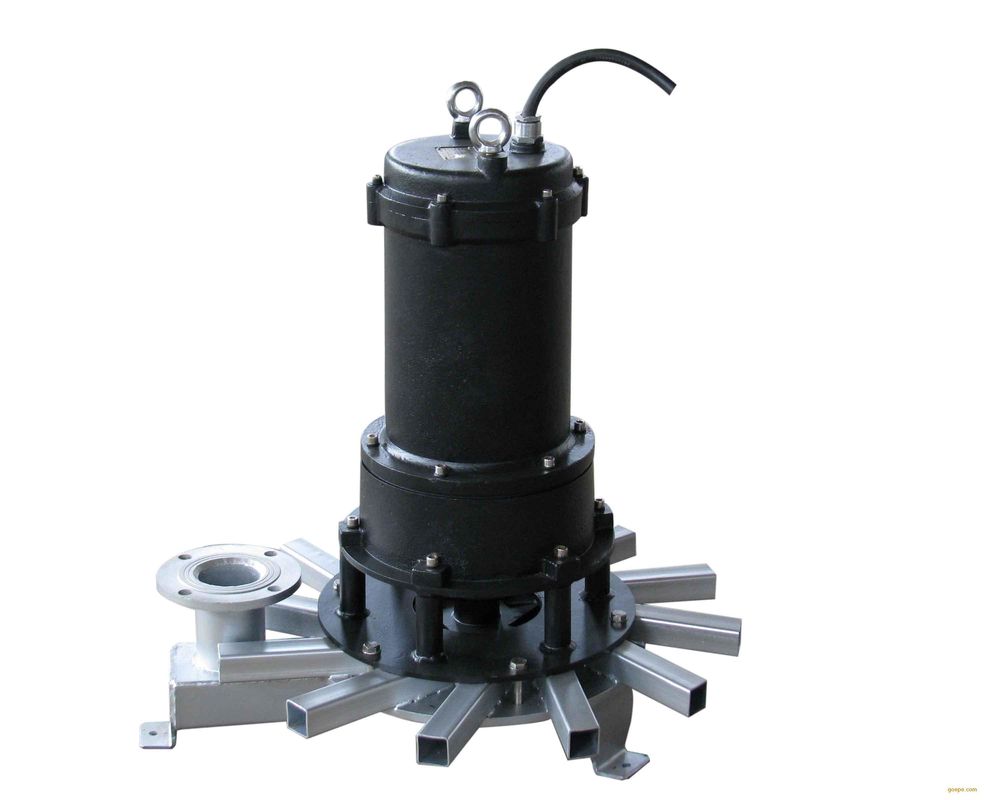

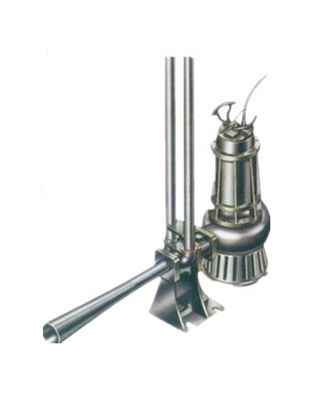

Product show
