Wholesale Factory Price High Grade Cutting Sewage Submersible Pump

1
MOQ
$50-$1000
Price
Wholesale Factory Price High Grade Cutting Sewage Submersible Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: WQ
Usage: Water
Application: Submersible
Sealing: Mechanical Seal
OEM/ODM: Yes
Flow Rate: 50m3/h
Frequency: 50Hz
Head: 15m
Inlet Diameter: 50mm
Insulation Class: F
Material: Cast Iron
Noise Level: ≤68dB
Outlet Diameter: 50mm
Power: 2HP
Protection Class: IP68
Speed: 2850r/min
Type: Submersible Sewage Pump
Weight: 25kg
Basic Infomation
Place of Origin: Zejiang,China
Brand Name: ZY
Certification: ISO9001
Model Number: WQK
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 7-30WD
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000set/month
Product Description

Wholesale Factory Price High Grade Cutting Sewage Submersible Pump





Product Description Of Cutting Sewage Submersible Pump

This kind of pump has strong passing ability. The blade cut the long fiber matters, plastic, paper, straw, cloth into pieces to make those discharge out. Advanced design allows the pump full head range running. Excellent dry motor matching with pump body enhances the pump efficiency. The pump uses high quality hard alloy, and adopts dynamic seal composed of double end mechanical seal and framework oil seal. To ensure normal use of pump and safety of work staffs, users should outfit leakage protector.

Applications

This series pump is widely used in city sewage treatment, construction works, hotels, mines, industries, urban environment protection facilities. It is an ideal tool for slurry, sewage, fluids with short fiber, paper, sand and mud transportation, drainage in rural and pond clearing.

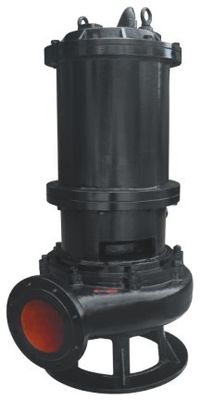

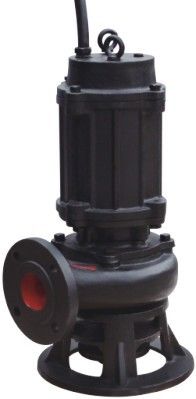

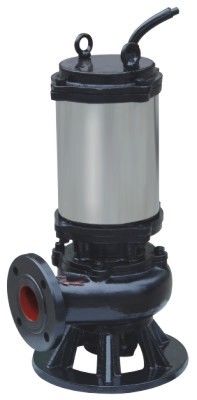

Product Picture Of Cutting Sewage Submersible Pump

Wholesale Factory Price High Grade Cutting Sewage Submersible Pump 0Wholesale Factory Price High Grade Cutting Sewage Submersible Pump 1

Model meaning

Wholesale Factory Price High Grade Cutting Sewage Submersible Pump 2

Technical Parameter Of Cutting Sewage Submersible Pump

Model Voltage
(v)
Diameter of outlet
(mm)
Flow
(m³/h)
Head
(m)
Power
(kw)
Rotation speed
(r/min)
WQS10-7-0.75 380 50 10 7 0.75 3860
WQS15-7-1.1 380 50 15 7 1.1 3860
WQS25-7-1.5 380 64 25 7 1.5 3860
WQS25-12-2.2 380/660 64 25 12 2.2 3860
WQS37-15-3 380/660 76 37 15 3 3860
WQS60-10-4 380/660 100 60 10 4 3860
WQS65-18-5.5 380/660 100 65 18 5.5 3860
WQS80-15-7.5 380/660 100 80 15 7.5 3860

Wholesale Factory Price High Grade Cutting Sewage Submersible Pump 3
