Stainless Steel centrifugal Vertical Multistage water pressure booster pump

Name: Stainless Steel centrifugal Vertical Multistage water pressure booster pump
Brand: QUZHOU ZHONGYI CHEMICALS CO.,LTD
SKU: CDLF
Price: 15,250.00 USD
Availability: InStock

Brand Name:	ZY
Model Number:	CDLF
MOQ:	1 set
Price:	$500-$30000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability:	500set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Brand Name:

OEM

Usage:

Water

Power:

Electric

Pressure:

High Pressure

Frequency:

50/60 Hz

Jockey Pump:

0.55-160kw

Flow Rate:

0.5-400 M3/h

Head:

5-400 M

Inlet Diameter:

DN25-DN200

Insulation Class:

Material:

Cast Iron, Stainless Steel

Maximum Working Pressure:

1.6MPa

Noise Level:

≤75dB

Outlet Diameter:

DN25-DN200

Protection Class:

IP55

Shaft Seal:

Mechanical Seal, Packing Seal

Speed:

1450-2900 Rpm

Temperature Range:

-20-105℃

Type:

Vertical Multistage Centrifugal Pump

Packaging Details:

PLYWOOD

Supply Ability:

500set/month

Highlight:

Multistage Vertical Multistage Centrifugal Pump

water pressure booster pump

Vertical Multistage Centrifugal Pump

Product Description

Stainless Steel centrifugal Vertical Multistage water pressure booster pump

Introduction

Application:

1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.

2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.

3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.

4) Water Treatment: ultra filtration system.

5) Reverse Osmosis System.

6) Distillation System, separator, swimming pool.

7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

Performance Range for Vertical Multistage Centrifugal Pump

Capacity: 2 up to 500m³/h

Head: 15 up to 195 m

Efficiency : 72% up to 92.5%

Rotation Speed: 2900 r/min

Power: 0.37 up to 15 kw

NPSH: 1.8

Operation Conditions for Vertical Multistage Centrifugal Pump

1) Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃

3) Ambient temperature: up to +40℃

4) Altitude:up to 1000m

5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.

6) PH 5-8

Special demands can be negotiated.

Motor:

1. Full-enclosed air cooled type two-pole standard motor

2. Protection Class: IP55

3. Insulation Class: F

4. Standard Voltage: 50Hz: 1 x 220-230 / 240V

3 x 200-220 / 346-380V

3 x 220-240 / 380-415 V

3 x 3 80-415

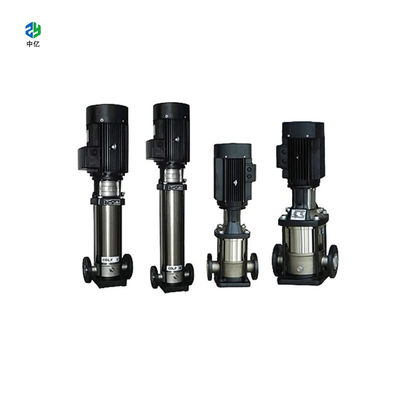

Stainless Steel centrifugal Vertical Multistage water pressure booster pump 0

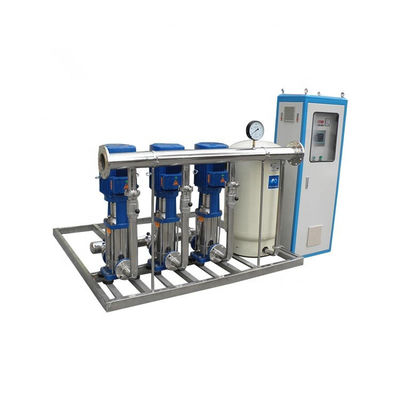

Stainless Steel centrifugal Vertical Multistage water pressure booster pump 1

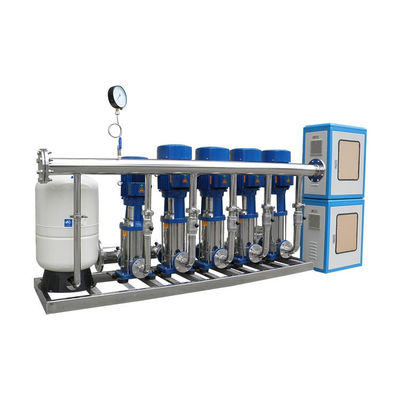

Stainless Steel centrifugal Vertical Multistage water pressure booster pump 2

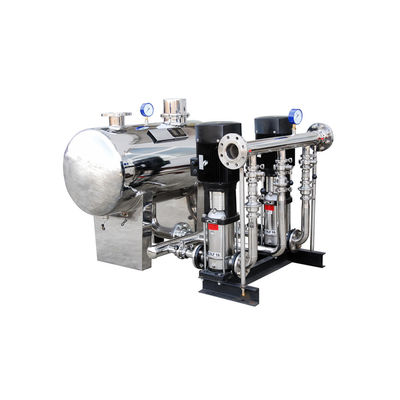

Stainless Steel centrifugal Vertical Multistage water pressure booster pump 3
