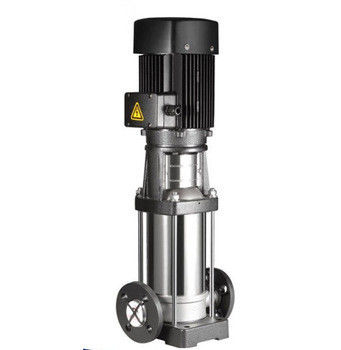

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting

Brand Name: ZY
Model Number: CDL
MOQ: 1 set
Price: $50-$5000
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000set/month
Detail Information
Place of Origin:
Zhejiang, China
Certification:
ISO9001
Model Number:
CDL
Structure:
Multi-stage Pump
Usage:
Water Pump
Application:
Water Pump
Power:
Electric
Fuel:
Electric
Pressure:
HIGH Pressure
Theory:
Centrifugal Pump
Material:
Stainless-steel
Keywords:
Multistage Water Pump
Impeller:
Yes
Warranty:
1 Year
Voltage:
380V/440V/460V/4'15/50hz
Packaging Details:
wooden box
Supply Ability:
1000set/month
Highlight:

CNP Vertical Multistage Centrifugal Pump

,

cnp vertical multistage pump

,

cnp multistage pump

Product Description

CNP CDL/CDLF Vertical Multistage Centrifugal Pump for Water Supply and Industrial Boosting


Product Description

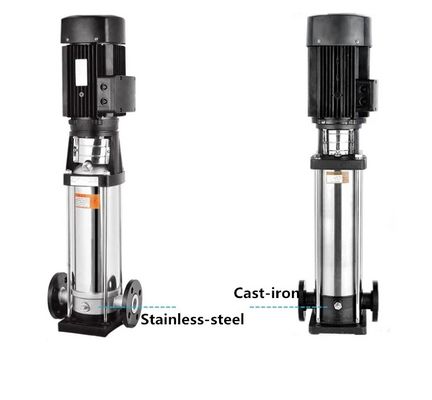

CDL / CDLF is a kind of vertical multi-functional products.It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.

cnp same quality cdl cdlf vertical multistage centrifugal pump and water pumps

General Information


Application:

1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
4) Water Treatment: ultra filtration system.
5) Reverse Osmosis System.
6) Distillation System, separator, swimming pool.
7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

Performance Range:
Capacity: 2 up to 500m³/h
Head: 15 up to 195 m
Efficiency : 72% up to 92.5%
Rotation Speed: 2900 r/min
Power: 0.37 up to 15 kw
NPSH: 1.8

Operation Conditions:

1) Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃
3) Ambient temperature: up to +40℃
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
6) PH 5-8
Special demands can be negotiated.

Motor:
1. Full-enclosed air cooled type two-pole standard motor
2. Protection Class: IP55
3. Insulation Class: F
4. Standard Voltage: 50Hz: 1 x 220-230 / 240V
3 x 200-220 / 346-380V
3 x 220-240 / 380-415 V
3 x 3 80-415 V

Model Symbols:
CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 0




Performance Parameter:

 CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 1

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 2

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 3
CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 4

Performance Curve:

Following conditions are suitable for the performance curves shown bellow:
1. All curves are based on the measured values of 50Hz: constant motor speed 2900rpm or 2950rpm.
2. Curve tolerance in conformity with 1SO9006 Annex A.
3. Measurement is done with 20℃air-free water. kinematic viscosity of mm2/sec.
4. The operation of pump shall refer to the performance region indicated by the thickened curve to prevent overheating due to too small flow rate or overload of motor due to too large flow rate.
CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 5

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 6

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 7

CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 8




Packing:
CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 9CNP Vertical Multistage Centrifugal Pump For Water Supply And Industrial Boosting 10
