CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump

CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump

Brand Name:	ZY
Model Number:	CDL
MOQ:	1 set
Price:	$50-$5000
Payment Terms:	L/C,T/T, Western Union, MoneyGram
Supply Ability:	1000set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Model Number:

CDL

Structure:

Multi-stage Pump

Usage:

Water Pump

Application:

Water Pump

Power:

Electric

Fuel:

Electric

Pressure:

High Pressure

Theory:

Centrifugal Pump

Material:

Stainless-steel

Keywords:

Multistage Water Pump

Impeller:

Yes

Warranty:

1 Year

Voltage:

380V/440V/460V/4'15/50hz

Packaging Details:

wooden box

Supply Ability:

1000set/month

Highlight:

Stainless Steel Punching Pump

CDL Punching Pump

Punching Vertical Multistage Centrifugal Pump

Product Description

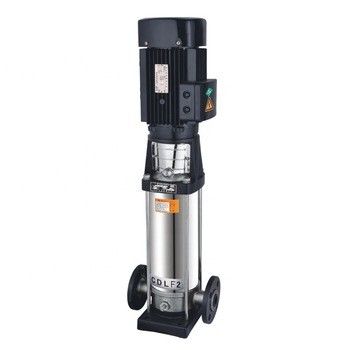

CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump

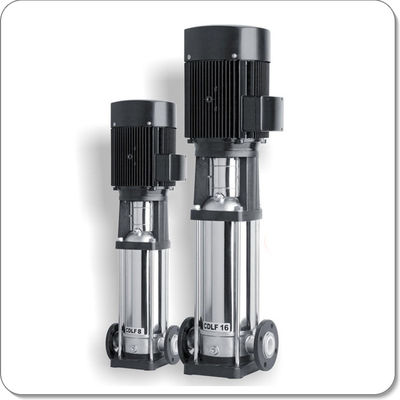

CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump 1

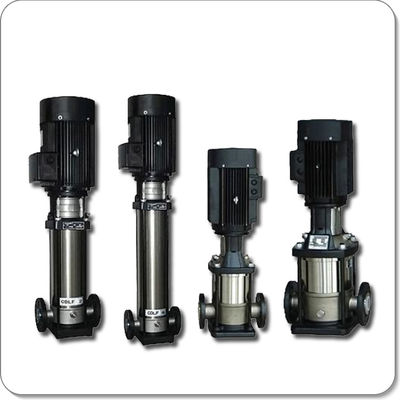

CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump 2

Product Description

CDL / CDLF is a kind of vertical multi-functional products.It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.

General Information

Application:

1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
4) Water Treatment: ultra filtration system.
5) Reverse Osmosis System.
6) Distillation System, separator, swimming pool.
7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

Performance Range:
Capacity: 2 up to 500m³/h
Head: 15 up to 204 m
Efficiency : 72% up to 92.5%
Rotation Speed: 2900 r/min
Power: 0.37 up to 15 kw
NPSH: 1.8

Operation Conditions:

1) Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃
3) Ambient temperature: up to +40℃
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
6) PH 5-8
Special demands can be negotiated.

Motor:
1. Full-enclosed air cooled type two-pole standard motor
2. Protection Class: IP55
3. Insulation Class: F
4. Standard Voltage: 50Hz: 1 x 220-230 / 240V
3 x 200-220 / 346-380V
3 x 220-240 / 380-415 V
3 x 3 80-415 V

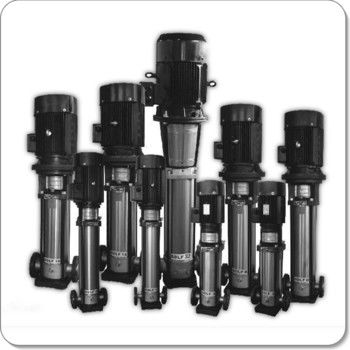

CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump 5

CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump 6

Packing:
CDL Vertical Multistage Centrifugal Pump, Stainless Steel Punching Pump 7
