CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal

1 set
MOQ
$50-$5000
Price
CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: CDL
Structure: Multi-stage Pump
Usage: Water Pump
Application: Water Pump
Power: Electric
Fuel: Electric
Pressure: Low Pressure
Theory: Centrifugal Pump
Material: Stainless-steel
Keywords: Multistage Water Pump
Impeller: Yes
Warranty: 1 Year
Voltage: 380V/440V/460V/4'15/50hz
High Light:

Quzhou Zhongyi Chemical CDL Stainless Steel Pump

,

Quzhou Zhongyi Chemical CDL CDLF pump
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: ZY
Certification: ISO9001
Model Number: CDL
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 7-30WD
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000set/month
Product Description

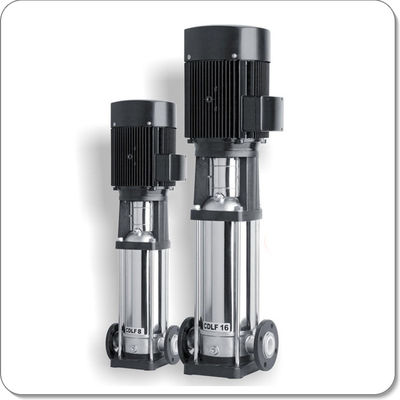

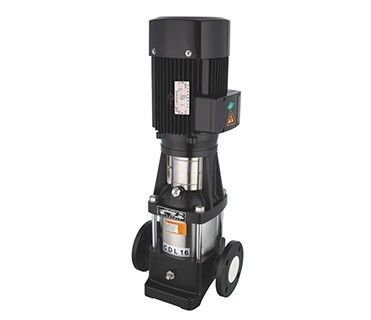

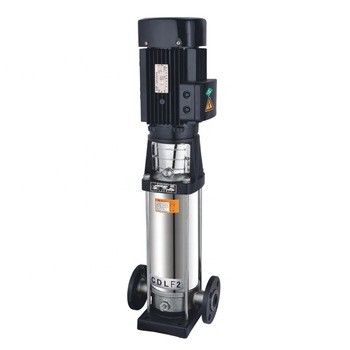

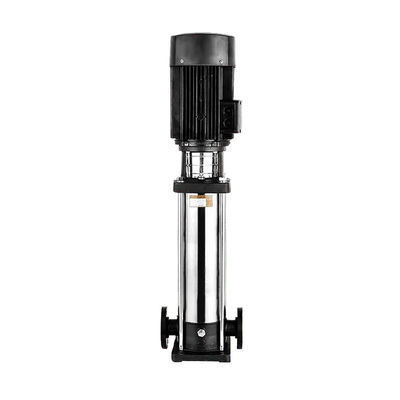

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal

CDL,CDLF Stainless steel vertical multistage centrifugal pump integrates the advantage of high pressure of multistage pump,small floor area of vertical pump and easy installation of pipeline pump. Also, it has the advantages of energy efficiency,stable operation,etc. Due to the adoption of excellent hydraulic model, and the shaft seal id wear-resistant mechanical seal without leakage and having a long service life.

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 0
CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 1CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 2CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 3CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 4
APPLICATION
CDL/CDLF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, While CDLF is suitable for slightly corrosive liquid.
Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system,cleaning system, high-pressure washing system, fire fighting system Industrial liquid conveying:Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, swimming pool, separator Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

Operation conditions
Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
Liquid temperature:
Normal temperature type:-15℃~+70℃,
Hot water type:+70℃~+120℃
Ambient temperature :up to +40℃
Altitude :up to 1000m

Pump
CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump,which is driven by a standard electric motor.The motor output shaft directly connects with the pump shaft through a coupling.The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts.The inlet and outlet are located at the pump bottom at the same plane.This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

Electric motor
Full-enclosed air-blast two-pole standed motor
Protection class:IP55
Insulation class:F
Standard voltage, 50HZ:1x220-230/240V
3x200-220/346-380V
3x220-240/380-415V
3x380-415V
60HZ:3×200-230/346-400V
3×220-255/380-440V
3×220-227/380-480V


parameter

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 5

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 6

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 7












CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 8

CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 9CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 10CDL/CDLF Stainless Steel Vertical Multistage Centrifugal Pump with Wear-Resistant Mechanical Seal 11
