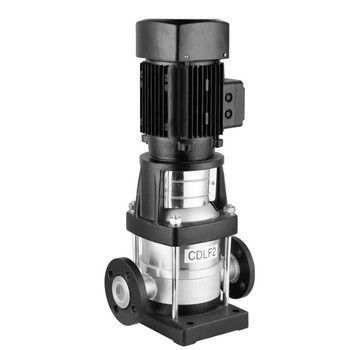

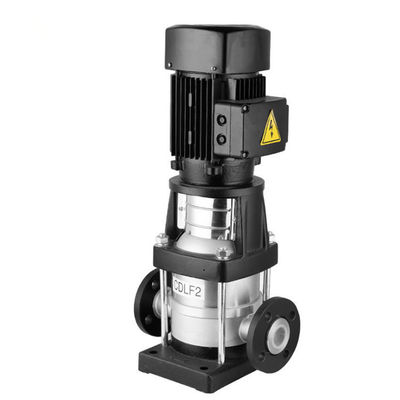

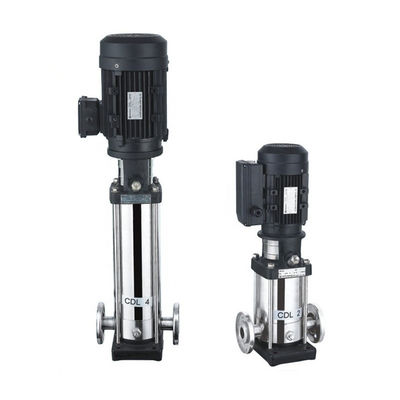

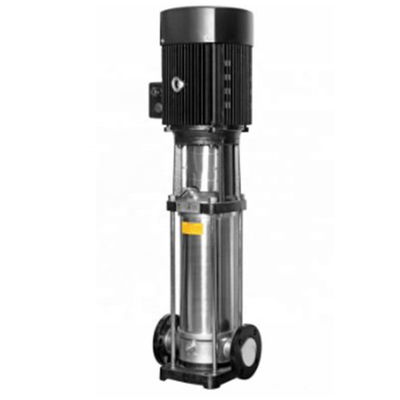

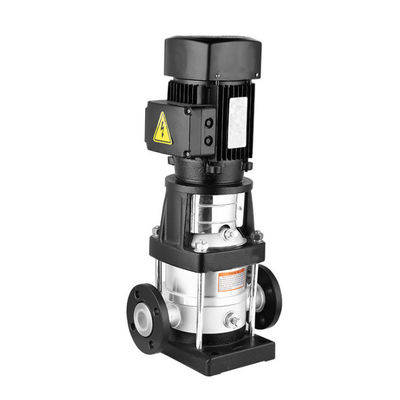

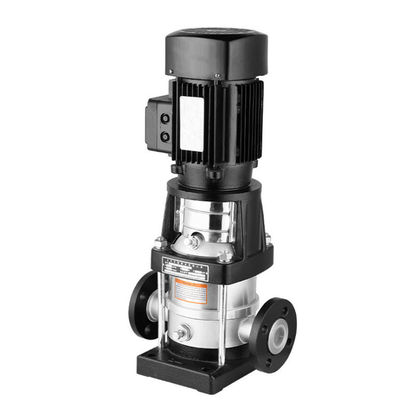

2-200m3/Hr CDL Vertical Multistage Centrifugal Pump DN50mm-DN350mm

CDL 304 Stainless Steel Vertical Multistage Pipeline Pump with Flow 2-200m3/hr, Head 20-290m, DN50-DN350mm

Material:

304stainless steel
316stainless steel


Performance range:

1. Flow: 2-1000m3/hr

2. Head: 20-290m

3. Caliber: DN50-DN350mm

4. Rotate speed: 750-2950 r/min

5 .Motor power: 1.5-315kw

6.Material: stainless steel

Introduction:

CDL Vertical Multistage Pipeline Pump is the latest model, energy-saving, less space demand, easy to install and stable performance.

Introduction:

The CDL type pump is the latest type, which is characterized by energy saving, space effective, easy installation, stable performance and so on. The casing is made of 1Cr18Ni9Ti top-grade stainless steel while the shaft gland adopts the abrasion-resistance mechanical seal with zero leakage and a long service life. It solves the axial force with the hydraulic balance so that the pump has stable running with low noise. Its installation conditions are more favorable than those of DL pump because it can be easily installed in the middle of a segment of horizontal pipeline. It can fully meet the need for the water supply and drainage of high-rise buildings, deep wells and mines and the like as well as for the fire fighting facilities. Therefore, it is the optimal type to transport cold and hot water, general media or. Other liquids with similar physical and chemical properties as water in all major industries

Features:

1.With its 304 stainless steel shell and wear-resistant axle seal, it is no leakage and long service life.

2.With hydraulic equilibrium to balance the axial force, the pump can run more smoothly, less noise and, which can be easily installed in the pipeline which is on the same level, enjoying better installation conditions than DL model.

3. With these features, CDL Pump can easily meet the needs and requirements for water supply and drain foe high building, deep well and firefighting equipments.

Application:

Domestic water supply for buildings

Fire water supply for buildings

Water supply equipments

Water supply for boilers

Water circulation and boosting for industry

Other clean fluid transportation
