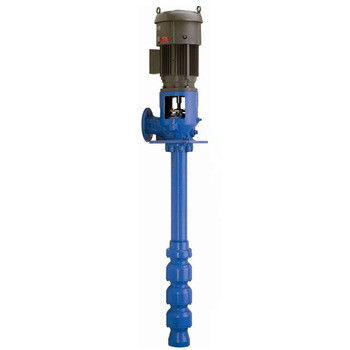

Deep Well Turbine Clean Water Long Shaft Motor Driven Borehole Pump
RJC pumps are researched by us with up to date technologies from home and abroad. This series pumps are produced in accordance with the latest American Standard. With many years of efforts, we havebecame one of the leading suppliers in China.
Product Features
1. By adopting ashland process to make impeller blade and epoxy coating process in impeller vane, we make sure that the products have an excellent performance and long service life.
2. Standard Impeller is enclosed, Open will pass larger solids. Pump performance can be changed by adjusting the impeller clearances. Shaft transmits power from driver to bowl assembly
3. Both Impeller shaft and motor shaft are adopted by the bronze bearing as their supporting. The radial of the shaft is less than 0.13mm, which meets US standard and ensure the pump have a smooth and reliable operation and less noisy.
4. The discharge head has a beautiful shape and big window that is convenient to repair and replace.
5. Material from ductile iron GG60, SS304 or SS316 on requested.
6. High Efficiency relative to horizontal pumps.
7. Configuration flexibility.
8. Broad Offering / Many Selections.
9. Many suitable applications both within and outside of Building Services.
When pumping clean water or physical and chemical liquid: Neutral water, PH=6.5-8.5, chloride ion content:=400mg/L, medium temperature:=40ºC
Material of Vertical Turbine Pump
Bowl: Cast iron, Stainless steel304/316
Shaft: Stainless steel
Impeller: Cast iron, Bronze or Stainless steel
Discharge head: Cast iron or carbon steel
Application
| Booster Stations | Water Supply and Transport |
Submersible & Lineshaft Deep Well Water Supply
|
| HVAC (cooling tower pumps) | Booster (commercial building services) |
Submersible & Lineshaft Deep Well Pumping (Rural Water)
|
| Dewatering (mining) | Seawater Pumping (offshore oil platforms) | Non Water (toxic and flammable) |
|
General Industrial Process
|
etc |
