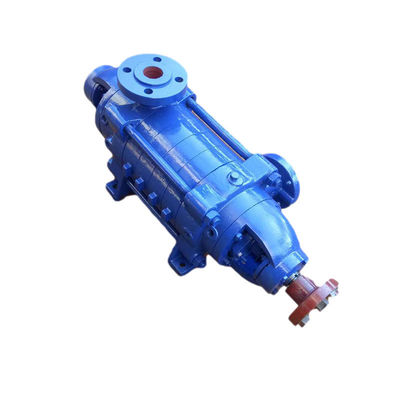

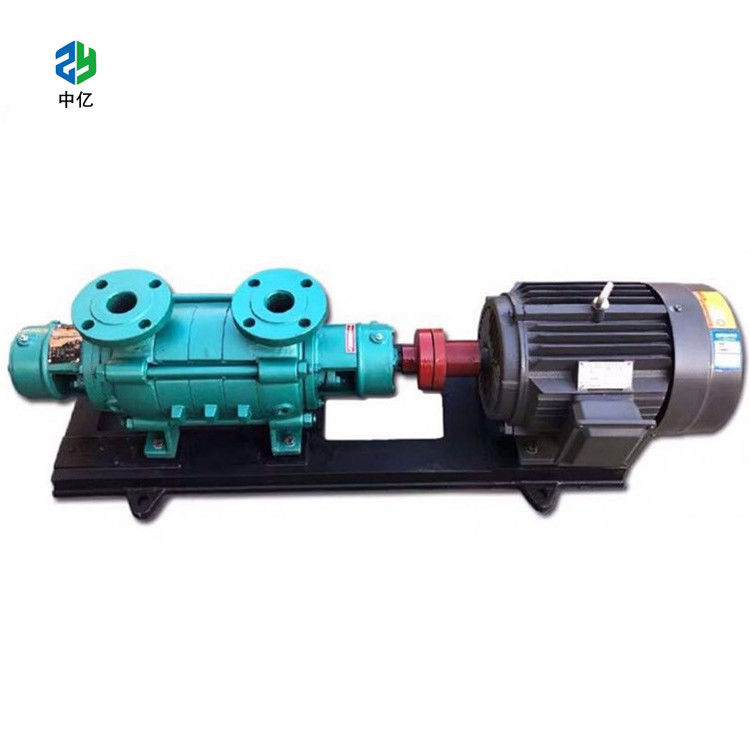

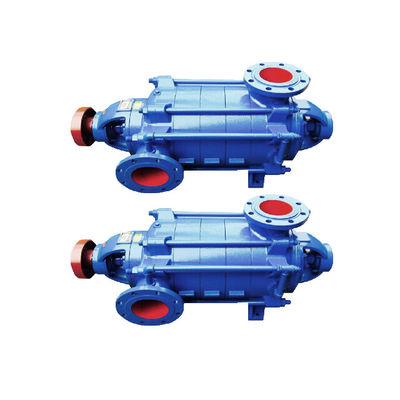

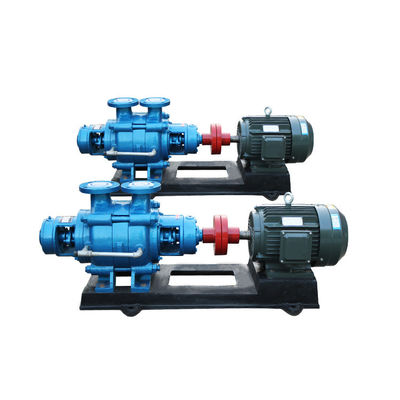

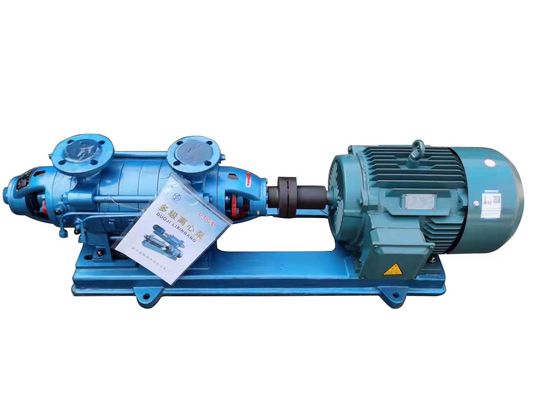

D type pump is horizontal multistage centrifugal pump. With high efficiency, performance range, operation safety smooth, low noise, long life, easy installation and maintenance etc. For conveying water or physical chemical properties similar to other liquid water. Can also by changing the pump flow components material, seal form and increase the cooling system used in conveying hot water, oil, corrosive or containing abrasive media. Product executive JB/T1051-93 "multistage centrifugal pump water of" types and basic parameters for standard.
Scope of application of Horizontal Multistage Centrifugal Pump
Suitable for industrial and urban water supply and drainage, high-rise building charging water supply, garden sprinkler irrigation, fire booster, distant distance water delivery, heating, bathroom, etc, cold and hot water circulation pressurization and equipment matching, etc., especially suitable for small boiler feed water.
Product features for Horizontal Multistage Centrifugal Pump
1, hydraulic model is advanced, high efficiency, performance range.
2, pump smooth operation, low noise.
3, shaft seals use soft packing seal or mechanical seal, seal, and safe and reliable, simple structure, convenient maintenance.
4, shaft to all the seal structure, ensure the not contact with the media, no corrosion and long service life
|Working Principle||Centrifugal, Multi-stage|
|Main applications||Boiler water feed pump, hot water|
|Driver||Electric motor, diesel engine|
|Power Specs||220V/380/415V 3phase;50hz/60hz|
|Max. permissible fluid temperature||80°C(176°F) or 105°C(221°F) hot water type|
|Pump casing material||Cast iron, Ductile iron, Stainless steel|
|Impeller material||Ductile iron, Stainless steel, Bronze|
|Shaft seal type||Mechanical seal; Packing seal|
|Maximum drive rating||1120kW(1495HP)|
