D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction

2
MOQ
400-1500USD
Price
D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Cast Iron
Voltage: 380v/415v
Key Worlds: Horizontal Multistage Centrifugal Pump
Motor: 100% Copper Wire
Structure:: Multistage
Name: Boiler Feed Pump
Control Mode: Manual, Automatic
Design: Single-stage, Multi-stage
Driven Type: Electric Motor, Diesel Engine
Flow Rate: 10-200 M3/h
Head: 10-150 M
Inlet Diameter: 50-200 Mm
Installation: Horizontal, Vertical
Material: Cast Iron, Stainless Steel, Duplex Stainless Steel
Outlet Diameter: 32-150 Mm
Power: 3-400 KW
Shaft Seal: Gland Packing, Mechanical Seal
Speed: 1450-2900 R/min
Temperature: ≤180℃
Type: Boiler Feed Water Pump
Highlight:

Horizontal Multistage Centrifugal Pump

,

Multistage Centrifugal Pump QUZHOU ZHONGYI

,

Boiler Feed Water Pump

Basic Infomation
Place of Origin: ZHEJIANG,CHINA
Brand Name: ZY
Certification: ISO9001
Model Number: D DG
Payment & Shipping Terms
Packaging Details: plywood FOR D type pump is horizontal, single-suction multi-stage, sectional centrifugal pump
Delivery Time: 7days
Payment Terms: TT, Western Union
Supply Ability: 50UNIT/MONTH
Product Description

D type pump is horizontal, single-suction multi-stage, sectional centrifugal pump



With high efficiency, performance range, operation safety smooth, low noise, long life, easy installation and maintenance etc. For conveying water or physical chemical properties similar to other liquid water. Can also by changing the pump flow components material, seal form and increase the cooling system used in conveying hot water, oil, corrosive or containing abrasive media. Product executive JB/T1051-93 "multistage centrifugal pump water of" types and basic parameters for standard.



Scope of application:



Suitable for industrial and urban water supply and drainage, high-rise building charging water supply, garden sprinkler irrigation, fire booster, distant distance water delivery, heating, bathroom, etc, cold and hot water circulation pressurization and equipment matching, etc., especially suitable for small boiler feed water.



Product features:

1, hydraulic model is advanced, high efficiency, performance range.

2, pump smooth operation, low noise.

3, shaft seals use soft packing seal or mechanical seal, seal, and safe and reliable, simple structure, convenient maintenance.

4, shaft to all the seal structure, ensure the not contact with the media, no corrosion and long service life.

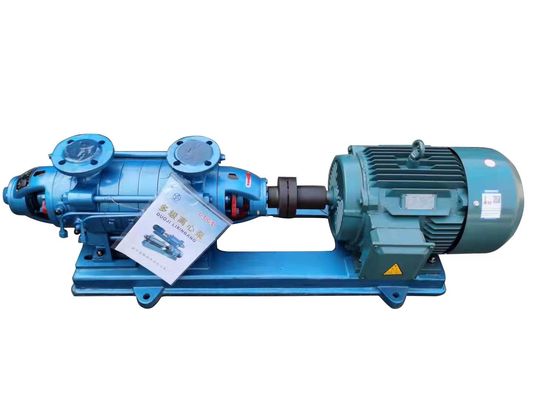

D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction 0

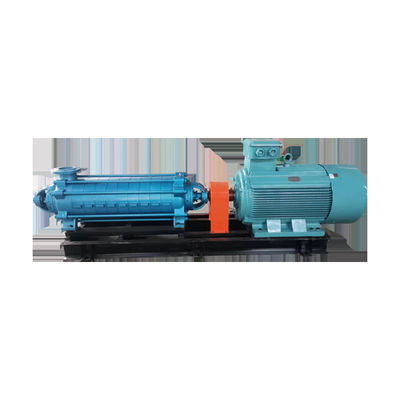

D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction 1

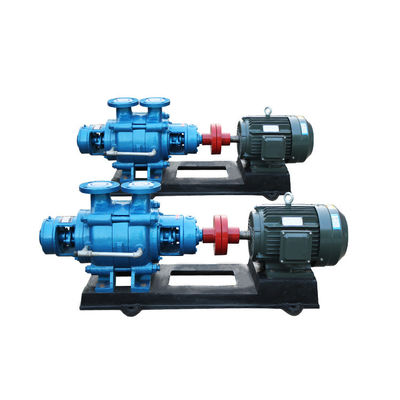

D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction 2

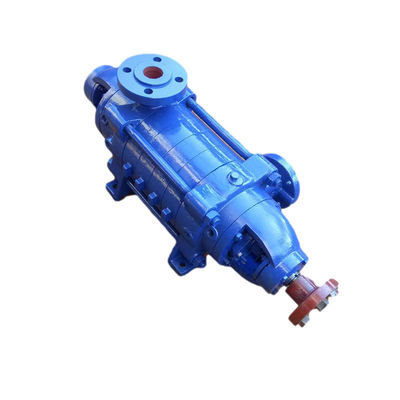

D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction 3

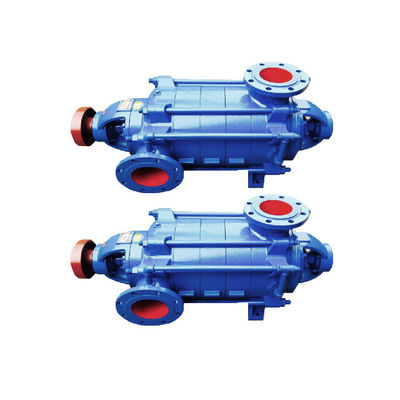

D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction 4

D Type Boiler Feed Water Pump Horizontal Multistage Centrifugal Pump Single Suction 5
