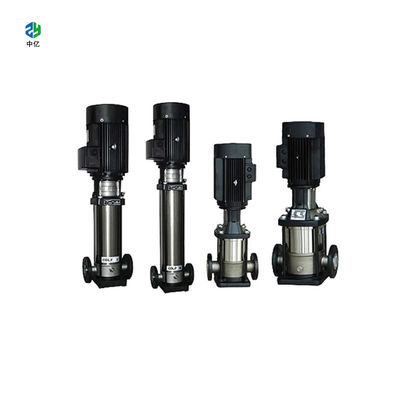

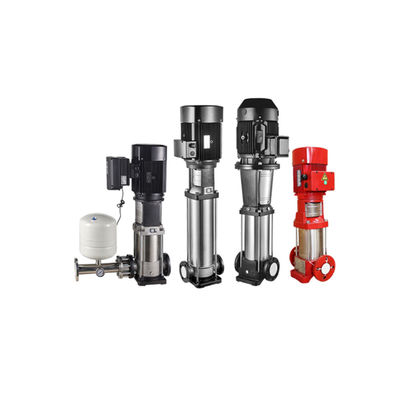

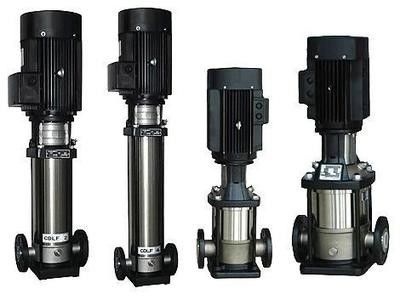

Speed 1450-2900 Rpm Vertical Multistage Centrifugal Pump Including Protection Class IP55 and Inlet Outlet Diameter DN25-DN500 for HVAC Systems

Product Description:

The Vertical Multistage Centrifugal Pump is an advanced pumping solution designed to meet the demanding requirements of various industrial, commercial, and municipal applications. Renowned for its reliability, efficiency, and compact design, this pump type is engineered to provide superior performance in fluid transport systems that require high head and pressure capabilities. With a head range of 10 to 200 meters, it is suitable for a wide array of applications, including water supply, pressure boosting, irrigation, and industrial processes.

One of the defining features of this vertical multistage centrifugal pump is its carefully engineered vertical centrifugal pump parts. These components are precision manufactured to ensure optimal hydraulic performance and durability. The pump incorporates multiple impellers stacked vertically, which allows it to generate high pressure while maintaining a relatively small footprint. This multi-stage configuration is particularly advantageous when space is limited, making these pumps an excellent choice for installations where compactness is essential.

The inlet and outlet diameter options for this pump range from DN25 to DN500, providing flexibility to accommodate different flow rates and piping requirements. This wide range makes the pump adaptable to various system sizes, from small-scale applications to large industrial setups. The versatility of the inlet/outlet diameters ensures seamless integration into existing fluid systems without the need for extensive modifications.

Durability and protection are critical aspects of any pumping equipment, and this Vertical Multistage Centrifugal Pump excels in these areas. It features a protection class rating of IP55, which means the pump is well-protected against dust ingress and water jets from any direction. This level of protection ensures reliable operation even in harsh environments, reducing maintenance frequency and extending service life.

Thermal resistance is another important consideration in pump design. This pump comes with insulation classes F and H, which indicate the quality and temperature tolerance of the electrical insulation materials used in the motor windings. The F class insulation supports operation at higher temperatures, while the H class offers even greater thermal endurance. This allows the pump to handle fluids with maximum temperatures up to 120℃ without compromising motor integrity or performance.

The compact nature of these multi-stage vertical pumps makes them highly advantageous for installations where floor space is limited. Their vertical orientation not only saves space but also simplifies maintenance by facilitating easier access to the pump components. The modular design of the vertical centrifugal pump parts allows for straightforward disassembly and reassembly, reducing downtime and maintenance costs.

In addition to its compactness, the pump’s multi-stage design ensures smooth and efficient operation. By utilizing multiple impellers in series, the pump achieves higher pressures with lower energy consumption compared to single-stage pumps. This results in improved energy efficiency and lower operating costs over the pump’s lifespan.

Overall, the Vertical Multistage Centrifugal Pump represents a robust and versatile pumping solution. Its combination of high head capability, flexible inlet/outlet diameters, strong protection class, advanced insulation, and compact multi-stage vertical pumps design makes it an ideal choice for engineers and facility managers seeking reliable and efficient fluid handling equipment. Whether used in water treatment plants, HVAC systems, agricultural irrigation, or industrial processing, this pump delivers consistent performance and long-term value.

Features:

• Product Name: Vertical Multistage Centrifugal Pump
• Type: Vertical multi stage pump
• Max. Temperature: 120℃
• Max. Working Pressure: 1.6-10.0 MPa

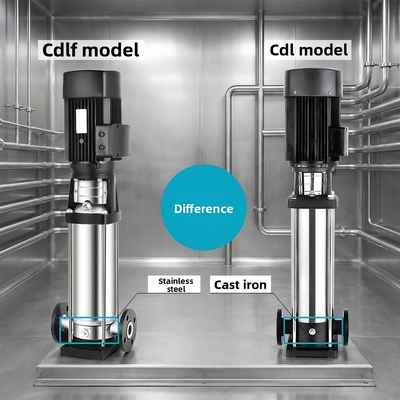

• Material Options: Cast Iron, Stainless Steel, Duplex Stainless Steel
• Certificate: CE, ISO9001 certified
• Warranty: 1 Year
• Ideal for use as a Booster pump set
• Available as Custom Engineered Vertical Multi-Stage Booster Pump Stations

Technical Parameters:

Applications:

The QZZY CDL(F) Centrifugal Vertical Multistage Pump is an advanced pumping solution designed to meet the diverse needs of various industrial and commercial applications. Manufactured in Zhejiang Province, Wenzhou, this vertical multi stage pump is renowned for its high efficiency, reliability, and durability. Certified with ISO9001 and CE, the pump ensures superior quality and performance standards, making it an excellent choice for demanding fluid transfer tasks.

This Centrifugal Vertical Multistage Pump is ideal for occasions where high head and stable flow rates are essential. With a head range of 10 to 200 meters and power options from 0.75 to 150 KW, it can efficiently handle water supply, pressure boosting, and circulation in both residential and industrial settings. Its capability to operate at a maximum temperature of 120℃ makes it suitable for heating systems, air conditioning, and hot water circulation.

In industrial scenarios, the CDL(F) vertical multi stage pump excels in boiler feed systems, reverse osmosis water treatment, and cooling tower water circulation. Its mechanical and packing shaft seals ensure leak-free operation, enhancing reliability in continuous service environments. The pump is also widely used in irrigation systems, fire fighting systems, and water purification plants, demonstrating versatility across multiple sectors.

Thanks to its compact vertical design, the QZZY Centrifugal Vertical Multistage Pump requires minimal installation space, which is advantageous in urban infrastructure projects and manufacturing facilities. The pump’s robust construction and plywood packaging ensure safe and secure delivery, with a supply capacity of 100 pieces per month and a delivery time of just 3-7 days, accommodating urgent project timelines.

For businesses looking to optimize fluid management solutions, the minimum order quantity of 2 units and competitive pricing ranging from 100 to 3000 USD make the QZZY CDL(F) pump a cost-effective and reliable option. Payment via TT further simplifies transactions, supporting smooth procurement processes.

In summary, the QZZY Centrifugal Vertical Multistage Pump is perfectly suited for a wide range of application occasions and scenarios, including municipal water supply, industrial fluid transfer, agricultural irrigation, HVAC systems, and fire protection. Its certified quality, versatile performance, and efficient design position it as a trusted choice for engineers and project managers seeking dependable vertical multi stage pump solutions.

Customization:

QZZY offers customized solutions for our Compact, Multi-Stage Vertical Pumps, specifically designed to meet your unique requirements. Our Vertical Multistage High Pressure Centrifugal In-line Pumps, model CDL(F), are engineered with precision and reliability, manufactured in Wenzhou, Zhejiang Province, ensuring top quality verified by ISO9001 and CE certifications.

We specialize in Custom Engineered Vertical Multi-Stage Booster Pump Stations tailored to your operational needs. With a supply ability of 100 PCS per month and a minimum order quantity of 2 units, we provide flexible pricing ranging from 100 to 3000 USD. Our pumps feature durable materials including Cast Iron, Stainless Steel, and Duplex Stainless Steel, ensuring longevity and performance under a maximum temperature of 120℃.

Each Vertical Multistage Centrifugal Pump is equipped with either Mechanical Seal or Packing Seal shaft seals, offering reliable protection with an IP55 protection class. We package all products securely in plywood to ensure safe delivery within 3-7 days. Payment terms are TT, making transactions smooth and efficient.

Trust QZZY for compact, efficient, and customizable vertical multistage pump solutions that perfectly fit your industrial needs.

Support and Services:

Our Vertical Multistage Centrifugal Pumps are designed for high efficiency and reliable performance in various industrial applications. To ensure optimal operation, we provide comprehensive technical support and services tailored to your specific needs.

Our technical support team offers expert guidance on pump selection, installation, and maintenance procedures to maximize the lifespan and efficiency of your equipment. We assist with troubleshooting and diagnostics to quickly resolve any operational issues that may arise.

We also provide detailed product documentation, including operation manuals, maintenance guides, and performance curves, to help you understand and maintain your vertical multistage centrifugal pump effectively.

For maintenance and repair, our services include routine inspections, parts replacement, and overhaul services performed by trained technicians using genuine manufacturer parts to ensure the longevity and reliability of your pump.

Additionally, we offer customized service plans and training programs to empower your team with the knowledge and skills required to maintain and operate the pump safely and efficiently.

Our commitment is to deliver outstanding technical support and service excellence to keep your Vertical Multistage Centrifugal Pump running at peak performance.
