WQK Submersible Sewage Pump with cutter impeller use for Domestic Wastewater, Sewage,
Detailed Product Description
WQK Series
Sewage Submersible sewage pump is mainly used for the carriage of domestic wastewater, sewage, human waste and scraps of paper with short fibers, sawdust, starch, sand, ore particles and other suspended solids and non-corrosive medium, is pumped liquid temperature than 40 °C, the density is not greater than 1200kg/m3, ph value of ~ 9. The use of double mechanical seal pumps and rotating impeller, impeller made of stainless steel, wear-resistant, non-blocking, being caught with a small, compact, portable and easy.
PUMP MODEL
| 型号 | 口径 | 流量(m2/h) | 扬程(m) | 功率(KW) | 转速 | 电压 (V) |
| r/min | ||||||
| 50GNWQ10-10-0.75 | 2寸 | 10 | 10 | 0.75 | 2900/2极 | 220/380V |
| 50GNWQ12-10-1.1 | 2寸 | 12 | 10 | 1.1 | 2900/2极 | 220/380V |
| 50GNWQ15-15-1.5 | 2寸 | 15 | 15 | 1.5 | 2900/2极 | 380V |
| 65GNWQ25-7-1.5 | 2.5寸 | 25 | 7 | 1.5 | 2900/2极 | 380V |
| 50GNWQ10-20-2.2 | 2寸 | 10 | 20 | 2.2 | 2900/2极 | 380V |
| 65GNWQ25-15-2.2 | 2.5寸 | 25 | 15 | 2.2 | 2900/2极 | 380V |
| 80GNWQ35-10-2.2 | 3寸 | 35 | 10 | 2.2 | 2900/2极 | 380V |
| 50GNWQ20-22-3 | 2寸 | 35 | 15 | 3 | 2900/2极 | 380V |
| 65GNWQ35-15-3 | 2.5寸 | 35 | 15 | 3 | 2900/2极 | 380V |
| 80GNWQ43-13-3 | 3寸 | 43 | 13 | 3 | 2900/2极 | 380V |
| 65GNWQ26-22-4 | 2.5寸 | 26 | 22 | 4 | 2900/2极 | 380V |
| 80GNWQ45-17-4 | 3寸 | 45 | 17 | 4 | 2900/2极 | 380V |
| 100GNWQ65-12-4 | 4寸 | 65 | 12 | 4 | 2900/2极 | 380V |
| 80GNWQ45-20-5.5 | 3寸 | 45 | 20 | 5.5 | 2900/2极 | 380V |
| 100GNWQ65-15-5.5 | 4寸 | 65 | 15 | 5.5 | 2900/2极 | 380V |
| 80GNWQ45-25-7.5 | 3寸 | 45 | 25 | 7.5 | 2900/2极 | 380V |
| 100GNWQ100-15-7.5 | 4寸 | 100 | 15 | 7.5 | 2900/2极 | 380V |
| 150GNWQ120-12-7.5 | 6寸 | 120 | 12 | 7.5 | 2900/2极 | 380V |

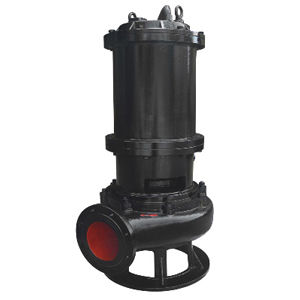

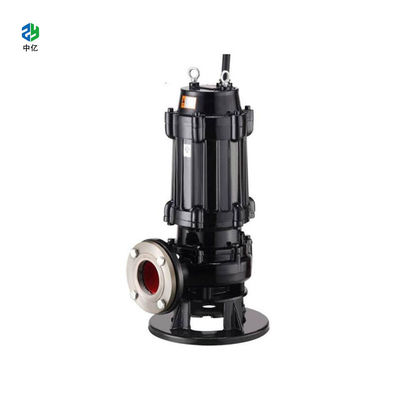

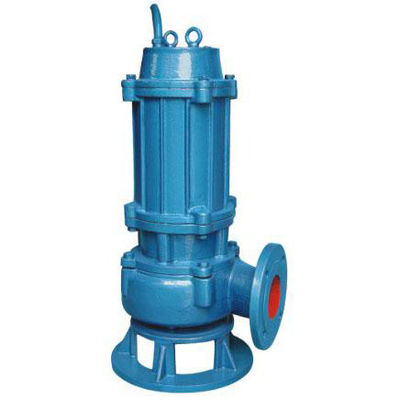

SUBMERSIBLE SEWAGE PUMP PHOTOS
