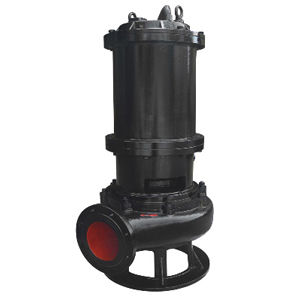

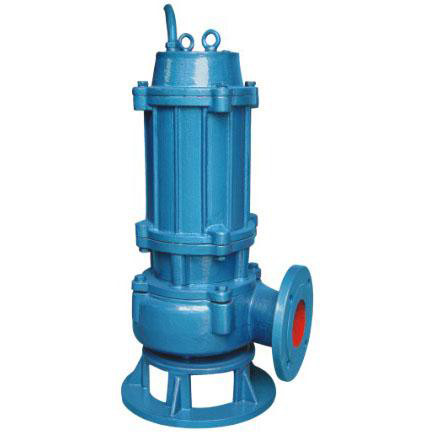

10m3/H JYWQ Submersible Sewage Pump Automatic Agitating With Cooling Jacket

10m3/H JYWQ Submersible Sewage Pump Automatic Agitating With Cooling Jacket

Brand Name: ZY
Model Number: JPWQ
MOQ: 2
Price: 250-500USD
Payment Terms: TT, Western Union, MoneyGram
Supply Ability: 45PCS/MONTH
Detail Information
Place of Origin:
quzhou,ZHEJIANG ,CHINA
Certification:
ISO9001
Application:
Sewage Treatment
Brand:
OEM
Flow Rate:
10m³/h
Frequency:
50Hz
Head:
10m
Inlet Diameter:
50mm
Insulation Class:
F
Material:
Stainless Steel
Outlet Diameter:
50mm
Power:
1.5kw
Protection Grade:
IP68
Size:
500*400*400mm
Packaging Details:
PLYWOOD
Supply Ability:
45PCS/MONTH
Highlight:

JYWQ Submersible Sewage Pump

,

10m3/H Submersible Sewage Pump

,

JYWQ submersible pump underwater

Product Description

JYWQ Automatic Agitating Submersible Sewage Pump with cooling jacket



Feature:



JYWQ and JPWQ series automatic agitating sewage pumps have been added with
automatic agitating device on the basis of ordinary sewage pump. This device rotates
along with the motor shaft to produce considerable agitating power. The residual
in the sewage pool will be agitated into suspended material that will be pumped
in and then discharged out.

JPWQ pumps are fitted with internal circulation cooling system to ensure safe operation
under waterless conditions.

Working conditions:
1) Medium temperature: less than 60°C
2) pH value: 4~10
3) Gravity of medium: less than 1~1.3kg/dm3. ;
4) Can be fitted with floating switch and control panel.

Specifications



10m3/H JYWQ Submersible Sewage Pump Automatic Agitating With Cooling Jacket 0

 JYWQ and JPWQ series automatic agitating submersible sewage pumps have been added with  cooling jacket



10m3/H JYWQ Submersible Sewage Pump Automatic Agitating With Cooling Jacket 1
