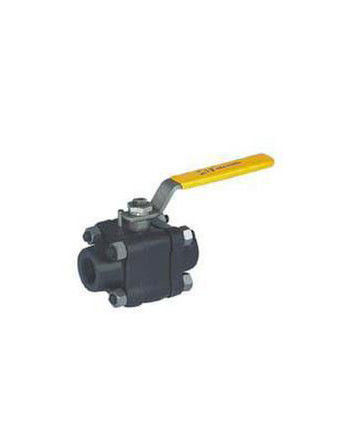

SS316 SS304 A105 Steel Ball Valves Forged Steel Threaded Ball Valve

SS316 SS304 A105 Steel Ball Valves Forged Steel Threaded Ball Valve

Brand Name: ZY
MOQ: 2
Price: 20USD-100USD
Payment Terms: , T/T, Western Union, MoneyGram
Supply Ability: 10pcs/week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Material:
Forged
Color:
Black
Anti-Static:
Yes, No
Body:
Full Port, Standard Port
Connection:
Threaded, Socket Weld, Flanged, Butt Weld
Design:
Floating Ball, Trunnion Mounted
End Connection:
Threaded, Socket Weld, Flanged, Butt Weld
Fire Safe:
Yes, No
Handle:
Lever, Gear, Electric
Operation:
Manual, Gear Operated, Pneumatic, Electric
Pressure:
Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500
Seat:
Soft Seat, Metal Seat
Stem:
Rising Stem, Non-Rising Stem
Temperature:
Low Temperature, Cryogenic
Vacuum Service:
Yes, No
Packaging Details:
plywood
Supply Ability:
10pcs/week
Highlight:

Forged Steel Threaded Ball Valve

,

Threaded Ball Valve SS316

,

A105 Steel Ball Valves

Product Description

SS316 SS304 A105 Steel Ball Valves Forged Steel Threaded Ball Valve

Specifications

1) Connections: SW
2) Dimensions: 1/4"~2"
3) Pressure-Temperature Class: 800Lb

1,Specification:



1) Connections: threaded end (NPT / BSPT / PT /RC )

socket welding



2) Dimensions: 1/2"~2"



3) Pressure Class: 150LB-1500LB



4) Valve Body Material: SS316 / SS304 / A105



5) Valve Seat Material: PTFE / Nylon / PPL



6)Suitable medium:gas,oil,water,and some corrosive liquid



7)Features:



1. Adjustable stem packing



2. Pure Teflon seals and seats



3. Temperature range: -60 to 450 ° F



4. Blow-out proof stem, ball are made of ss316 or customer request



5.100% leakage tested at 100 psi air under water



6. Hydrostatic test pressure: 1500psi



7. Locking device (option)



8)Type:



1.One Piece Ball Valve



2.Two Pieces Ball Valve



3.Three Pieces Ball Valve



4.Thin Type Ball Valve



5.Three-way Ball Valve
