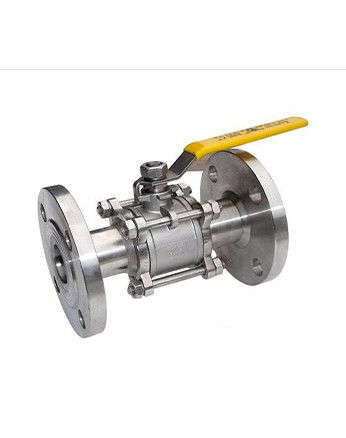

SS304 SS316 CF8M Three Piece Flange Ball Valve Cast Iron Material

Brand Name:	RTK
Model Number:	TQ304
MOQ:	2
Price:	200USD
Payment Terms:	T/T, L/C
Supply Ability:	10pcs/week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Material:

Castiron

Media:

Water

Packaging Details:

plywood

Supply Ability:

10pcs/week

Highlight:

CF8M Three Piece Flange Ball Valve

SS316 Three Piece Flange Ball Valve

SS304 Three Piece Flange Ball Valve

Product Description

Three-piece Flange Ball Valve

Specifications

1)Three piece flange ball valve
2)Fine cast stainless steel material,
3)ANSI16.4 flanges
4)ISO 9008 CE Certified IAF certif

Type:Flagned ball valve

1.Three piece flange ball valve Three-piece flange ball valve,stainless steel ball valve

2.Product Name: Three-piece flange ball valve
3.Material: SS304, SS316, CF8M, CF8
4.Size: 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4"
5.Working Pressure: 1.6-4.0Mpa
6.Temperature Range: -40~180~280
7.Suitable medium: Water, oil, air and some Corrosive liquid.

8.Pressure:150LB=2.0MPa. 300LB=5.0MPa. 600LB=10.0MPa. 800LB=14.0MPa.

Material List
NO	Part Name	Material
1	Body	WCB	CF8M
2	Cap	WCB	CF8M
3	Seat	PTFE	RPTFE
4	Ball	SS304	SS316
5	Seal Gasket	PTFE
6	Stem Seal	PTFE
7	Stem	SS316
8	Anti-Static Device	SS304
9	Stem Packing	PTFE
10	Packing Gland	SS304
11	Spring washer	SS304
12	Handle	SS304
