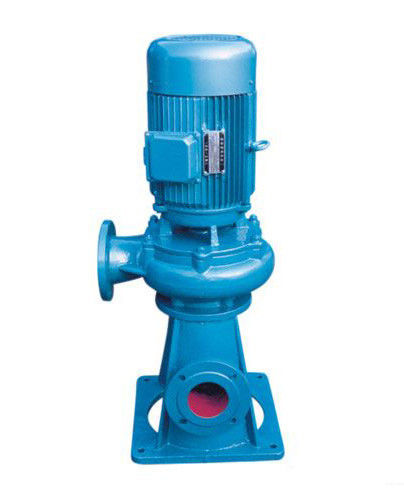

WL vertical sewage pump
Product description:
WL Non-clogging Vertical Sewage Pump,Submersible Dirty Water Pump is the new type product developed on the basis of combination of foreign advanced technology and domestic water pump features, which has remarkable features of energy-saving, anti-winding, anti-blocking, automatic installation and automatic control. WL Non-clogging Vertical Sewage Pump Submersible Dirty Water Pump has a unique effect in the case of transporting solid particles and long fibers litter.
The pump, applying a unique impeller structure and new mechanical seal, can effectively transport solids particles and long fibers. Compared with the conventional one, the impeller of this pump applying single channel or dual channel form, which is similar to a pipe section of the same size, has a very good over-current resistance and can be put into operation without vibration.
Technical data:
Structure: single stage Material: cast iron
Flow: up to 4500 m3/h Head: up to 45 m
Application:
Urban sewage treatment, mining, rural biogas digesters, irrigation and other industries
Model description:
100 LW P 100–15–7.5
100 ------------------- Outlet diameter 100 mm
LW ------------------- Non-clogging vertical sewage pump
P ---------------------- * P stainless steel
* B explosion proof
100 ------------------- Flow 100m3/h
15 -------------------- Head 15 m
7.5 ------------------- Motor power 7.5 kW
