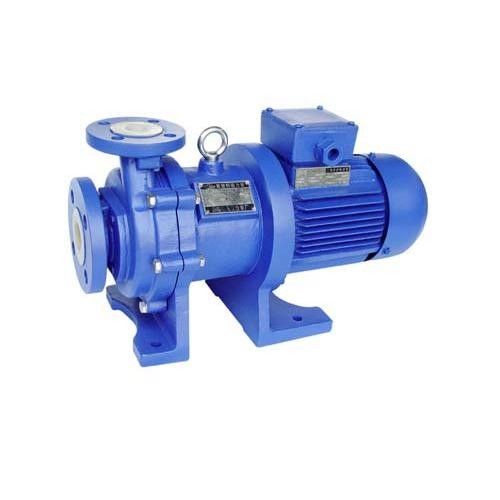

CQB type magnetic pump is applied in petroleum, chemical, pharmaceutical, metallurgy, electroplating, environmental protection, food, film laboratory, water treatment, defense and other industries. It is the ideal equipment for transporting flammable, explosive, volatile, toxic, rare and precious liquid and a variety of corrosive liquids.
| Pump Model | Rated flow (m3/h) | Head (m) | (NPSH)r (m) | Rotating speed (r/min) | Efficiecy (%) | Motor Model | Power (kw) |
| CQB32-20-125 | 3.2 | 20 | 5.0 | 2900 | 35 | YB802-2 | 1.1 |
| CQB32-20-160 | 32 | 3.5 | YB90S-2 | 1.5 | |||
| CQB40-25-105 | 6.3 | 12.5 | 6.0 | 45 | YB802-2 | 1.1 | |
| CQB40-25-125 | 20 | 5.0 | 42 | YB90L-2 | 2.2 | ||
| CQB40-25-160 | 32 | 3.5 | 35 | YB100L-2 | 3 | ||
| CQB40-25-200 | 50 | 3.5 | 28 | YB132S1-2 | 5.5 | ||
| CQB50-40-85 | 12.5 | 8 | 3.5 | 56 | YB802-2 | 1.1 | |
| CQB50-32-105 | 12.5 | 54 | YB90L-2 | 2.2 | |||
| CQB50-32-125 | 20 | 50 | YB100L-2 | 3 | |||
| CQB50-32-160 | 32 | 46 | YB112M-2 | 4 | |||
| CQB50-32-200 | 50 | 39 | YB132S1-2 | 7.5 | |||
| CQB50-32-250 | 80 | 30 | YB160M2-2 | 15 | |||
| CQB65-50-125 | 25 | 20 | 4.0 | 58 | YB132S1-2 | 5.5 | |
| CQB65-50-160 | 32 | 56 | YB132S2-2 | 7.5 | |||
| CQB65-40-200 | 50 | 49 | YB160M2-2 | 15 | |||
| CQB65-40-250 | 80 | 46 | YB160M2-2 | 22 | |||
| CQB80-65-125 | 50 | 20 | 4.0 | 66 | YB132S2-2 | 7.5 | |
| CQB80-65-160 | 32 | 64 | YB160M2-2 | 15 | |||
| CQB80-50-200 | 50 | 60 | YB160M2-2 | 15 | |||
| CQB80-50-250 | 80 | 55 | YB200L1-2 | 30 | |||
| CQB100-80-125 | 100 | 20 | 4.0 | 72 | YB160M1-2 | 11 | |
| CQB100-80-160 | 32 | 70 | YB160L-2 | 18.5 | |||
| CQB100-65-200 | 50 | 68 | YB200L1-2 | 30 | |||
| CQB100-65-250 | 80 | 64 | YB200L2-2 |
37 |
