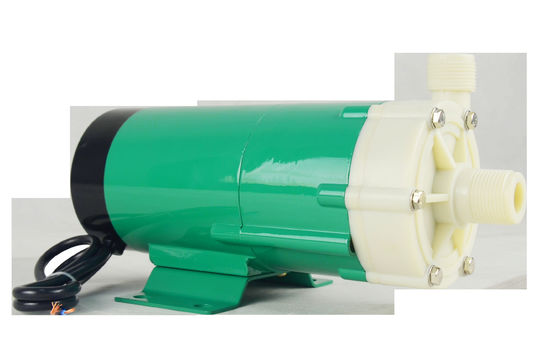

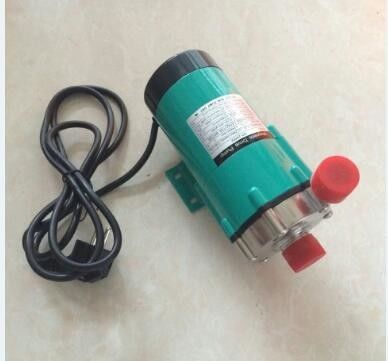

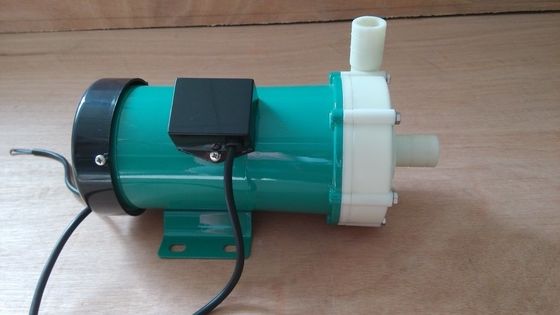

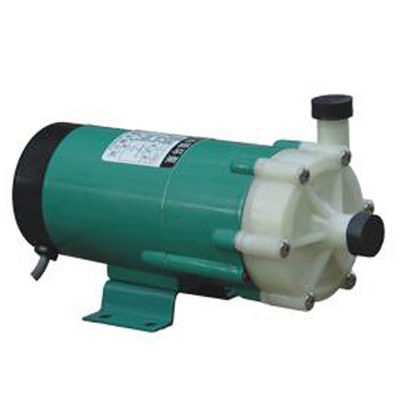

PP SS304 Magnetic Drive Pump for Alumina film processing equipment, wire drawing, iron and steel rolling oil removal and pickling, vehicle painting before oil removal and pickling treatment, tita

PP SS304 Magnetic Drive Pump for Alumina film processing equipment, wire drawing, iron and steel rolling oil removal and pickling, vehicle painting before oil removal and pickling treatment, tita

Brand Name:	ZY
Model Number:	MP
MOQ:	1
Price:	150-300USD
Payment Terms:	TT, Western Union
Supply Ability:	30PCS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

zhejiang china

Certification:

ISO9001

Connection Size:

1/2 - 3 Inch

Flow Rate:

2-300 GPM

Horsepower:

1/2 - 5 HP

Material:

Stainless Steel/ Plastic

Phase:

Single/Three

Power Source:

Electric

Pressure Range:

Up To 150 PSI

Product Name:

Magnetic Drive Pump

Temperature Range:

Up To 250°F

Voltage:

220/380V

Packaging Details:

PLYWOOD FOR MP

Supply Ability:

30PCS/MONTH

Highlight:

SS304 Magnetic Drive Pump

Green PP Magnetic Drive Pump

220V Mag Drive Water Pump

Product Description

Magnetic Drive Pump for Alumina film processing equipment, wire drawing, iron and steel rolling oil removal and pickling, vehicle painting before oil removal and pickling treatment, tita

Detailed Product Description

1.Good sealing
2.Strong wear resistance and corrosion resistance
3.Appearance
4 low noise

Product Description

MP Magnetic Driven Circulation Pump operation in even the shaft and impeller, respectively, equipped with magnetic coupling to attract each other, without accompanied by the traditional mechanical seals, which is completely sealed. Rotation torque motor is driven by active magnetic and gravitational magnetic drive leaves the work operation. Today the usual magnetic drive pump is a great disadvantage in the case of absolute lack of liquid or non-functioning machine will be destroyed, to the user to add a magnetic drive pump you do not have to worry about. It is mining a special formula specifically designed for ceramic bearings, with a strong resistance to wear and corrosion resistance, quality and safety of its advanced performance and be absolutely guaranteed.Magnetic drive circulation pumps shall design with no seal, completely avoid the presence of traditional mechanical seal pump leak caused by corrosion of liquid contamination defects, industrial equipment is the best liquid delivery pump.

performance parameter

MODEL	tube			hightest		specific gravity	motor
	inlet	outlet	pipe	50Hz/60Hz	lift		export
	inlet	outlet	pipe	50Hz/60Hz	50Hz/60Hz		50Hz/60Hz
MP-6R	14	14	-	1/1.4	0.8	<1.2	3
MP-6RZ	14	14	-	2.1/2.7	0.8	<1.1	3
MP-10R	14	14	-	1.5/2.1	1	<1.1	6
MP-10RN	14	14	-	1.5/2.1	1	<1.1	6
MP-15R	16	16	-	2.7/3.4	1.5	<1.3	10
MP-15RN	16	16	-	2.7/3.4	1.5	<1.3	10
MP-15RM	-	-	13	2.4/3.4	1.5	<1.3	10
MP-20R	18	18	-	3.1/4.3	2	<1.2	20
MP-20RM	-	-	16	3.1/4.3	2	<1.2	20
MP-20RX	26	26	-	1.8/2.5	1	<1.3	20
MP-20RXM	-	-	20	1.8/2.5	1	<1.3	20
MP-2RZ	18	18	-	4.6/6.9	4	<1.1	20
MP-20RZM	-	-	13	4.6/6.9	4	<1.1	20
MP-30R	20	20	-	3.8/5.4	2.5	<1.3	45
MP-30RM	-	-	16	3.8/5.4	2.5	<1.3	45
MP-30RX	26	26	-	2.9/4.1	2	<1.1	45
MP-30RXM	-	-	20	2.9/4.2	2	<1.1	45
MP-30RZ	18	18	-	2.9/4.3	6	<1.1	45
MP-30RZM	-	-	13	2.9/4.4	6	<1.1	45
MP-40R	20	20	-	4.6/6.5	4	<1.1	65
MP-40RM	-	-	16	4.6/6.5	4	<1.1	65
MP-40RX	26	26	-	3.3/4.7	2	<1.1	65
MP-40RXM	-	-	20	3.3/4.7	2	<1.1	65
MP-55R	26	26	-	5.6/8.2	4	<1.2	90
MP-55RM	-	-	20	5.6/8.3	4	<1.2	90
MP-55RZ	26	26	-	5.6/8.4	8	<1.1	90
MP-55RZM	-	-	20	5.6/8.5	8	<1.1	90

PP SS304 Magnetic Drive Pump for Alumina film processing equipment, wire drawing, iron and steel rolling oil removal and pickling, vehicle painting before oil removal and pickling treatment, tita 0

PP SS304 Magnetic Drive Pump for Alumina film processing equipment, wire drawing, iron and steel rolling oil removal and pickling, vehicle painting before oil removal and pickling treatment, tita 1
