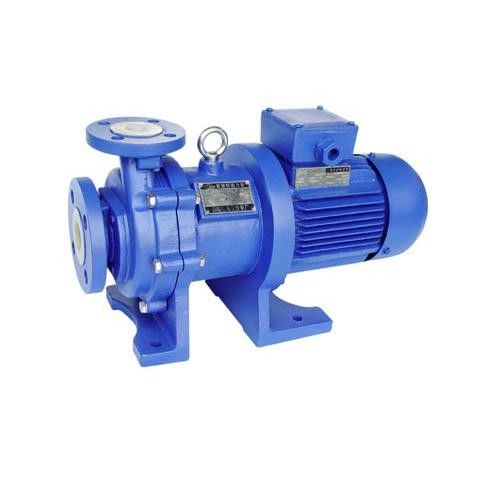

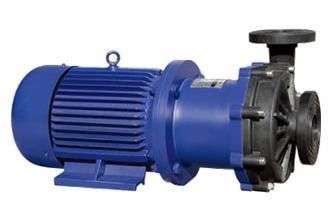

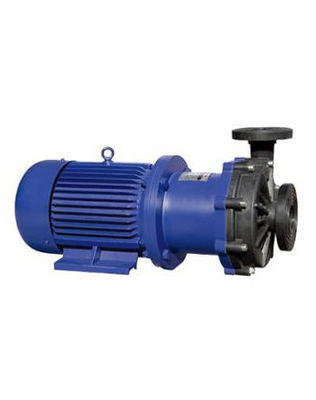

CQF Engineering plastic magnetic pump
CQB-F Engineering plastic magnetic pump material on PP
Technical Specifications
| CQF plastic magnetic pump | |||||||
| Model | Port Size |
Flow (m³/h) |
Head (m) |
Motor (kw) |
Voltage (v) |
Material | |
| Inlet(mm) | Outlet(mm) | ||||||
| 10CQF-3 | 10 | 8 | 0.9 | 3 | 0.01 | 220 |
Engineering
plastic |
| 14CQF-5 | 14 | 10 | 1.2 | 5 | 0.12 | 220/380 | |
| 16CQF-8 | 15 | 15 | 1.8 | 8 | 0.12 | 220/380 | |
| 20CQF-12 | 25 | 18 | 3 | 12 | 0.37 | 220/380 | |
| 25CQF-15 | 25 | 20 | 5.4 | 15 | 1.1 | 380 | |
| 32CQF-15 | 32 | 25 | 6.5 | 15 | 1.1 | 380 | |
| 32CQF-25 | 32 | 25 | 4.8 | 25 | 1.1 | 380 | |
| 40CQF-20 | 40 | 32 | 10.8 | 20 | 2.2 | 380 | |
| 50CQF-25 | 50 | 40 | 14.4 | 25 | 3 | 380 | |
| 50CQF-32 | 50 | 40 | 12.5 | 32 | 4 | 380 | |
| 65CQF-25 | 65 | 50 | 25 | 25 | 5.5 | 380 | |
| 65CQF-32 | 65 | 50 | 25 | 32 | 5.5 | 380 | |
|
P.S.:20CQF-12-----65CQF-32 can all fit with fire proof motor |
|||||||
Packaging Details:
Standard export carton/plywood case
Delivery Detail:
Within 10 days after receipt of payments
Q electromagnetic pump
1. Leakproof centrifugal pump
2. Compact size, high performance
3. Low noise and long service life
4. Features all in seal, no leakage and outstanding anti-corrosive performance
5. Use corundum ceramic and FRPP as manufacturing material
6. Applicable for transfer of various liquid for acid, alkali, oil, rare metal, poison and volatile etc,
especially for flammable and explosive liquid
7. Very competitive price
8. 1 year of warranty
9. Short delivery time
