Single Stage Single Suction Centrifugal Pump

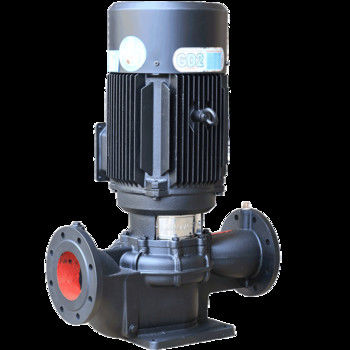

ISG Vertical In-Line Pipeline Booster Centrifugal Pump for Water, Flow 1.5-1600m3/h, Head 5-125m, Power 0.75-4Kw, Sp

ISG Vertical In-Line Pipeline Booster Centrifugal Pump for Water, Flow 1.5-1600m3/h, Head 5-125m, Power 0.75-4Kw, Sp

Brand Name:	ZY
Model Number:	ISG
MOQ:	1set
Price:	$100-$2000
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Model Number:

ISG

Structure:

Single-stage Pump

Usage:

Water

Application:

Sewage

Power:

1HP-335HP

Fuel:

Gasoline

Theory:

Centrifugal Pump

Frequency:

50hz Or 60hz Are All Available

Sealing Type:

Seal Ring

Warranty Of Pump:

12 Months

Type Of Connection:

Quick Coupling, Thread

Material:

Cast Iron/stainless Steel

Customized Product:

Available

Packaging Details:

wooden box

Supply Ability:

100set/month

Highlight:

4Kw Pipeline Booster Centrifugal Pump

Water Pipeline Booster Centrifugal Pump

125m Pipeline Booster Centrifugal Pump

Product Description

Vertical in-line pipeline booster centrifugal pump for water

1.Introduction

ISG/ series single stage single suction vertical pipeline centrifugal pumps are the second generation of high-efficiency energ-saving products.It is an ideal substitute for normal pumps like IS and D multi-stage centrifugal pumps.

Flow range is 1.5-1600m3/h

Lift head range is 5-125meters.

2.Transfering medium

1). clear water or other liquids with similar physical and chemical properties as clear water.It is applicable for industrial and urban water supply and draingage, pressurization and water supply for cold and hot water circulation for bathroom, fittings for equipment and so on.

ISG Vertical In-Line Pipeline Booster Centrifugal Pump for Water, Flow 1.5-1600m3/h, Head 5-125m, Power 0.75-4Kw, Sp 0

ISG Vertical In-Line Pipeline Booster Centrifugal Pump for Water, Flow 1.5-1600m3/h, Head 5-125m, Power 0.75-4Kw, Sp 1

o.	Model	Flow(m3/h)	Head(m)	powerkw)	Speed(rpm)
o.	Model	Flow(m3/h)	Head(m)	powerkw)	Speed(rpm)
218	50-160	6.3	8	0.75	1450
219	50-200	6.3	12.5	0.75	1450
220	50-200A	5.5	9.5	0.75	1450
221	50-250	6.3	20	1.5	1450
222	50-250A	5.6	16	1.1	1450
223	50-125(I)	12.5	5	0.75	1450
224	50-160(I)	12.5	8	0.75	1450
225	50-160(I)A	10.8	6	0.75	1450
226	50-200(I)	12.5	12.5	1.1	1450
227	50-200(I)A	11.3	10.1	0.75	1450
228	50-250(I)	12.5	20	2.2	1450
229	50-250(I)A	11.7	17.6	1.5	1450
230	50-250(I)B	10.2	13.4	1.1	1450
231	50-315(I)	12.5	32	4	1450
232	50-315(I)A	11.7	28	3	1450
233	50-315(I)B	10.2	21	3	1450
234	65-125	12.5	5	0.75	1450
235	65-160	12.5	8	0.75	1450
236	65-160A	10.8	6	0.75	1450
237	65-200	12.5	12.5	1.1	1450
238	65-200A	11.3	10.1	0.75	1450
239	65-250	12.5	20	2.2	1450
240	65-250A	11.7	17.6	1.5	1450
241	65-250B	10.2	13.4	1.1	1450
242	65-315	12.5	32	4	1450
243	65-315A	11.7	28	3	1450
244	65-315B	10.1	21	3	1450
245	65-125(I)	25	5	0.75	1450
246	65-160(I)	25	8	1.1	1450
247	65-160(I)A	21.6	6	0.75	1450
248	65-200(I)	25	12.5	2.2	1450
249	65-200(I)A	23.3	10.9	1.5	1450
250	65-250(I)	25	20	3	1450
251	65-250(I)A	22.2	15.8	2.2	1450
252	65-250(I)B	19.8	12.6	1.5	1450
253	65-315(I)	25	32	5.5	1450


254	65-315(I)A	23	27.9	4	1450
255	65-315(I)B	20.2	21	3	1450
256	80-125	25	5	0.75	1450
257	80-160	25	8	1.1	1450
258	80-160A	21.6	6	0.75	1450
259	80-200	25	12.5	2.2	1450
260	80-200A	23.3	10.9	1.5	1450
261	80-250	25	20	3	1450
262	80-250A	22.2	15.8	2.2	1450
263	80-250B	19.8	12.6	1.5	1450
264	80-315	25	32	5.5	1450
265	80-315A	23	27.9	4	1450
266	80-315B	20.2	21	3	1450
267	80-125(I)	50	5	1.1	1450
268	80-160(I)	50	8	2.2	1450
269	80-160(I)A	44.5	6.3	1.5	1450
270	80-160(I)B	44.5	6.3	1.5	1450
271	80-200(I)	50	12.5	3	1450
272	80-200(I)A	44.6	9.9	2.2	1450
273	80-250(I)	50	20	5.5	1450
274	80-250(I)A	46.7	17.4	4	1450
275	80-250(I)B	40.4	13.1	3	1450
276	80-315(I)	50	32	11	1450
277	80-315(I)A	46.7	27.9	7.5	1450
278	80-315(I)B	40.5	21	5.5	1450
279	100-125	50	5	1.1	1450
280	100-160	50	8	2.2	1450
281	100-160A	44.5	6.3	1.5	1450
282	100-200	50	12.5	3	1450
283	100-200A	44.6	9.9	2.2	1450
284	100-250	50	20	5.5	1450
285	100-250A	46.7	17.6	4	1450
286	100-250B	40.4	13.1	3	1450
287	100-315	50	32	11	1450
288	100-315A	46.7	27.9	7.5	1450
