ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump

1 Piece/Pieces
MOQ
US $200 - 1,000 / Piece
Price
ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Zhejiang, China (Mainland)
Brand Name: OEM
Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Power: 0.37-160KW
Standard Or Nonstandard: Nonstandard
Color: Blue,Red
Motor: 100% Copper Wire
Frequency: 50 /60 Hz
Application: Water Supply, Irrigation, Fire Fighting, Etc.
Flow Rate: 0.6-400m3/h
Head: 5-125m
Inlet Diameter: DN25-DN200mm
Insulation Class: F/B/H
Material: Cast Iron, Stainless Steel, Bronze, Etc.
Outlet Diameter: DN25-DN200mm
Protection Class: IP44/IP54/IP55
Speed: 1450-2900rpm
Temperature: -20℃~+120℃
Type: Single Stage Single Suction Centrifugal Pump
Voltage: 220V/380V/440V/660V/1140V
Warranty: 1 Year
High Light:

ISG Type Vertical Inline Pump

,

Vertical Inline Multistage Centrifugal Pump

,

ISG vertical inline centrifugal pump

Basic Infomation
Place of Origin: CHINA
Brand Name: ZY
Certification: ISO9001
Model Number: ISG/ISW
Payment & Shipping Terms
Packaging Details: Standard export packing or according to customers' requirement for centrifugal water pump for irrigation.
Delivery Time: After 15days
Payment Terms: T/T, Western Union
Supply Ability: 100 Piece/Pieces per Month
Product Description

ISG type inline water pump vertical inline pump



Product name

ISW horizontal single stage centrifugal pump

Introduction

ISW single-stage single-suction centrifugal pump is our technical staff of the United Nations domestic pump experts choose the domestic excellent hydraulic model, the use of IS-type centrifugal pump performance parameters, in the general vertical pump on the basis of clever combination of design, According to the use of temperature, medium and other different in the lSG type derived from the application of hot water, high temperature, corrosive chemical pump, oil pump. The series of products with high efficiency, low noise, reliable performance and so on.





Features

The pump is a vertical structure, import and export caliber the same, and located in the same center line, can be installed like a valve in the pipeline, the appearance of compact and beautiful, small footprint, low construction, such as with a protective cover can be Placed outdoors.

The impeller is directly mounted on the extended shaft of the motor, the axial dimension is short, the structure is compact, the pump and the motor bearing are arranged reasonably, can effectively balance the radial and axial load caused by the pump operation, thus ensuring the pump running smoothly and the vibration is small , Low noise

Shaft seal with mechanical seal or mechanical seal combination, the use of imported titanium seal ring, medium-sized high-temperature mechanical seal and the use of carbide material, wear-resistant seal, can effectively extend the mechanical seal life.

Easy installation and maintenance, no need to dismantle the pipe system, as long as the removal of the pump seat nut can extract all the rotor parts.

According to the requirements of the use of flow and head of the need to use the pump string, parallel operation.

The vertical and horizontal installation of the pump can be made according to the piping arrangement.



Model Show

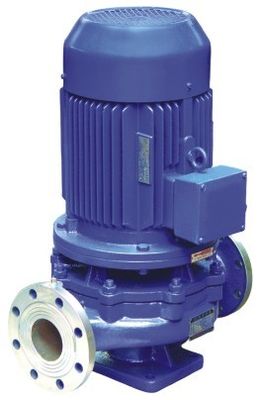

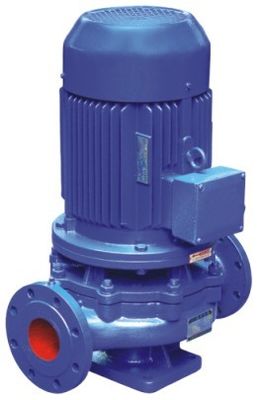

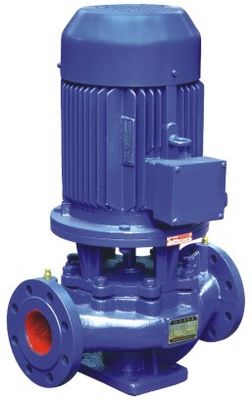

ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump 0ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump 1ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump 2ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump 3

Specification:

Product parameters
Model
Flow(m3/h)
Head(m)
Power(kw)
Outlet(mm)
Voltage(v)
Speed(r/min)
20-160
2.5
32
1.1
20
380
2900
25-125
4
20
0.75
25
380
2900
25-160
4
32
1.5
25
380
2900
32-125
4.5
20
0.75
32
380
2900
32-260
4.5
32
1.5
32
380
2900
32-200
4.5
50
3
32
380
2900
40-100
6.3
32
2.2
40
380
2900
40-125
6.3
20
1.1
40
380
2900
40-160
6.3
32
2.2
40
380
2900
40-200
6.3
80
7.5
40
380
2900
50-100
12.5
12.5
1.1
50
380
2900
50-125
12.5
20
1.5
50
380
2900
50-160
12.5
32
6
50
380
2900
50-200
12.5
50
5.5
50
380
2900
50-250
12.5
80
11
50
380
2900
65-100
12.5
125
1.5
65
380
2900
65-125
25
12.5
3
65
380
2900
65-160
25
20
4
65
380
2900
65-200
25
32
7.5
65
380
2900
65-250
25
50
15
65
380
2900
65-315
25
80
30
65
380
2900
80-100
50
12.5
3
80
380
2900
80-125
50
20
5.5
80
380
2900
80-160
50
32
7.5
80
380
2900
80-200
50
50
15
80
380
2900
80-250
50
80
22
80
380
2900
80-315
50
125
37
80
380
2900
80-350
50
150
55
80
380
2900
100-100
100
12.5
5.5
100
380
2900
100-125
100
20
11
100
380
2900
100-165
100
32
15
100
380
2900
100-200
100
50
22
100
380
2900
100-250
100
80
37
100
380
2900
100-315
100
125
75
100
380
2900
100-350
100
150
90
100
380
2900
125-100
160
12.5
11
125
380
2900
125-125
160
20
15
125
380
2900
125-160
160
32
22
125
380
2900
125-200
160
50
37
125
380
2900
125-250
160
80
55
125
380
2900
125-315
160
125
90
125
380
2900
150-125
160
20
15
150
380
2900
150-160
160
32
22
150
380
2900
150-200
160
50
37
150
380
2900
150-315
200
125
110
150
380
2900
150-350
160
150
110
150
380
2900
200-270
400
80
132
200
380
2900
200-330
400
128
220
200
380
2900

ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump 4

ISG Type Vertical Inline Pump Vertical Inline Multistage Centrifugal Pump 5
