Introduction
1. Summarize

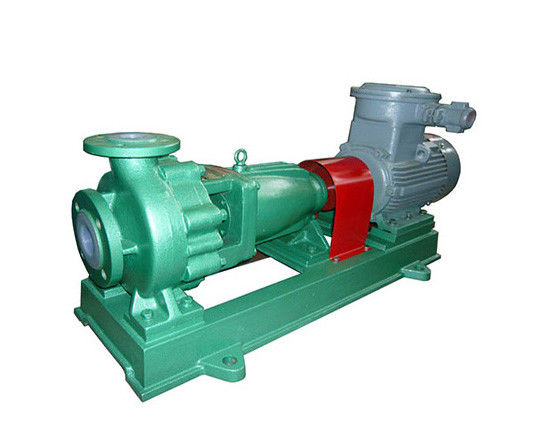

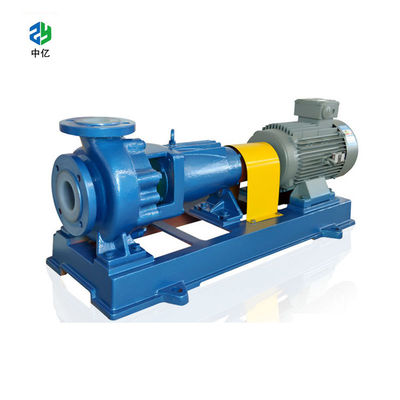

IHF type lining fluorine centrifugal pump is a single-stage single-suction centrifugal pump designed according to the international standard ISO2858. It has high temperature and strong corrosion resistance and is widely used in chemical, pharmaceutical, petroleum, metallurgy, electric power, electroplating, printing and dyeing, pesticide, paper, jewelry, chemical fiber and other industries.
2. Usage
This pump can be used to ransport sulfuric acid, nitro-hydrochloric acid, strong oxidative and strong corrosive media, it is one of the most advanced corrosion- proof equipments at present.
3. Characteristic
Anti- corrosion, wearability, high temperature resistance,nonaging, high mechanical strength, non-toxin decomposition and wide temperature range of use
| Model |
Flow m3/h |
heasd M |
effect % |
汽蚀余量 m |
进口×出口 mm |
power Kw |
整机质量 Kg |
| IHF25-20-125 | 3.2 | 20 | 32 | 2.5 | 25×20 | 1.1 | 75 |
| IHF25-20-250 | 3.6 | 80 | 18 | 2.5 | 25×20 | 7.5 | 225 |
| IHF32-20-125 | 3.2 | 20 | 32 | 2.5 | 32×20 | 1.1 | 75 |
| IHF40-25-125 | 6.3 | 20 | 30 | 2.5 | 40×25 | 1.5 | 75 |
| IHF40-25-160 | 6.3 | 32 | 30 | 3 | 40×25 | 3 | 124 |
| IHF40-25-200 | 6.3 | 50 | 20 | 3 | 40×25 | 5.5 | 170 |
| IHF40-32-250 | 6.3 | 80 | 20 | 5 | 40×32 | 11 | 255 |
| IHF50-32-125 | 12.5 | 20 | 52 | 3.2 | 50×32 | 2.2 | 110 |
| IHF50-32-160 | 12.5 | 32 | 47 | 3.2 | 50×32 | 4 | 135 |
| IHF50-32-200 | 12.5 | 50 | 40 | 3.2 | 50×32 | 7.5 | 180 |
| IHF50-32-250 | 12.5 | 80 | 34 | 5 | 50×32 | 11 | 255 |
| IHF65-50-125 | 25 | 20 | 61 | 3.5 | 65×50 | 3 | 135 |
| IHF65-50-160 | 25 | 32 | 56 | 3.5 | 65×50 | 5.5 | 155 |
| IHF65-40-200 | 25 | 50 | 51 | 3.5 | 65×40 | 11 | 210 |
| IHF65-40-250 | 25 | 80 | 48 | 3.5 | 65×40 | 18.5 | 360 |
| IHF80-65-125 | 50 | 20 | 65 | 4 | 80×65 | 5.5 | 195 |
| IHF80-65-160 | 50 | 32 | 64 | 4 | 80×65 | 11 | 228 |
| IHF80-50-200 | 50 | 50 | 63 | 4 | 80×50 | 15 | 250 |
| IHF80-50-250 | 50 | 80 | 56 | 4.5 | 80×50 | 30 | 480 |
| IHF100-80-125 | 100 | 20 | 65 | 4.5 | 100×80 | 11 | 245 |
| IHF100-80-160 | 100 | 32 | 70 | 5 | 100×80 | 15 | 250 |
| IHF100-65-200 | 100 | 50 | 68 | 5 | 100×65 | 30 | 480 |
| IHF100-65-250 | 100 | 80 | 65 | 5 | 100×65 | 45 | 630 |
| IHF125-80-160 | 160 | 32 | 64 | 5 | 125×80 | 30 | 460 |
| IHF125-100-200 | 200 | 50 | 65 | 6 | 125×100 | 55 | 660 |
| IHF125-100-250 | 200 | 80 | 68 | 6 | 125×100 | 75 | 850 |
