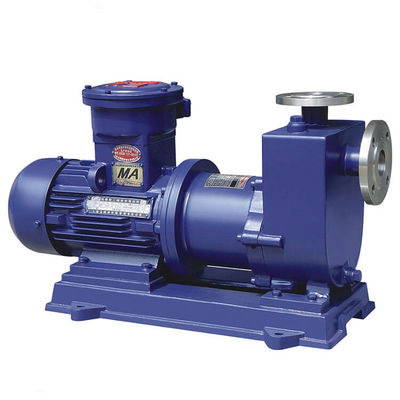

Multi Purpose Stainless Steel Magnetic Pump Self Priming Centrifugal Pump

Detail Information

Place of Origin:

CHINA

Color:

Blue

Model:

ZCQ

Material:

Castiron

Packaging Details:

plywood

Supply Ability:

10pcs/week

Highlight:

Product Description

1. Profile

MODEL: ZCQ

NAME: ZCQ Self-priming Stainless Steel Magnetic Pump 3kw

Caliber : 20~100mm

Flow : 3~100m³/h

Head : 12~50m

Power: 0.37~30Kw

Speed: 2900r/min

Working Pressure: ≤1.6Mpa

Medium Tempreture: ≤99^oC

Material: 304 316L

It can be widely used in petroleum, chemical, pharmacy, electroplating, printing and dyeing,

food industries, for their supply and drainage of acid, alkali, oil and precious liquid, venom,

volatile liquids.Especially the supply and drainage of easy leaked, flammable, explosive liquid.

2. Parameter

ZCQ type of SS magnetic pump performance parameter table
model	bore		lift	flow	motor power	rotate speed	voltage	self-priming
	inlet	outlet	m	l/min	kw	r/min	v	m/3
	mm	mm
ZCQ25-20-115	25	20	15	110	1.1	2900	380	4
ZCQ32-25-115	32	25	15	110	1.1	2900	380	4
ZCQ32-25-145	32	25	25	110	1.1	2900	380	4
ZCQ40-32-132	40	32	20	180	2.2	2900	380	4
ZCQ40-32-160	40	32	32	180	4	2900	380	4
ZCQ50-40-145	50	40	25	240	4	2900	380	4
ZCQ50-40-160	50	40	32	220	4	2900	380	4
ZCQ65-50-145	65	50	25	280	5.5	2900	380	4
ZCQ65-50-160	65	50	32	450	7.5	2900	380	4
ZCQ80-65-125	80	65	20	800	7.5	2900	380	4
ZCQ80-65-160	80	65	32	800	15	2900	380	4
ZCQ100-80-160	100	80	32	1500	22	2900	380	4
