Submersible Mixer Pump
Created with Pixso.

380V 415V Compact Submersible Mixer For Biochemical Process

380V 415V Compact Submersible Mixer For Biochemical Process

Brand Name: ZY
Model Number: QJB
MOQ: 2
Price: 150-500USD
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100PCS/Week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Model Number:
QJB
Usage:
Water
Structure:
Submersible Pump
Power:
Electric
Pressure:
High Pressure
Application:
Submersible
Material:
Steel
Frequency:
50 /60 Hz
Feature:
High Efficiency
Motor:
100% Copper Wire
Voltage:
380v/415v/440v460v
Max Temperature:
60℃
Protection Level:
IP68
Power Supply:
220V/50Hz 380v50hz
Head:
1-50 M
Control System:
Variable Frequency Drive
Power Cord Length:
10m
Cable:
7 Core
Rated Frequency:
50Hz
Diameter Of Blade:
600 Mm
Color:
Sliver
Flow:
180-3000m3/h
Usage:
Mixing And Pumping
Flow Rate:
1-500 M3/h
Dimension:
Customized
Packaging Details:
plywood
Supply Ability:
100PCS/Week
Highlight:

415V Compact Submersible Mixer

,

Biochemical Process Submersible Mixer

,

380V Compact Submersible Mixer

Product Description
sewage treatment equipment high speed compact Submersible Mixer for Biochemical Process

Product Name
sewage treatment equipment high speed mixer /agitator mixer
Introduction
QJB submersible mixer as a water treatment process is one of the key equipment in the water treatment process, the biochemical processes can be realized in solid-liquid two-phase flow and homogeneous solid-liquid-gas flow, the flow of process requirements. It consists of submersible motor, impeller and mounting system, etc.

Applications
Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, effectively prevent the deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select the correct working environment and operating mode.
Maximum medium temperature does not exceed 40 degrees; and PH range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.
Mixer must be fully submerged underwater diving work, not flammable and corrosive and high temperature environments
Features Compact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.
The blade has the self-cleaning function, can prevent sundries wind,blocking
Can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.
Motor winding is F grade insulation, protection grade is IP68.
All fastener is stainless steel.

Model Motor Power(Kw) Rated current(A) Rpm of Vane (r/min) Diameter of vane (mm) Thrust(N) Weight(kg)
QJB0.85/8-260/3-740/S 0.85 3.2 740 260 163 55/65
QJB1.5/6-260/3-980/S 1.5 4 980 260 290 55/65
QJB2.2/8-320/3-740/S 2.2 5.9 740 320 582 88/93
QJB4/6-320/3-960/S 4 10.3 960 320 609 88/93
QJB1.5/8-400/3-740/S 1.5 5.2 740 400 600 74/82
QJB2.5/8-400/3-740/S 2.5 7 740 400 800 74/82
QJB3/8-400/3-980/S 3 8.6 980 400 920 74/82
QJB4/6-400/3-480/S 4 10.3 480 400 1200 74/82
QJB4/12-620/3-480/S 4 14 480 620 1400 190/206
QJB5/12-620/3-480/S 5 18.2 480 620 1800 196/212
QJB7.5/12-620/3-480/S 7.5 28 480 620 2600 240/256
QJB10/12-620/3-480/S 10 32 480 620 3300 250/266

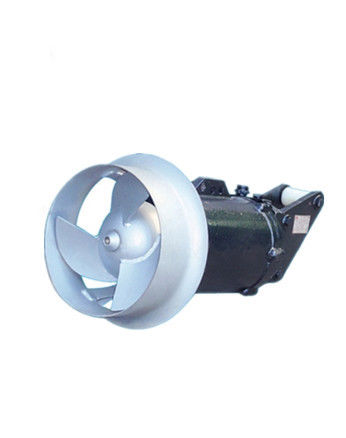

380V 415V Compact Submersible Mixer For Biochemical Process 0

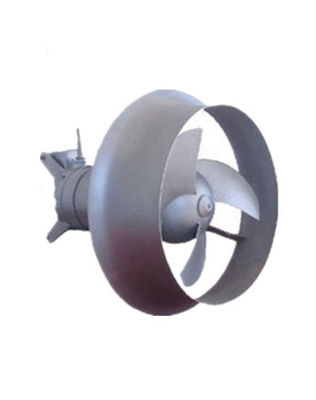

380V 415V Compact Submersible Mixer For Biochemical Process 1

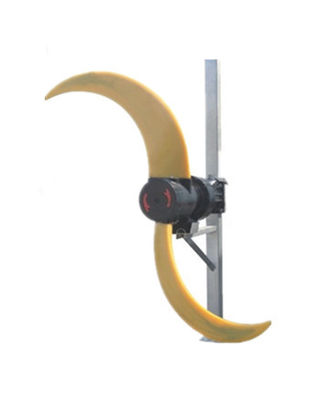

380V 415V Compact Submersible Mixer For Biochemical Process 2

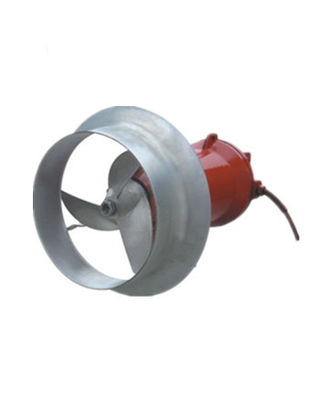

380V 415V Compact Submersible Mixer For Biochemical Process 3
