10KW Wastewater Treatment Mixers Stainless Submerged Mixer QJB

10KW Wastewater Treatment Mixers Stainless Submerged Mixer QJB

Brand Name:	ZY
Model Number:	QJB
MOQ:	1set
Price:	1000-2000usd
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Structure:

Pump

Application:

Mixing And Pumping

Motor Power:

10 KW

Rated Current:

18.5 A

Propeller Rpm:

480 R/min

Diameter Of Blade:

600mm

Weight:

100 Kg

Cable Length:

10m

Insulation Grade:

Material:

Stainless Steel

Protection Grade:

IPX8

Size:

400*360*400mm

Warranty:

1 Year

Max Temperature:

60℃

Protection Level:

IP68

Power Supply:

220V/50Hz 380v50hz

Head:

1-50 M

Control System:

Variable Frequency Drive

Power Cord Length:

10m

Cable:

7 Core

Rated Frequency:

50Hz

Diameter Of Blade:

600 Mm

Motor:

100% Copper Wire

Color:

Sliver

Flow:

180-3000m3/h

Usage:

Mixing And Pumping

Flow Rate:

1-500 M3/h

Dimension:

Customized

Packaging Details:

wooden box

Supply Ability:

1000set/month

Highlight:

10KW Wastewater Treatment Mixers

Stainless Submerged Mixer

10KW Submerged Mixer

Product Description

10kw submersible sewage mixer pump 304 submerged mixer submersible wastewater mixer anoxic

10kw submersible sewage mixer pump material on cast iron /steel good quality

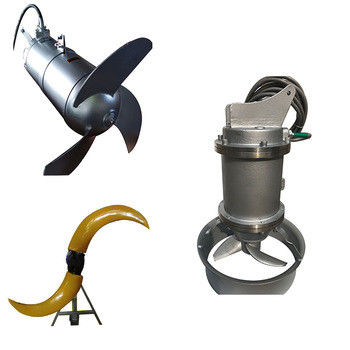

10KW Wastewater Treatment Mixers Stainless Submerged Mixer QJB 0

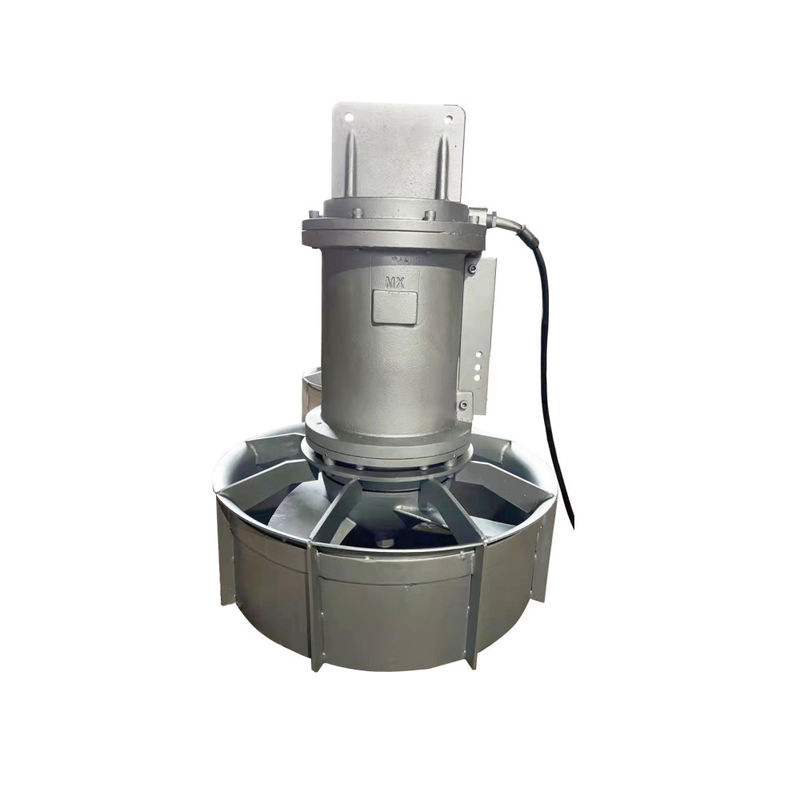

10KW Wastewater Treatment Mixers Stainless Submerged Mixer QJB 1

Capability feature
1 QJB type mixing compact structure, the operation and maintenance is simple, easy installation and maintenance and long service life;
2 impeller has the best hydraulic design structure, high efficiency, sweptback blade with consecrated themselves function, can prevent sundry winding, blocked;
3 and aeration system mixed use can make the energy consumption greatly reduced oxygen filling, improved obviously, effectively prevent precipitation;
4 motor winding insulation class F grade, protection grade for IP68, choose high quality bearing and electric device to make the motor cleansing described the work of safety; more
5 two way mechanical seal or double seals, material of tungsten carbide-tungsten carbide (or silicon carbide-silicon carbide);

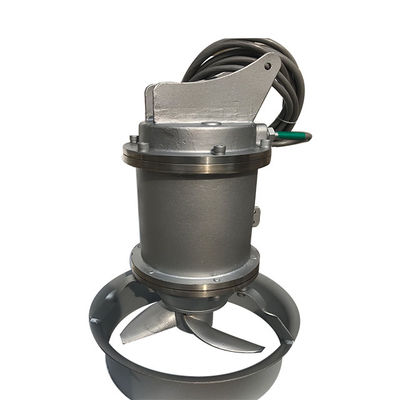

10KW Wastewater Treatment Mixers Stainless Submerged Mixer QJB 2

Special Warning:The submersible mixer must operate in the complete submersible into water and cannot operate in the inflammable,explosive,highly corrosive and high-temperature environment.In line with the requirement for the special environment,our company can provide the special design to the users.

More Product:

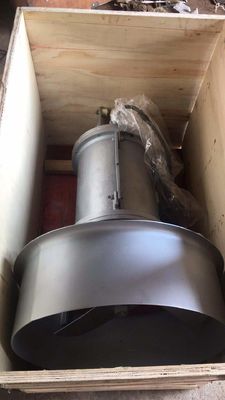

Packing ang shipping:
