Submersible Mixer Pump
Created with Pixso.

SUS304 Jet Submersible Mixer Pump 415V Submersible Mixers Sewage

SUS304 Jet Submersible Mixer Pump 415V Submersible Mixers Sewage

Brand Name: ZY
Model Number: QJB
MOQ: 2
Price: 400-1500USD
Payment Terms: TT, Western Union, MoneyGram
Supply Ability: 50UNIT/MONTH
Detail Information
Place of Origin:
ZHEJIANG,CHINA
Certification:
ISO9001
Material:
SS304
Color:
Sliver/black/red
Voltage:
380/415v
Key Word:
Submersible Mixer
Cable:
8m
Type:
Water
Motor:
100% Copper Wire
Theory:
Jet Pump
Application:
Mixing And Pumping
Insulation Grade:
F
Material:
Stainless Steel
Power Supply:
220V/50HZ
Protection Grade:
IP68
Pump Head:
20m
Working Temperature:
-15℃~+40℃
Max Temperature:
60℃
Protection Level:
IP68
Power Supply:
220V/50Hz 380v50hz
Head:
1-50 M
Control System:
Variable Frequency Drive
Power Cord Length:
10m
Cable:
7 Core
Rated Frequency:
50Hz
Diameter Of Blade:
600 Mm
Color:
Sliver
Flow:
180-3000m3/h
Usage:
Mixing And Pumping
Flow Rate:
1-500 M3/h
Dimension:
Customized
Packaging Details:
plywood FOR sumbersible mixer pump
Supply Ability:
50UNIT/MONTH
Highlight:

SUS304 Jet Submersible Mixer Pump

,

SUS304 Submersible Mixers Sewage

,

415V Submersible Mixers Sewage

Product Description

Submersible mixer cast iron SUS304 Jet Mixer (cast iron,Stainless Steel, leak sensor)



Detailed Product Description

1.. Two independent mechanical seals
2. High efficiency, self-cleaning function
3. High efficiency, self-cleaning function

 Product Overview
  QJBsubmersible mixer as a water treatment process is one of the key equipment in the water treatment process, the biochemical processes can be realized in solid-liquid two-phase flow and homogeneous solid-liquid-gas flow, the flow of process requirements. It consists of submersible motor, impeller and mounting system, etc.

 Applications

Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, effectively prevent the deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select the correct working environment and operating mode
.
Maximum medium temperature does not exceed 40 degrees; and PH range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.
Mixer must be fully submerged underwater diving work, not flammable and corrosive and high temperature environments

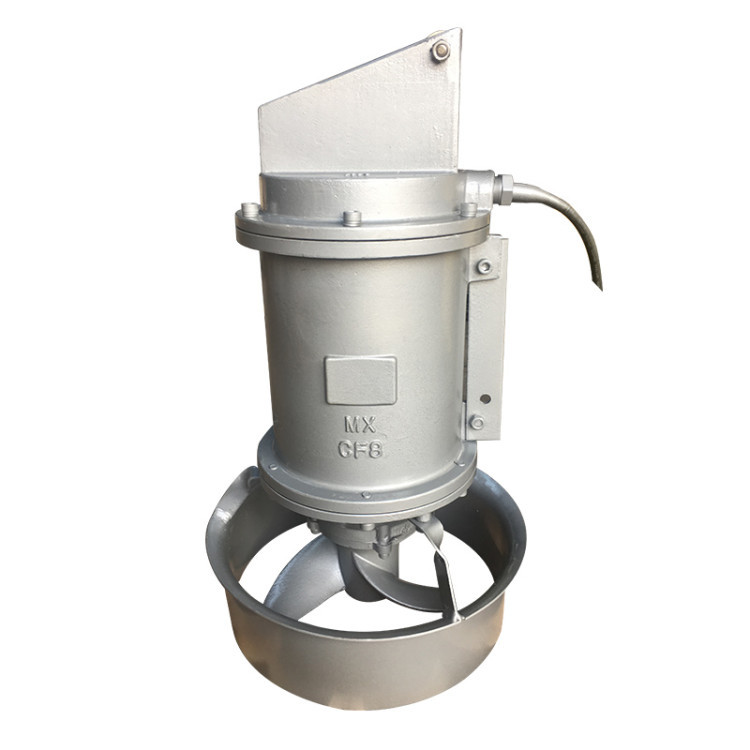

QJB5/12 material on SS 304

SUS304 Jet Submersible Mixer Pump 415V Submersible Mixers Sewage 0

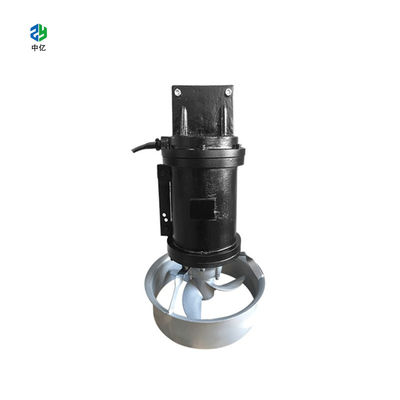

submersible mixer  QJB4/6 material on cast iron
SUS304 Jet Submersible Mixer Pump 415V Submersible Mixers Sewage 1

Specification


Model Motor power
(kw)
Rated current
 (A)
rpm of
impeller(r/min)
Diameter
of impeller(mm)
Thrust
(N)
Weight
(KG)


QJB0.85/6-260/740-/C/S  0.85 3.2 740 260 163 55/65
QJB1.5/260/960/C/S  1.5 4 960 260 290 55/65
QJB2.2/8-320/740/C/S  2.2 5.9 740 320 582 88/93
QJB4/6-320/960/C/S  4 10.3 960 320 609 88/93
QJB1.5/6-400/740-/C/S  1.5 5.2 740 400 600 74/82
QJB2.5/6-400/740C/S  2.5 7 740 400 800 74/82
QJB3/6-400/740/C/S  3 8.6 740 400 920 74/82
QJB4/6-400/960/C/S  4 10.3 960 400 1200 74/82
QJB4/6-620/480/S  4 14 480 620 1400 190/206
QJB5/12-620/480/S  5 18.2 480 620 1800 196/212
QJB7.5/12-620/480/S  7.5 28 480 620 2600 240/256
QJB10/12620/480/S  10 32 480 620 3300 250/266






SUS304 Jet Submersible Mixer Pump 415V Submersible Mixers Sewage 2
