PP SS304 Chemical Magnetic Drive Pump CQBF Fluorine Lined Chemical Pump

PP SS304 Chemical Magnetic Drive Pump CQBF Fluorine Lined Chemical Pump

Brand Name: ZY
Model Number: CQB-F
MOQ: 2
Price: 200USD
Payment Terms: T/T, Western Union
Supply Ability: 10pcs/week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Model Number:
CQB-F
Pressure:
High Pressure
Usage:
Chemical, Pharmaceutical, Oil
Material:
Fluorine With Cast Iron
Color:
Blue
Package:
Plywood
Motor:
Normal Or EX
Packaging Details:
plywood
Supply Ability:
10pcs/week
Highlight:

SS304 Chemical Magnetic Drive Pump

,

Chemical Magnetic Drive Pump CQBF

,

CQBF Fluorine Lined Chemical Pump

Product Description
Fluorine Anti-Corrosion Chemical Magnetic Drive Pump CQB-F material pp or ss 304

Product Description


1. CQF 220 volt small lab using low power water pump no-leakage magnetic drive pump is manufactured by ZY is compact structure, small volume, light weight.

2. Pump is widely used in all industries works as booster pump, chemical, lab pump, circulation pump.

3. Pump is designed with 50 or 60Hz to meet requirements of clients from different countries.

4. The magnetic drive pump is generally designed for no shaft seal, completely avoids defects of pollution after corrosion caused by liquid leakage, which exists in traditional mechanical shaft seal pump, it is the optimum liquid transport pump.





Model Diameter Flow(m3/h) Head(m) Power(kW) Voltage(V) Material
import(mm) export(mm)
CQB20-15-75F 20 15 1.6 7 0.18 220/380

Stainless

steel

CQB25-20-100F 25 20 2.5 11 0.37 220/380
CQB32-20-110F 32 20 5.5 13 0.55 220/380
CQB40-40-100F 40 40 6.3 11 0.75 380
CQB40-40-125F 40 40 6.3 18 1.1 380
32CQ-25 32 25 4.8 25 1.1 380
40CQ-20 40 32 10 20 2.2 380
40CQ-32 40 32 11.5 32 4 380
50CQ-25 50 40 14.4 25 4 380
50CQ-32 50 40 13.2 32 4 380
50CQ-50 50 32 7.8 50 5.5 380
65CQ-25 65 50 16.8 25 5.5 380
65CQ-32 65 50 25 32 7.5 380
80CQ-32 80 65 50 32 11 380
50CQ-50 80 65 50 50 15 380
100CQ-32 100 80 60 32 15 380
100CQ-50 100 80 60 50 18.5 380
16CQ-8---100CQ-50 Can match explosion-proof motor

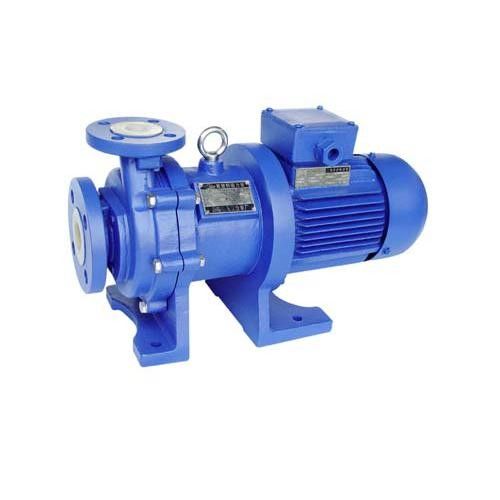

PP SS304 Chemical Magnetic Drive Pump CQBF Fluorine Lined Chemical Pump 0

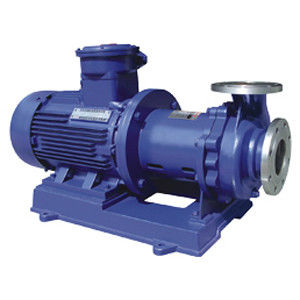

PP SS304 Chemical Magnetic Drive Pump CQBF Fluorine Lined Chemical Pump 1

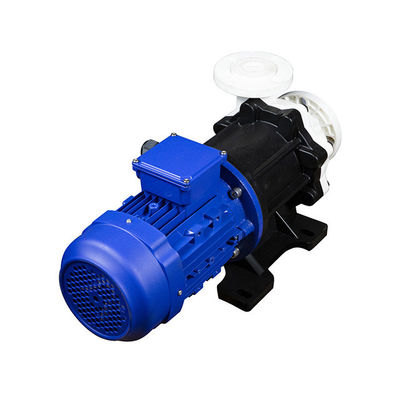

PP SS304 Chemical Magnetic Drive Pump CQBF Fluorine Lined Chemical Pump 2

Packaging Details:

Standard export packing

Delivery Detail:

Within 3 days receiving payment
