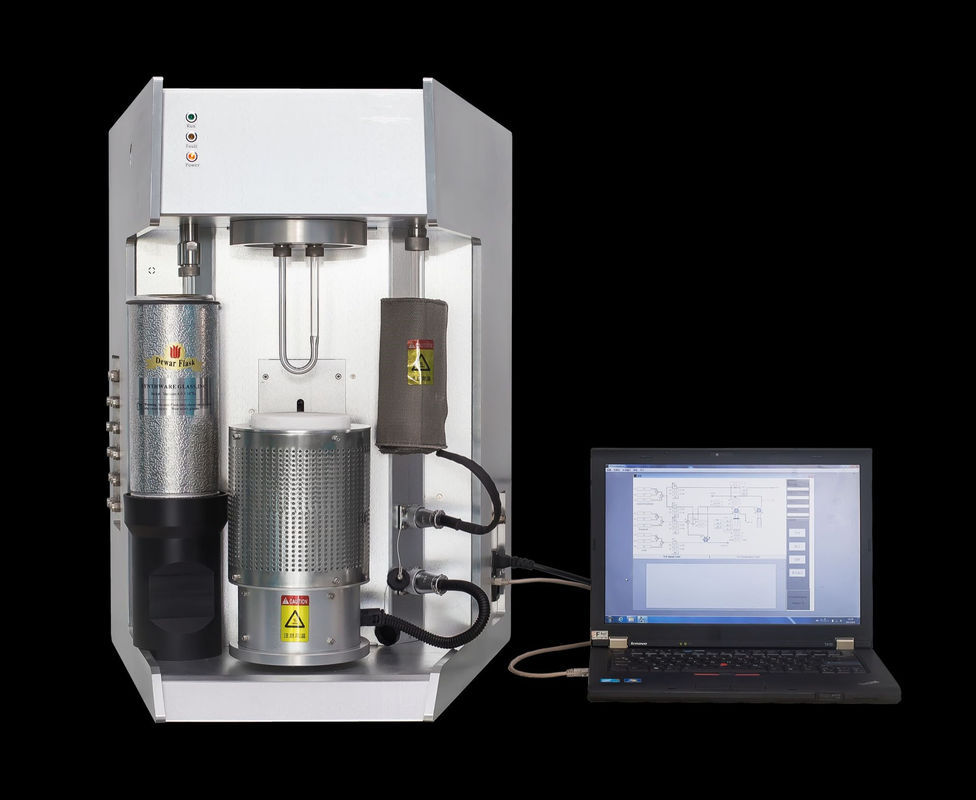

Achieve 25 kinds experiments such as TPR,TPD,TPO,TPSR,pulse titration, pretreatment BET specific surface area ,Precious metal dispersity |
|
-
|
Be suitable to 3 groups of carrier Gas,3 groups of reaction gas, and also can be extended to more extra 1-6 reaction gases |
|
-
|
Gas flow control used by Digital Mass Flow Control (DMFC) |
|
-
|
Reactor has many kinds of materials such as quartz, SS316L, and the proof pressure is up to 10MPa |
|
-
|
Two and a half type tubular, the max temperature is up to 1100C, fast heating, cooling with cooling module |
|
-
|
Built-in highly sensitive TCD ,FID, MS |
|
-
|
Analysis workstation software can perform automatic controlling and analyze the dates that are collected |
|
-
|
Quantitative analysis has an accurate precision, Adsorption Quantity, BET and Precious Metals Dispersity are quite accurate with good repeatability
|
| Operational Environment | 0-50 C, 5%-95%Rh | |
| Control Method | Software automatic controlling | |
| Communication Methods | RS-485, upgraded to the USB or network interface | |
| Built-in Detector | Superior sensitive TCD Detector Micro sample cell | |
| Carrier Gas | He, Ar, N2, H2 | |
| Carrier Gas purity | >99.995% | |
| Reaction Materials | NH3, CO, CO2, H2,Methanol, ethanol, pyridine | |
| Gas Flow Control | Digital Mass flow controller (DMFC) control, precision1% | |
| Sample Volume | 10-500mg | |
| Reactor | U Type, Quartz or SS316L , ID6mm, OD8mm, Pits or variable diameter | |
| High Temperature Furnace | Stainless steel shell tube furnace,Two structure,max temperature 1100C,Max High heating rate100C/min | |
| Gas Circuit Switch | Germany Bukert magnetic valve, Switzerland VICI Plane switch valve | |
| Vapor Generator | Soft package heating, temperature controller control | |
| Constant current source | 0-100mA, 0.1%precision, 1mAstep | |
| Detector | Micro TCD Detector, Min discriminable volume1*10-4cm3/g | |
| Precision | Veracity1%, Repeatability1% | |
| Continuous Working | Long cycle of continuous working | |
| Anticorrosion | Under the optimal situation, it can support acid-resistance, perbasic concentration gas | |
| Software | Special analysis workstation software, base on Windows platform | |
| Data Export | Support TXT Text Output, which makes the exchange data with drawing tools like Origin more convenient |
