1. widely usage
2. anti-corrosion
3. non-ageing
4. non-leakage
Brief Instruction:

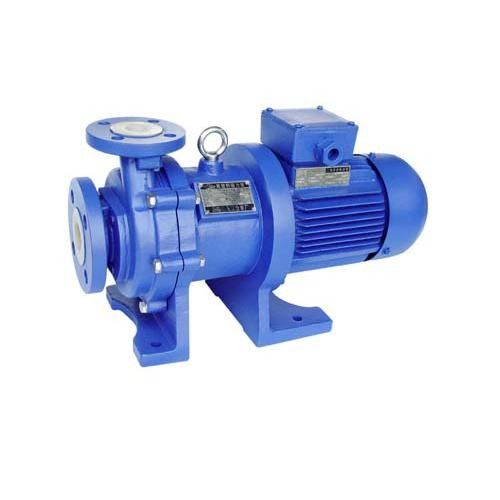

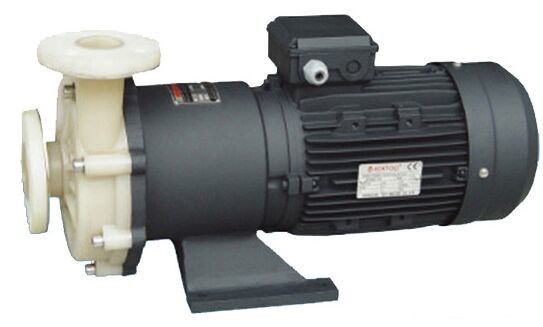

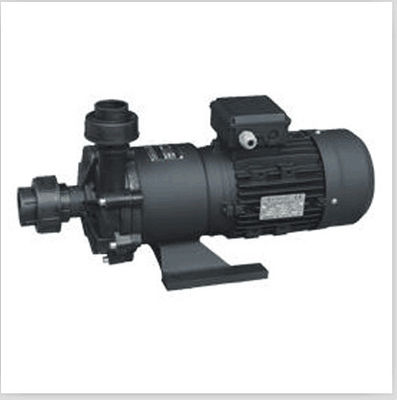

CQB-F fluorine plastic magnetic drive pumps are inline with fluorine. They adopt the best material for anti-corrosion.
Leakage proof design: It is with magnetic drive not shaft seal.
Usage temperature: -20 to 100 degree
Parameters
| Working Principle: | Centrifugal, Magnetic |
| Flowrate range: | 1.6~100m3/h |
| Head range: | 7~50m |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Material: | Cast iron lined with FEP, PFA |
| Power specs: | 0.18~18.5kw / 110~480v / 50/60hz |
| Model | Capacity (m³/h) | Head (m) |
Inlet (mm) |
Outlet (mm) | NPSH (m) |
Motor Power (KW) | |
| CQB20-15-75F | 1.6 | 7 | 20 | 15 | 6 | 0.18 | |
| CQB25-20-100F | 2.5 | 10.5 | 25 | 20 | 6 | 0.37 | |
| CQB32-20-110F | 5.5 | 13 | 32 | 20 | 5 | 0.55 | |
| CQB40-25-120F | 6.3 | 15 | 40 | 25 | 5 | 0.75 | |
| CQB40-40-100F | 6.3 | 11 | 40 | 40 | 5 | 0.55 | |
| CQB40-40-125F | 6.3 | 17.5 | 40 | 40 | 3.7 | 1.1 | |
| CQB40-25-150F | 6.3 | 25 | 40 | 25 | 3.5 | 1.5 | |
| CQB40-25-160F | 6.3 | 32 | 40 | 25 | 3.5 | 3 | |
| CQB40-25-200F | 6.3 | 50 | 40 | 25 | 3.5 | 5.5 | |
| CQB50-32-125F | 12.5 | 20 | 50 | 32 | 3.5 | 2.2 | |
| CQB50-32-160F | 12.5 | 32 | 50 | 32 | 3.5 | 4 | |
| CQB50-32-200F | 12.5 | 50 | 50 | 32 | 3.5 | 7.5 | |
| CQB65-50-125F | 25 | 20 | 65 | 50 | 4 | 4 | |
| CQB65-50-150F | 20 | 25 | 65 | 50 | 4 | 4 | |
| CQB65-50-160F | 17.5 | 32 | 65 | 50 | 4 | 4 | |
| CQB65-50-180F | 18 | 38 | 65 | 50 | 4 | 5.5 | |
| CQB80-65-125F | 50 | 20 | 80 | 65 | 4 | 7.5 | |
| CQB90-65-160F | 50 | 32 | 80 | 65 | 4 | 11 | |
| CQB100-80-125F | 100 | 20 | 100 | 80 | 4 | 11 | |
| CQB100-80-160F | 100 | 32 | 100 | 80 | 4 | 18.5 | |
