Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump

Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump

Brand Name: ZY
Model Number: CQB-F
MOQ: 2
Price: 200USD-1000USD
Payment Terms: L/C, T/, Western Union, T/T
Supply Ability: 10pcs/week
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Model Number:
CQB-F
Pressure:
High Pressure
Usage:
Chemical, Pharmaceutical, Oil
Material:
Fluorine With Cast Iron
Color:
Blue
Package:
Plywood
Motor:
Normal Or EX
Flow Rate:
2-20 GPM
Frequency:
50-60 Hz
Horsepower:
1/2-3 HP
Inlet/Outlet Size:
1/2-3 Inch
Material:
Cast Iron
Max Flow:
20 GPM
Max Head:
100 Feet
Max Pressure:
125 PSI
Max Suction Lift:
25 Feet
Max Temperature:
140°F
Pressure Range:
15-125 PSI
Product Name:
Magnetic Drive Pump
Speed:
1700-3450 RPM
Voltage:
110-220V
Weight:
15-20 Lbs
Packaging Details:
plywood
Supply Ability:
10pcs/week
Highlight:

Fluorine Chemical Magnetic Drive Pump

,

Chemical Magnetic Drive Pump CQB-F

,

CQB-F Stainless Steel Mag Drive Pump

Product Description
Fluorine Anti-Corrosion Chemical Magnetic Drive Pump CQB-F material pp or ss 304

Product Description




Stainless steel impeller pump



Model Diameter Flow(m3/h) Head(m) Power(kW) Voltage(V) Material
import(mm) export(mm)
CQB20-15-75F 20 15 1.6 7 0.18 220/380

Stainless

steel

CQB25-20-100F 25 20 2.5 11 0.37 220/380
CQB32-20-110F 32 20 5.5 13 0.55 220/380
CQB40-40-100F 40 40 6.3 11 0.75 380
CQB40-40-125F 40 40 6.3 18 1.1 380
32CQ-25 32 25 4.8 25 1.1 380
40CQ-20 40 32 10 20 2.2 380
40CQ-32 40 32 11.5 32 4 380
50CQ-25 50 40 14.4 25 4 380
50CQ-32 50 40 13.2 32 4 380
50CQ-50 50 32 7.8 50 5.5 380
65CQ-25 65 50 16.8 25 5.5 380
65CQ-32 65 50 25 32 7.5 380
80CQ-32 80 65 50 32 11 380
50CQ-50 80 65 50 50 15 380
100CQ-32 100 80 60 32 15 380
100CQ-50 100 80 60 50 18.5 380
16CQ-8---100CQ-50 Can match explosion-proof motor

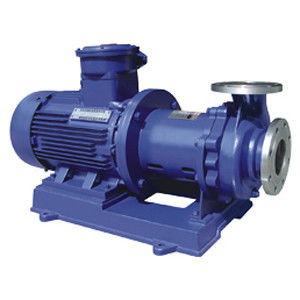

Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump 0

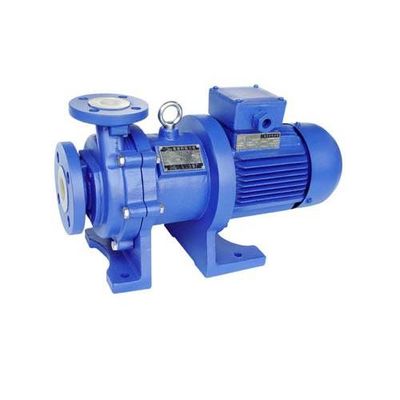

Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump 1
Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump 2


Packaging Details:

Standard export packing

Delivery Detail:

Within 3 days receiving payment



Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump 3

Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump 4

Fluorine Chemical Magnetic Drive Pump CQB-F Stainless Steel Mag Drive Pump 5
