Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale

2
MOQ
150-500USD
Price
Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: QJB
Usage: Water
Structure: Submersible Pump
Power: Electric
Pressure: High Pressure
Application: Submersible
Material: Steel
Frequency: 50 /60 Hz
Feature: High Efficiency
Motor: 100% Copper Wire
Material: Black /white
Theory: Jet Pump
Voltage: 380v/460v/415/50hz
Warranty: One Year
Basic Infomation
Place of Origin: CHINA
Brand Name: ZY
Certification: ISO9001
Model Number: QJB
Payment & Shipping Terms
Packaging Details: plywood
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100PCS/Week
Product Description
Product Name
QJB Submersible mixer sewage water treatment
Introduction
QJB submersible mixer as a water treatment process is one of the key equipment in the water treatment process, the biochemical processes can be realized in solid-liquid two-phase flow and homogeneous solid-liquid-gas flow, the flow of process requirements. It consists of submersible motor, impeller and mounting system, etc.

Applications
Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, effectively prevent the deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select the correct working environment and operating mode
.

Maximum medium temperature does not exceed 40 degrees; and PH range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.
Mixer must be fully submerged underwater diving work, not flammable and corrosive and high temperature environments
Features
Compact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.
The blade has the self-cleaning function, can prevent sundries wind,blocking
Can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.
Motor winding is F grade insulation, protection grade is IP68.
All fastener is stainless steel.

Operation Model

Model Motor Power(Kw) Rated current(A) Rpm of Vane (r/min) Diameter of vane (mm) Thrust(N) Weight(kg)
QJB0.85/8-260/3-740/S 0.85 3.2 740 260 163 55/65
QJB1.5/6-260/3-980/S 1.5 4 980 260 290 55/65
QJB2.2/8-320/3-740/S 2.2 5.9 740 320 582 88/93
QJB4/6-320/3-960/S 4 10.3 960 320 609 88/93
QJB1.5/8-400/3-740/S 1.5 5.2 740 400 600 74/82
QJB2.5/8-400/3-740/S 2.5 7 740 400 800 74/82
QJB3/8-400/3-980/S 3 8.6 980 400 920 74/82
QJB4/6-400/3-480/S 4 10.3 480 400 1200 74/82
QJB4/12-620/3-480/S 4 14 480 620 1400 190/206
QJB5/12-620/3-480/S 5 18.2 480 620 1800 196/212
QJB7.5/12-620/3-480/S 7.5 28 480 620 2600 240/256
QJB10/12-620/3-480/S 10 32 480 620 3300 250/266

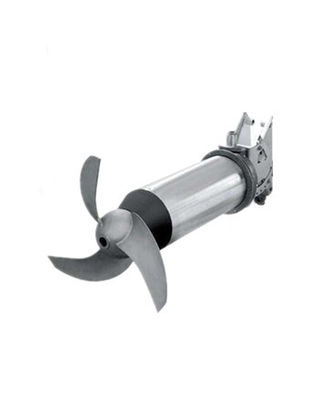

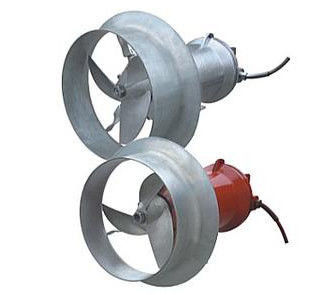

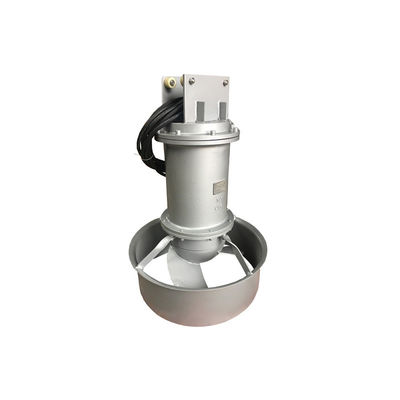

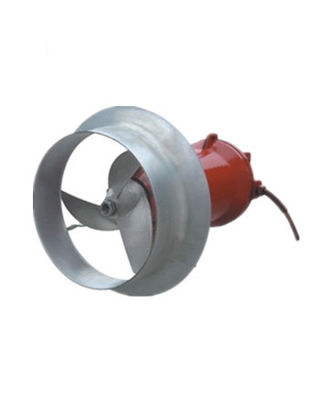

Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale 0Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale 1
Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale 2
Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale 3
Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale 4

Sewage treatment submersible aerator agitator for deep water immersible mixer for wastewater pond for sale 5
