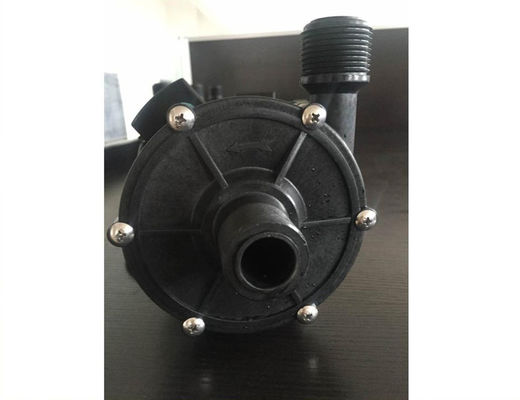

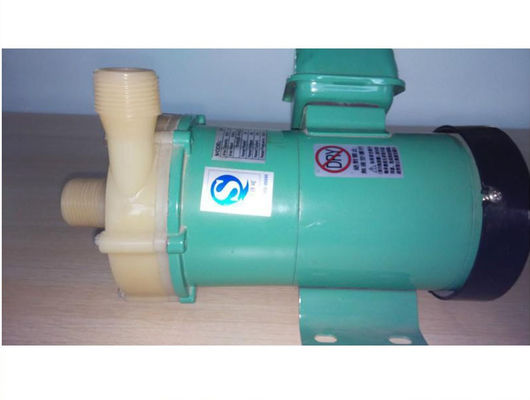

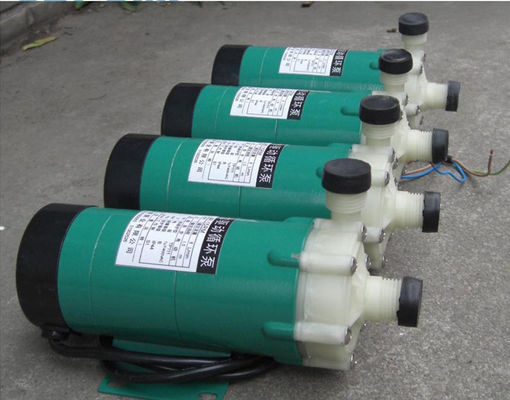

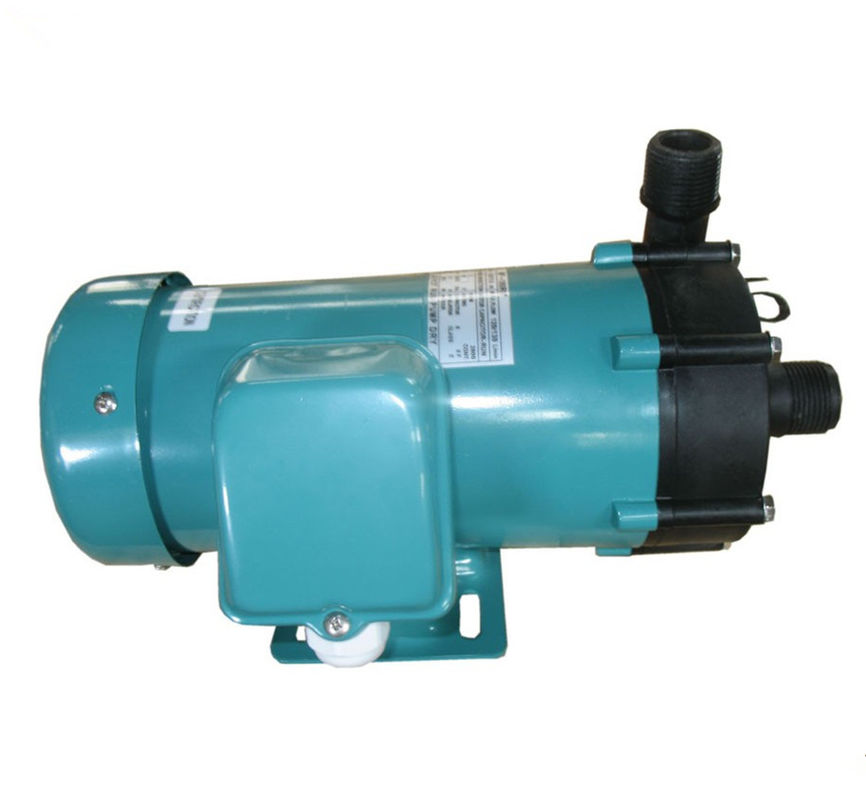

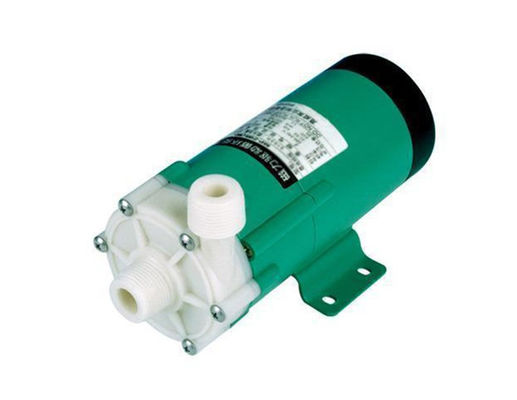

MP non-leakage chemical pump AC 220v mini magnetic water pump
MP Non-Leakage AC 220V /380v Mini Magnetic Water Pump material pp and ss 304
Introduction:
1. MP series 220-volt small circulating water pump portable mini magnetic drive pump is with merits of compact structure, small volume, light weight.
2. Adopting advanced magnetic coupling technology, the mini magnetic drive pump has no leakage and even no shaft seal, this solves the problem of leakage of normal pump.
3. The magnetic drive pump could be used to transfer clean water or low corrosive chemical liquids.
4. Widely used in lab, household, irrigation, chemical industry, etc.
Products details:
| Working Principle: | Centrifugal, Magnetic coupled |
| Main applications: | Chemical, water |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Thread, Tube |
| Installation position: | Horizontal |
| Casing material: | Fiber reinforced |
| Shaft seal type: | Static sealing |
| Maximum drive rating: | 2.2KW(3HP) |
| Maximum caliber: | 56mm(2 1/4inch) |
| Maximum discharge-side pressure: | 0.22MPa(2.2bar) |
| Maximum head: | 22m(72.2ft) |
| Flow rate range: | 2.8-380L/min(0.7-100.3US.GPM) |
| MODEL | tube | hightest | specific gravity | motor | |||
| inlet | outlet | pipe | 50Hz/60Hz | lift | export | ||
| 50Hz/60Hz | 50Hz/60Hz | ||||||
| MP-6R | 14 | 14 | - | 1/1.4 | 0.8 | <1.2 | 3 |
| MP-6RZ | 14 | 14 | - | 2.1/2.7 | 0.8 | <1.1 | 3 |
| MP-10R | 14 | 14 | - | 1.5/2.1 | 1 | <1.1 | 6 |
| MP-10RN | 14 | 14 | - | 1.5/2.1 | 1 | <1.1 | 6 |
| MP-15R | 16 | 16 | - | 2.7/3.4 | 1.5 | <1.3 | 10 |
| MP-15RN | 16 | 16 | - | 2.7/3.4 | 1.5 | <1.3 | 10 |
| MP-15RM | - | - | 13 | 2.4/3.4 | 1.5 | <1.3 | 10 |
| MP-20R | 18 | 18 | - | 3.1/4.3 | 2 | <1.2 | 20 |
| MP-20RM | - | - | 16 | 3.1/4.3 | 2 | <1.2 | 20 |
| MP-20RX | 26 | 26 | - | 1.8/2.5 | 1 | <1.3 | 20 |
| MP-20RXM | - | - | 20 | 1.8/2.5 | 1 | <1.3 | 20 |
| MP-2RZ | 18 | 18 | - | 4.6/6.9 | 4 | <1.1 | 20 |
| MP-20RZM | - | - | 13 | 4.6/6.9 | 4 | <1.1 | 20 |
| MP-30R | 20 | 20 | - | 3.8/5.4 | 2.5 | <1.3 | 45 |
| MP-30RM | - | - | 16 | 3.8/5.4 | 2.5 | <1.3 | 45 |
| MP-30RX | 26 | 26 | - | 2.9/4.1 | 2 | <1.1 | 45 |
| MP-30RXM | - | - | 20 | 2.9/4.2 | 2 | <1.1 | 45 |
| MP-30RZ | 18 | 18 | - | 2.9/4.3 | 6 | <1.1 | 45 |
| MP-30RZM | - | - | 13 | 2.9/4.4 | 6 | <1.1 | 45 |
| MP-40R | 20 | 20 | - | 4.6/6.5 | 4 | <1.1 | 65 |
| MP-40RM | - | - | 16 | 4.6/6.5 | 4 | <1.1 | 65 |
| MP-40RX | 26 | 26 | - | 3.3/4.7 | 2 | <1.1 | 65 |
| MP-40RXM | - | - | 20 | 3.3/4.7 | 2 | <1.1 | 65 |
| MP-55R | 26 | 26 | - | 5.6/8.2 | 4 | <1.2 | 90 |
| MP-55RM | - | - | 20 | 5.6/8.3 | 4 | <1.2 | 90 |
| MP-55RZ | 26 | 26 | - | 5.6/8.4 | 8 | <1.1 | 90 |
| MP-55RZM | - | - | 20 | 5.6/8.5 | 8 | <1.1 | 90 |
