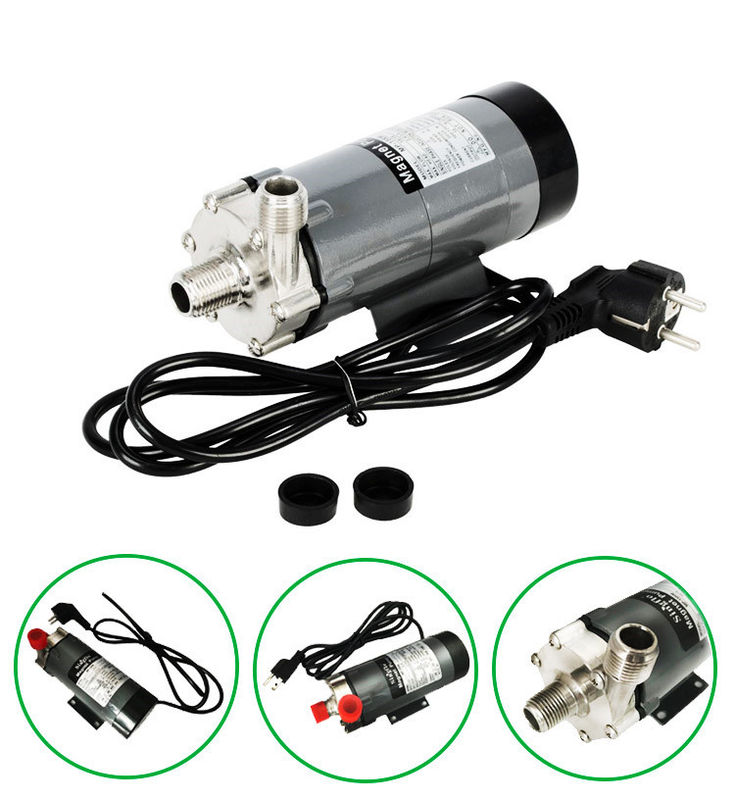

HomeBrew Pump MP- 15R Food Grade 304 Stainless Steel Brewery Beer Home brew 220V Magnetic Drive Water Pump 140C
| MODEL | tube | hightest | specific gravity | motor | |||
| inlet | outlet | pipe | 50Hz/60Hz | lift | export | ||
| 50Hz/60Hz | 50Hz/60Hz | ||||||
| MP-6R | 14 | 14 | - | 1/1.4 | 0.8 | <1.2 | 3 |
| MP-6RZ | 14 | 14 | - | 2.1/2.7 | 0.8 | <1.1 | 3 |
| MP-10R | 14 | 14 | - | 1.5/2.1 | 1 | <1.1 | 6 |
| MP-10RN | 14 | 14 | - | 1.5/2.1 | 1 | <1.1 | 6 |
| MP-15R | 16 | 16 | - | 2.7/3.4 | 1.5 | <1.3 | 10 |
| MP-15RN | 16 | 16 | - | 2.7/3.4 | 1.5 | <1.3 | 10 |
| MP-15RM | - | - | 13 | 2.4/3.4 | 1.5 | <1.3 | 10 |
| MP-20R | 18 | 18 | - | 3.1/4.3 | 2 | <1.2 | 20 |
| MP-20RM | - | - | 16 | 3.1/4.3 | 2 | <1.2 | 20 |
| MP-20RX | 26 | 26 | - | 1.8/2.5 | 1 | <1.3 | 20 |
| MP-20RXM | - | - | 20 | 1.8/2.5 | 1 | <1.3 | 20 |
| MP-2RZ | 18 | 18 | - | 4.6/6.9 | 4 | <1.1 | 20 |
| MP-20RZM | - | - | 13 | 4.6/6.9 | 4 | <1.1 | 20 |
| MP-30R | 20 | 20 | - | 3.8/5.4 | 2.5 | <1.3 | 45 |
| MP-30RM | - | - | 16 | 3.8/5.4 | 2.5 | <1.3 | 45 |
| MP-30RX | 26 | 26 | - | 2.9/4.1 | 2 | <1.1 | 45 |
| MP-30RXM | - | - | 20 | 2.9/4.2 | 2 | <1.1 | 45 |
| MP-30RZ | 18 | 18 | - | 2.9/4.3 | 6 | <1.1 | 45 |
| MP-30RZM | - | - | 13 | 2.9/4.4 | 6 | <1.1 | 45 |
| MP-40R | 20 | 20 | - | 4.6/6.5 | 4 | <1.1 | 65 |
| MP-40RM | - | - | 16 | 4.6/6.5 | 4 | <1.1 | 65 |
| MP-40RX | 26 | 26 | - | 3.3/4.7 | 2 | <1.1 | 65 |
| MP-40RXM | - | - | 20 | 3.3/4.7 | 2 | <1.1 | 65 |
| MP-55R | 26 | 26 | - | 5.6/8.2 | 4 | <1.2 | 90 |
| MP-55RM | - | - | 20 | 5.6/8.3 | 4 | <1.2 | 90 |
| MP-55RZ | 26 | 26 | - | 5.6/8.4 | 8 | <1.1 | 90 |
| MP-55RZM | - | - | 20 | 5.6/8.5 | 8 | <1.1 | 90 |
Application: These pumps are perfect for the serious homebrewer. Magnetic coupled, stainless head, H rated up to 110', nearly 4m of lift!
Apply to :Beer Dispensing,Water Treatment,Pollution Controll,Chemical Industry,Phatmaccutical Industry.
1. Magentic drive circulation pump is full-sealed pump,for motor connecting shaft
and impeller are separately equipped with magnetic materials,they attract each
other and coupled.
2. It is unnecessary to fit with traditional shaft seal and complete-ness sealed constitutive
water pump.Avoids defects of pollution after corrosion caused by liquid leakage,
and thatstill adopts special ceramics as shaft bearing,characterizing strong
resistance for abrasion and corrosion.
3. It's advanced performance and quality is the optimum liquid transport pump on
the industrial equipments.
Features
Heating Resisting 120 Celsius Degree
Advanced performance and quality optimum liquid transport pump on the industrial and home equipments.
Shaft bearing adopt special ceramics material which make it characterize strong resistance for abrasion and corrosion.
Full-sealed pump,motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.
