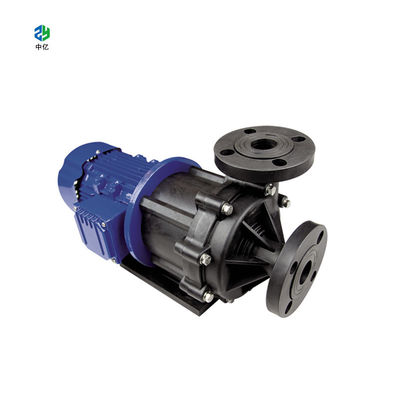

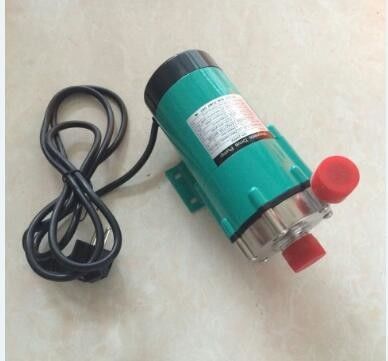

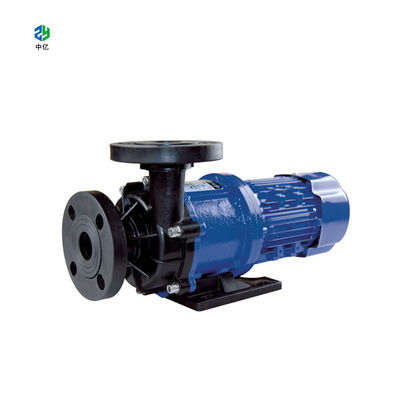

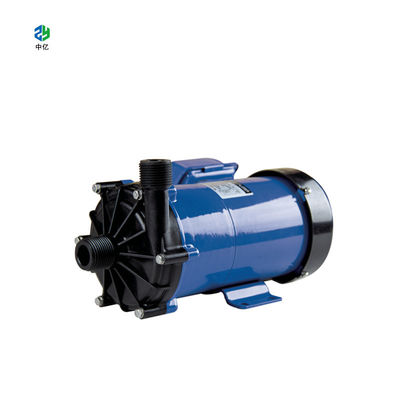

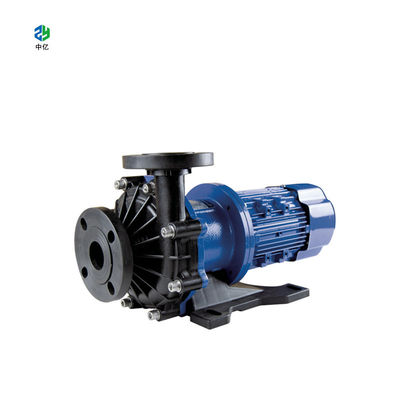

MPH Magnetic drive pump Corrosion Resistant Chemical Pump Centrifugal For chemical factory

Brand Name:	ZY
Model Number:	MPH
MOQ:	1set
Price:	$50-$2000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

ISO9001

Model Number:

MPH

Structure:

Centrifugal

Usage:

Booster

Application:

Water Supply, Fire Protection

Power:

3-7.5kw

Fuel:

Electric

Theory:

Centrifugal Pump

Frequency:

50hz Or 60hz Are All Available

Sealing Type:

Seal Ring

Warranty Of Pump:

12 Months

Type Of Connection:

Quick Coupling, Thread

Material:

PTFE/FEP/PVDF Lining

Customized Product:

Available

Packaging Details:

wooden box

Supply Ability:

1000set/month

Highlight:

FSB-D Corrosion Resistant Chemical Pump

FSB Chemical Pump Centrifugal

centrifugal magnetic drive pumps

Product Description

mechanical pipeline horizontal centrifugal pump for chemical

MPH Magnetic drive pump,

short for magnetic drive pump, is a type of pump that uses a magnetic coupling to transfer power from the motor to the pump assembly. This design eliminates the need for a traditional shaft seal, which can be a common source of leaks in other types of pumps. Mag drive pumps are often used for transferring corrosive, toxic, or otherwise hazardous fluids because they provide a seal-less, leak-free solution

Product Name	Magnetic drive pump
Material	PTFE/FEP/PVDF lining
Standard	ISO9001, ASME, ASNI
Flow Rate	260to 330 l/min
Capacity	12.5 to 18 m
Voltage	220v/380v/415V
Design Pressure	0.6 MPa
Working Temperature	-20 °C to +100 °C
Warranty	1 year
Pumping Liquid	Acids , Lyes , Waste water, Chlorine water, Electrolyte

MPH Magnetic drive pump Corrosion Resistant Chemical Pump Centrifugal For chemical factory 0

MPH Magnetic drive pump Corrosion Resistant Chemical Pump Centrifugal For chemical factory 1

Application

Ionic membrane caustic soda production

Acid pickling process

Painting process

Electroplating industry

Pesticide industry

Papermaking etc.

what are magnetic drive pumps used for

Magnetic drive pumps are commonly used in various industries for pumping corrosive, hazardous, or expensive fluids. They are especially useful for handling chemicals, acids, and other aggressive fluids because of their non-contact design, which prevents leaks and reduces maintenance. Magnetic drive pumps are also used in applications requiring high purity and sanitary conditions, such as in pharmaceutical, food and beverage, and electronic industries.

Packing:

MPH Magnetic drive pump Corrosion Resistant Chemical Pump Centrifugal For chemical factory 3
