IH Single Stage Single Suction Centrifugal Pump with Capacity 6.3m3/h-400m3/h, Head 5-125m & Max. Pressure 1.6Mpa

1pcs
MOQ
$1000-$7000
Price
IH Single Stage Single Suction Centrifugal Pump with Capacity 6.3m3/h-400m3/h, Head 5-125m & Max. Pressure 1.6Mpa
Features Gallery Product Description Request A Quote
Features
Specifications
Pressure: Low Pressure
Material: Cast Iron/Stainless Steel
Fuel: Diesel Or Motor Driven
Usage: Water
Application: Clean Water
Flow Rate: 100-1000m3/h
Frequency: 50HZ/60HZ
Head: 10-100m
Impeller Diameter: DN25-DN200mm
Inlet/Outlet Diameter: DN25-DN200mm
Insulation Class: F/H
Motor: IE2/IE3
Power: 0.75-90KW
Protection Level: IP55/IP56/IP65
Pump Type: Single Stage Single Suction Centrifugal Pump
Shaft Seal: Mechanical Seal/Packing Seal
Speed: 1450-2900rpm
Temperature: 0-80℃
Voltage: 220V/380V/415V/660V
Highlight:

IH Single Stage Single Suction Centrifugal Pump

,

IH Stainless Steel Chemical Pump

,

Chemical Single Stage Single Suction Centrifugal Pump

Basic Infomation
Place of Origin: China
Brand Name: ZY
Certification: ISO9001
Model Number: IH
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 10-30days
Payment Terms: T/T, Western Union, D/P, MoneyGram
Supply Ability: 500pcs/month
Product Description

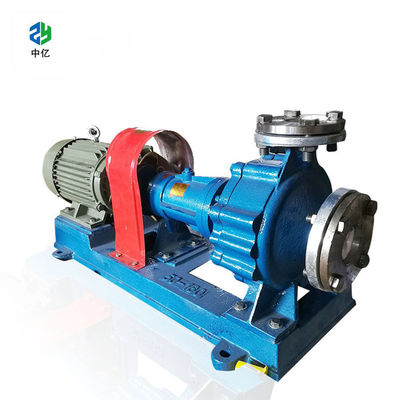

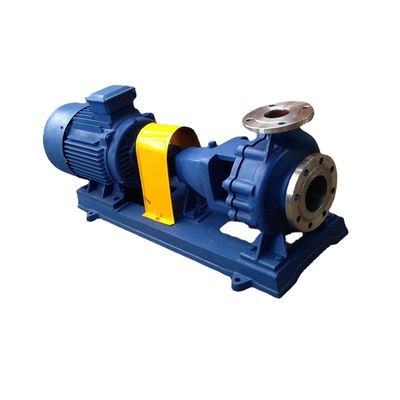

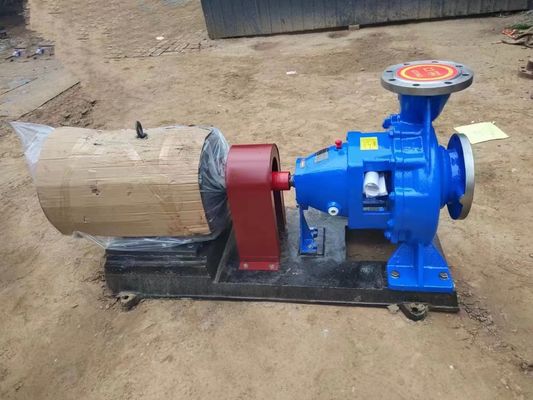

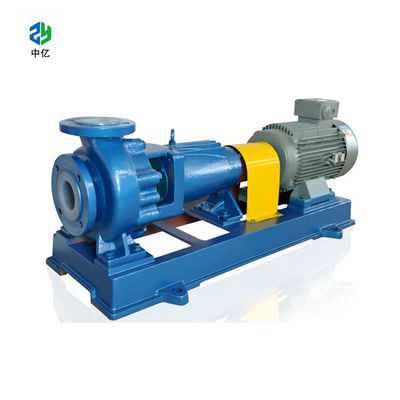

IH single stage single suction centrifugal stainless steel chemical Pump

Introduction

stainless steel single stage centrifugal pump is a horizontal single-stage, single-suction chemical pump for industrial, agricultural and drainage. it is mainly used for transferring various corrosive liquids, and liquids containing a small amount of particles.


Operating range:
Capacity: 6.3m3/h-400m3/h; 29-1761GPM
Head: 5-125m; 16-410feet
Temperature: -20°C-105°C; 68°F-221°F
Max. working pressure: 1.6Mpa



Stainless steel single stage centrifugal pump Process Media:

acid, alkali / salt solution / strong oxidant / organic solvents / corrosive slurries, solvents / hydrocarbons and other strong corrosive medium / ammonia water ion film caustic soda / wastewater



Stainless steel single stage centrifugal pump Application Industry:

Acid pickling process

Painting process

Textile industry

Pharmacy and Health

Electroplating industry

Chlorine water and waste water treatment

Petroleum Industry

Chemical Industry

Adding acid process.



Specification:



Model n=2900r/min n=1450r/min
Q(m3/h) H (m) (KW) Q(m3/h) (m) (KW)
IH40-32-125 6.3 20 1.5 3.2 5 0.55
IH40-32-160 32 3 8 0.55
IH40-32-200 50 5.5 12.5 1.1
IH40-32-250 80 11 20 2.2
IH50-32-125 12.5 20 3 6.3 5 0.55
IH50-32-160 32 4 8 0.55
IH50-32-200 50 7.5 12.5 1.5
IH50-32-250 80 15 20 2.2
IH65-50-125 25 20 3 12.5 5 0.55
IH65-50-160 32 5.5 8 0.75
IH65-40-200 50 11 12.5 1.5
IH65-40-250 80 18.5 20 3
IH65-40-315 125 30 32 5.5
IH80-65-125 50 20 5.5 25 5 0.75
IH80-65-160 32 11 8 1.5
IH80-50-200 50 15 12.5 2.2
IH80-50-250 80 30 20 4
IH80-50-315 125 45 32 7.5
IH100-80-125 100 20 11 50 5 1.5
IH100-80-160 32 15 8 2.2
IH100-65-200 50 22 12.5 4
IH100-65-250 80 37 20 5.5
IH100-65-315 125 75 32 11
IH125-100-200 200 50 45 100 12.5 7.5
IH125-100-250 80 75 20 11
IH125-100-315 125 75 32 18.5
IH125-100-400 / / / 50 30
IH150-125-250 / / / 200 20 18.5
IH150-125-315 / / / 32 30
IH150-125-400 / / / 50 45
IH200-150-250 / / / 400 20 37
IH200-150-315 / / / 32 55
IH200-150-400 / / / 50 90
