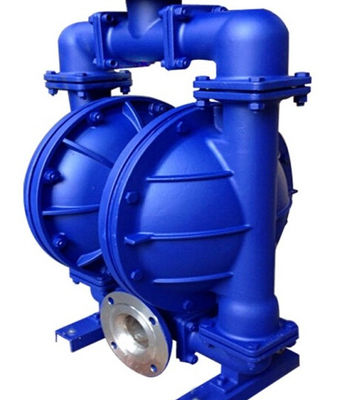

HT200 Electric Diaphragm Pump 8 Bar 3kgf/Cm2 Pressure Diaphragm Water Pump

HT200 Electric Diaphragm Pump 8 Bar 3kgf/Cm2 Pressure Diaphragm Water Pump

Brand Name: ZY
Model Number: DBY
MOQ: 1
Price: 300-1000
Payment Terms: TT
Supply Ability: 30UNIT/MONTH
Detail Information
Place of Origin:
QUZHOU,ZHEJIANG,CHINA
Certification:
ISO9001
Frequency:
50/60Hz
Material:
Stainless Steel
Max. Ambient Temperature:
Up To 40°C
Max. Flow Rate:
Up To 40 L/min
Max. Liquid Temperature:
Up To 80°C
Max. Pressure:
Up To 8 Bar
Name:
Electric Diaphragm Pump
Power:
Electric
Suction Lift:
Up To 9m
Voltage:
110/220V
Packaging Details:
PLAYWOOD FRO ELECTRIC DIAPHRAGM PUMP
Supply Ability:
30UNIT/MONTH
Highlight:

HT200 Electric Diaphragm Pump

,

Electric Diaphragm Pump 8 Bar

,

HT200 Diaphragm Water Pump

Product Description

DBY Electric Diaphragm Pump with HT200 Material and 3kgf/cm2 Pressure



Product overview

  DBY pneumatic diaphragm pump chemical pump is a new type of pump, in recent years, due to the membrane material has made breakthrough progress, more and more international industrialized countries using this type of pump, replacing parts of centrifugal pump, screw pump, shield pump, used in petrochemical, ceramics, metallurgy and other industries.Bade pump current production of diaphragm pump is divided into DBY electric and YGB hydraulic, pump material respectively using common HT200 and high quality stainless steel.Product design with reference to American ABEL company prototype DBY type diaphragm pump for low pressure, the outlet pressure of ≤ 3kgf / cm 2.

Product characteristics


 1.do not need irrigation, suction capacity of more than 7 meters.
2. good passing through performance, 10 mm in diameter following particle, slurry can be effortlessly through.
3. because the diaphragm will be transport medium and transmission machinery parts, so the medium will not leak to the outside.I am very happy, greatly prolong the service life of.According to the different medium, the diaphragm is divided into chloroprene rubber, fluorine rubber, Dingqing rubber, PTFE, can meet the requirements of different users.
In four, a pump body medium flows through parts, according to user requirements, divided into cast iron, stainless steel, rubber lining, the motor is divided into ordinary type and explosion-proof type (B3d) two, the series of pump is used in the following situations.
The variety of highly toxic, flammable, volatile liquid.
Effects of various acid, alkali, strong corrosive liquids.
The conveying of high temperature 150 ℃ medium.
As a variety of filter press in device to send the former class.
The hot water recovery and recycling.
The tanker, oil depot, oil loading and unloading.
The pump suction pickles, jams, mashed potatoes, chocolate.
The pump suction paint, resin, pigment binder.
Effects of various rubber, latex, filler paste, organic solvent.
The pumps for the oil tanker barge Warehouse Clearance absorb water and residual oil.
The hops and yeast slurry, syrup, precision.
The pump suction mine, tunnel, tunnel, sewers, sewage sludge.
The variety of special medium pumping.
The flow of Q:0.5 ~ 20m 3 / h
The head H:30m
Motor power: 0.55 ~ 5.5kw
The speed of N:1450r / min
