Single Stage Stainless Submersible Mixer Pump With Leak Sensor

2
MOQ
400-1500USD
Price
Single Stage Stainless Submersible Mixer Pump With Leak Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Jet Pump
Structure: Single-stage Pump
Usage: Water
Power: Electric
Standard Or Nonstandard: Standard
Fuel: Gasoline
Pressure: Low Pressure
Application: Submersible
High Light:

Stainless Submersible Mixer Pump

,

Single Stage Submersible Mixer Pump

,

Stainless submersible mixers sewage

Basic Infomation
Place of Origin: ZHEJIANG,CHINA
Brand Name: RTK
Model Number: QJB
Payment & Shipping Terms
Packaging Details: plywood FOR sumbersible mixer pump
Delivery Time: 7days
Payment Terms: TT
Supply Ability: 50UNIT/MONTH
Product Description

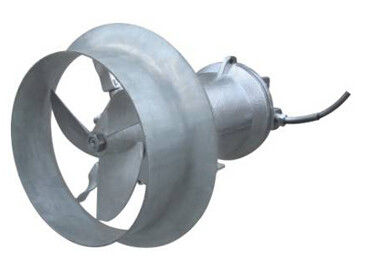

Submersible Mixer pump (Iron Cast,Stainless Steel,can with leak sensor)



Detailed Product Description

1..Two independent mechanical seals
2.High efficiency, self-cleaning function
3.High efficiency, self-cleaning function

 Product Overview
  QJBsubmersible mixer as a water treatment process is one of the key equipment in the water treatment process, the biochemical processes can be realized in solid-liquid two-phase flow and homogeneous solid-liquid-gas flow, the flow of process requirements. It consists of submersible motor, impeller and mounting system, etc.

 Applications

Stirring to create a flow for the month, to improve water quality, increase oxygen content in water, effectively prevent the deposition of suspended solids
Conditions of Use
In order to ensure the normal to make diving mixer, please select the correct working environment and operating mode
.
Maximum medium temperature does not exceed 40 degrees; and PH range: 5-9;
Medium density not exceeding 1150Kg / m 'diving deeper than 10m.
Mixer must be fully submerged underwater diving work, not flammable and corrosive and high temperature environments


Specific

Model Motor power
(kw)
Rated current
 (A)
rpm of
impeller(r/min)
Diameter
of impeller(mm)
Thrust
(N)
Weight
(KG)
QJB220/960-0.37/S  0.37 1.12 960 220 138 45/50
QJB220/1400-0.55/S  0.55 1.35 1400 220 145 45/50
QJB260/740-0.85/C/S  0.85 3.2 740 260 163 55/65
QJB260/960-1.5/C/S  1.5 4 960 260 290 55/65
QJB320/740-2.2/C/S  2.2 5.9 740 320 582 88/93
QJB320/960-4/C/S  4 10.3 960 320 609 88/93
QJB400/740-1.5/C/S  1.5 5.2 740 400 600 74/82
QJB400/740-2.5/C/S  2.5 7 740 400 800 74/82
QJB400/740-3/C/S  3 8.6 740 400 920 74/82
QJB400/960-4/C/S  4 10.3 960 400 1200 74/82
QJB620/480-4/S  4 14 480 620 1400 190/206
QJB620/480-5/S  5 18.2 480 620 1800 196/212
QJB620/480-7.5/S  7.5 28 480 620 2600 240/256
QJB620/480-10/S  10 32 480 620 3300 250/266
QJB560/740-11/S  11 25 740 560 2900 194/209
QJB560/740-15/S  15 34 740 560 3460 260/275
QJB740/740-18.5/S  18.5 41 740 740 4200 276/294
QJB740/740-22/S  22 47.4 740 740 5400 292/310
QJB620/480-5.5/S  5.5 11 480 620 1800 160/176
QJB620/480-7.5/S  7.5 15 480 620 2600 182/198
QJB620/480-11/S  11 22 480 620 3300 224/240
QJB740/235-15/S  15 30 235 740 3680 288/306
QJB890/326-18.5/S  18.5 36 326 890 4600 364/382
QJB890/326-22/S 22 42 326 890 5760 380/398
